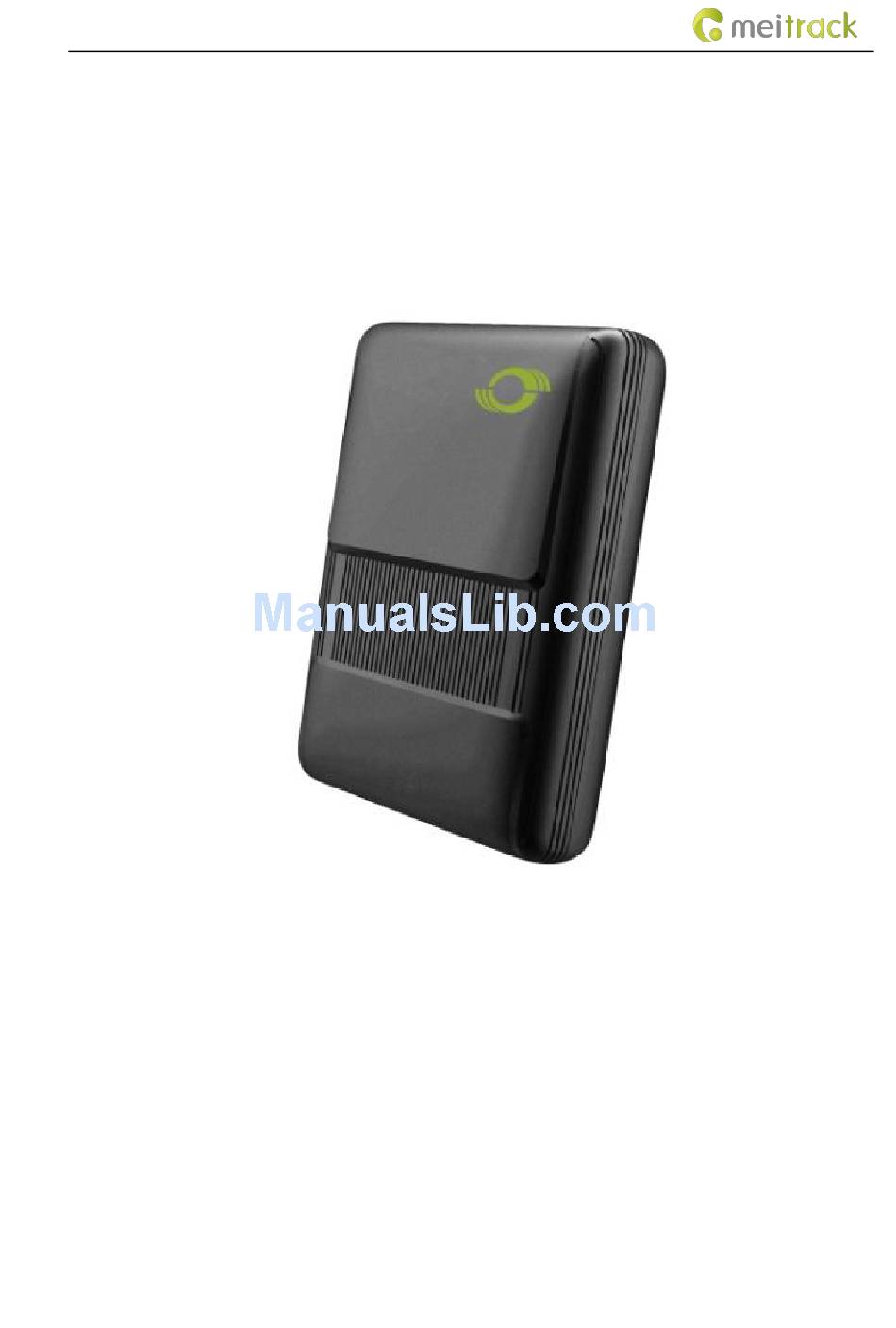

- Page 1 MEITRACK T322X User Guide MEITRACK T322X User Guide...
-
Page 2: Change History
Change History File Name MEITRACK T322X User Guide Created By Kyle Lv Creation Date 2014-06-04 Product T322X Update Date 2015-09-25 Subproject User Guide Total Pages Version V1.3 Confidential External Documentation Copyright © 2015 Meitrack Group All rights reserved. - 2 -... -
Page 3: Table Of Contents
3.3 Smart Sleep Mode ................................- 5 - 3.4 Data Compression Mode – CCC ............................- 6 - 3.5 Specifications ..................................- 6 - 4 T322X and Accessories ..................................- 7 - 5 Product View ....................................- 7 - 6 First Use ......................................- 8 - 6.1 Installing the SIM Card ................................- 8 -... -
Page 4: Copyright And Disclaimer
The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording. -
Page 5: Other Functions
3.2 Smart Voice Setting Dial the T322X SIM card number by using an authorized mobile phone number to set the smart voice function. After dialing, the following voice prompt is played: "Hello. Arming, press 1; disarming, press 2; query arming status, press 3; query a location, press 4;... -
Page 6: Data Compression Mode - Ccc
Device communicates through Meitrack protocol. The header and tail of a data packet stay unchanged, but the middle part of the data packet has been uploaded with CCC data compressed format. For details about the CCC data format, refer to T322X data analysis manual. -
Page 7: T322X And Accessories
SOS button USB cable Optional accessories: Buzzer GPS antenna Microphone Audio cable 5 Product View Microphone interface Power & functional cable interfaces Power/GSM/GPS GPS antenna interface USB port indicators Copyright © 2015 Meitrack Group All rights reserved. - 7 -... -
Page 8: First Use
Ensure that the phone card PIN lock has been closed properly. Ensure that the SIM card in the T322X has subscribed the caller ID service if you want to use your authorized phone number to call the tracker. ... -
Page 9: Led Indicator
Connect the T322X to an external power supply. Note: When the T322X is being charged with a USB cable or by external power supply, it will operate normally. To restart the T322X, just press and hold down the power button. -
Page 10: Tracking By Mobile Phone
Press 4 on the mobile phone according to the voice prompt. The device will reply an SMS with a map link. Click the SMS link. The location will be displayed on Google Maps on your mobile phone. Note: Ensure that the T322X SIM card number has subscribed the caller ID service. Otherwise, the caller ID will be blocked. SMS example: Now,110721 16:40,V,10,0Km/h,97%,http://maps.meigps.com/?lat=22.513015&lng=114.057235... -
Page 11: Common Sms Commands
When the SOS button is pressed, the tracker dials phone numbers 1, 2, and 3 in sequence. The tracker stops dialing when a phone number responds. If the call is not answered after phone number 3 is dialed, the dialing ends. Example: 0000,A71,13811111111,13822222222,13833333333 Reply: 353358017784062,A71,OK Copyright © 2015 Meitrack Group All rights reserved. - 11 -... -
Page 12: Setting Anti-Theft (Arming/Disarming)
Set by smart voice: Dial the T322X SIM card number by using an authorized mobile phone number to set the smart voice function. After dialing, the following voice prompt is played: "Hello. Arming, press 1; disarming, press 2; query arming status, press 3;... -
Page 13: Ms03 Tracking System
Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started"). -
Page 14: Port View
AD1/100 (External analog detection value) AD4/100 (AD4 is the built-in battery voltage by default.) AD5/100 (AD5 is the external power voltage by default.) 8.2.2 Port View Digital input 1 (SOS) Copyright © 2015 Meitrack Group All rights reserved. - 14 -... -
Page 15: Power Cable/Ground Wire
Connect the power cable (red) and ground wire (black) to the positive and negative electrodes of the vehicle battery respectively. 8.2.4 ACC and Door Detection Different models of cars may be triggered differently. Connect the door detection after a correct trigger mode is set for the tracker. Copyright © 2015 Meitrack Group All rights reserved. - 15 -... -
Page 16: Remote Power Cut-Off
The portable tracker can be connected to a cigarette lighter of the vehicle through an RS232 port by using a USB cable (5V input). If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2015 Meitrack Group All rights reserved.
