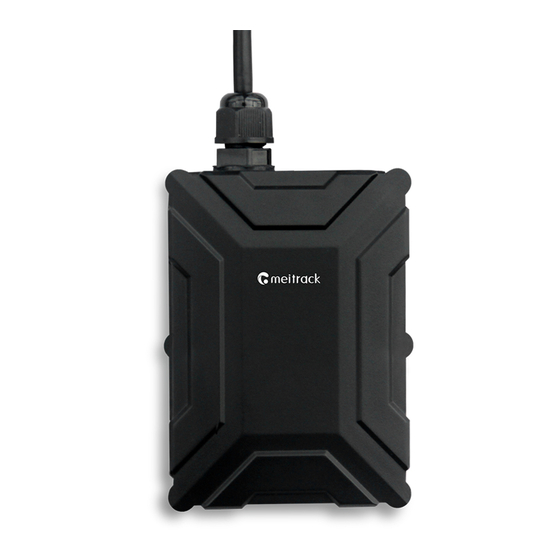

- Page 1 T399G-GFB5/T399L-GFB5 Tracker Step-By-Step Instruction T399G-GFB5/T399L-GFB5 Tracker Step-By-Step Instruction Copyright © Meitrack Group 2020. All rights reserved. - 1 -...
-
Page 2: Table Of Contents
2.5 Running Meitrack Manager..............................- 9 - 2.6 Configuring GPRS Parameters.............................- 9 - 2.7 Adding a Device to the MS03 Platform..........................- 13 - 2.8 Configuring Meitrack Manager App..........................- 14 - Copyright © Meitrack Group 2020. All rights reserved. - 2 -... -
Page 3: First Use
1 First Use 1.1 Overview This document is intended for customers who use the T399G-GFB5 or T399L-GFB5 for the first time, helping them configure and operate the device, understand the basic functions of the device, and test the device's Bluetooth function. -
Page 4: Main Device And Accessories
Input voltage: 11.4–90 V. 12 V or 24 V is recommended. 2 (GND) Black Ground wire. Connect to the negative charge of the vehicle battery or to the Copyright © Meitrack Group 2020. All rights reserved. - 4 -... -
Page 5: Testing The Device
Receive data through the RS232 port. 2 Testing the Device 2.1 Preparation Before the Test Hardware: T399G-GFB5/T399L-GFB5 tracker, USB cable, SIM card, L wrench, and Bluetooth temperature and humidity sensor Software: STM32 USB driver, Meitrack Manager, Meitrack Manager app (Android system supported), and MS03 tracking platform Copyright ©... -
Page 6: Operating The Device
A base station signal is received. Blink (1 second on and 2 seconds off) No base station signal is received. 4. Connect the device to a computer by using the USB cable. Copyright © Meitrack Group 2020. All rights reserved. - 6 -... -
Page 7: Installing The Usb Driver
4) After the installation is finished, connect the device to the computer through the USB cable. If STMicroelectronics Virtual COM Port (COM4) is displayed on the Device Manager page, the driver is installed successfully. Copyright © Meitrack Group 2020. All rights reserved. - 7 -... -
Page 8: Installing Meitrack Manager
1) Download the Meitrack Manager software. Visit http://67.203.13.28:9090/play/MMPlusSetup.rar, and download Meitrack Manager. 2) Unzip the downloaded installation package and double-click the MMSetup.exe file to install Meitrack Manager. 3) Install Meitrack Manager as prompted. Copyright © Meitrack Group 2020. All rights reserved. -
Page 9: Running Meitrack Manager
3) If Get device setting succeed! is displayed in the lower left corner of the window, Meitrack Manager is run successfully. Note: If Meitrack Manager fails to be run, check Step 2 and Step 3 or the COM port status while disabling other COM ports. - Page 10 Scanning mode: indicates the main device mode and used to detect nearby Bluetooth devices. If the ACC is triggered, the device is switched to broadcasting mode. If Meitrack Manager app fails to be connected within one minute, the device is switched to scanning mode.
- Page 11 Press and hold down the button on the side of the Bluetooth beacon for three seconds. Then the blue LED indicator is on for five seconds, which means the Bluetooth beacon is powered on and starts to search information. Copyright © Meitrack Group 2020. All rights reserved. - 11 -...
- Page 12 T399G-GFB5/T399L-GFB5 Tracker Step-By-Step Instruction Note: If the MAC code of the Bluetooth beacon fails to be found, set it by Meitrack Manager app. 5) Set Bluetooth temperature and humidity sensor parameters. Alarm when signal lost for(secs): If the Bluetooth temperature and humidity sensor fails to be detected within a specified period, an alert is generated.
-
Page 13: Adding A Device To The Ms03 Platform
T399G-GFB5/T399L-GFB5 Tracker Step-By-Step Instruction Note: If the MAC code of the Bluetooth temperature and humidity sensor fails to be found, set it by Meitrack Manager app. 2.7 Adding a Device to the MS03 Platform The device is configured and started successfully by performing the preceding steps. In this section, we will describe how to add a device to the MS03 tracking platform. -
Page 14: Configuring Meitrack Manager App
2.8 Configuring Meitrack Manager App 1) Start Meitrack Manager app and detect a tracker. After a tracker is detected, select one and click Confirm. Then the device configuration page is displayed. If a tracker fails to be detected, connect the white cable of the device to the power cable (12–36 V) and the analog device to ACC ignition cable. - Page 15 3) Set Bluetooth beacon parameters. Select iBeacon to search nearby Bluetooth beacons. Then set Bluetooth beacon parameters as required, as shown in the following figures. Copyright © Meitrack Group 2020. All rights reserved. - 15 -...
- Page 16 T399G-GFB5/T399L-GFB5 Tracker Step-By-Step Instruction Copyright © Meitrack Group 2020. All rights reserved. - 16 -...
