Summary of Contents for MeiTrack T366L

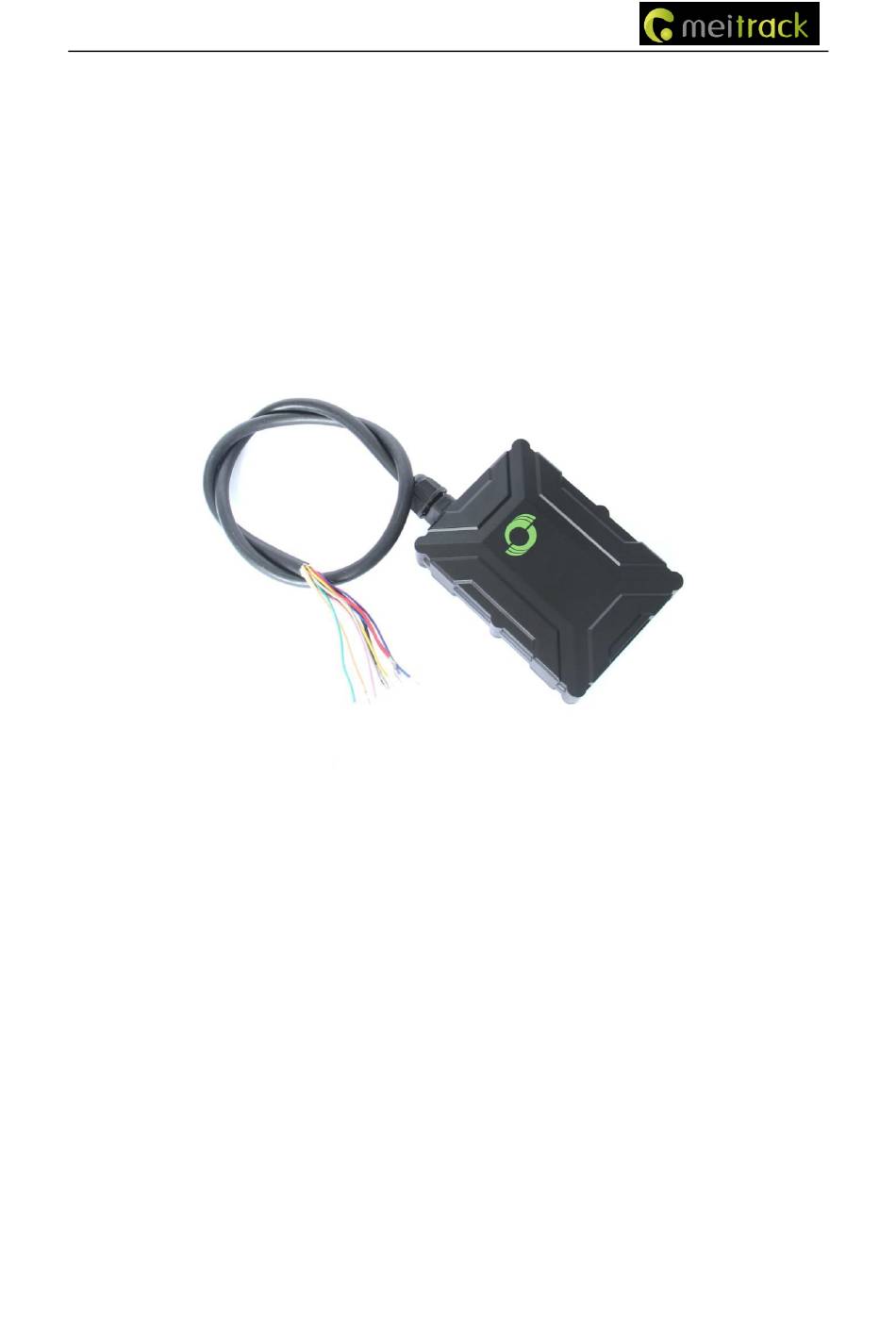

  • Page 1 MEITRACK T366L User Guide MEITRACK T366L User Guide...
  • Page 2 MEITRACK T366L User Guide Project T366L Creation Date 20180509 Update Date 20200313 Hardware Version Software Version T366L_V066 or later Subproject User Guide Total Pages Version V1.1 Confidential External Documentation Copyright © 2020 Meitrack Group All rights reserved. - 2 -...
  • Page 3: Table Of Contents

    6.3 Device Configuration ..........................- 11 - 6.3.1 Installing the USB Driver ........................- 11 - 6.3.2 Configuring Device Parameters by Meitrack Manager ............... - 12 - 6.4 Tracking by Mobile Phone ........................... - 12 - 6.5 Common SMS Commands .......................... - 14 - 6.5.1 Real-Time Location Query –...
  • Page 4: Copyright And Disclaimer

    The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording.
  • Page 5: Gps Data Filtering

    Note: The alert results vary according to the device installation, vehicle model, vehicle weight, and driving behaviors. After the device has been installed properly, you can use the Meitrack Manager software to adjust the harsh acceleration and braking alert values by every 10 mG. You can also use the D79 command to set the values.
  • Page 6: Auto Arming

    For details, see section 6.5.6 "Setting I/O Port Status – C08." 2.1.6 Auto Arming You can enable the auto arming function by B27 command, Meitrack Manager software or MS03 tracking platform. This function is disabled by default. When the device is in sleep mode and the function has been enabled, the device will enter auto arming state.
  • Page 7: Starting The Engine By Rfid/Ibutton

    An iButton key or RFID card has been authorized. The tracker's output 1 is connected to the engine control cable through a relay. The RFID ignition function has been enabled by Meitrack Manager or MS03 tracking platform. The RFID event has been enabled on Meitrack Manager.
  • Page 8: Functions Of Optional Accessories

    3-axis accelerometer (used to wake the device up by vibration and detect towing alerts, harsh acceleration alerts, and harsh braking alerts) Frequency band T366L-E: LTE FDD:B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM/GPRS: B3/B8 T366L-A: LTE FDD:B2/B4/B12 WCDMA: B2/B4/B5 T366L-AU: LTE FDD:B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD:B40 Copyright © 2020 Meitrack Group All rights reserved. - 8 -...
  • Page 9: T366L And Accessories

    1 output (voltage: 5V) 1 RS232 port (T366L RS232 version): GND/TX/RX 4 T366L and Accessories T366L and standard accessories: ⚫ T366L tracker (with a cable of 50 cm in length) ⚫ 400 mAh battery (-20°C to 60°C) ⚫ L wrench ⚫...
  • Page 10: Appearance

    MEITRACK T366L User Guide LED display Connect to the RS232 port (T366L RS232 version) RFID Connect to the RS232 port (T366L RS232 version) 5 Appearance Power button Firmware upgrade button SIM card slot USB port GSM indicator GPS indicator 6 First Use 6.1 Installing the SIM Card...
  • Page 11: Led Indicator

    6.3 Device Configuration 6.3.1 Installing the USB Driver Decompress the stsw-stm32102.zip file provided by Meitrack, locate the following file, and install the USB driver on a computer with 64-bit Windows system. After the installation is finished, connect the tracker to the computer by USB cable. If STMicroelectronics Virtual COM Port (COM5) is displayed on the Computer Management page, the driver is installed successfully.
  • Page 12: Configuring Device Parameters By Meitrack Manager

    Connect the device to a computer by using the USB cable. Run Meitrack Manager, then the following dialog box will appear: Turn on the device, then Meitrack Manager will detect the device model automatically and the parameter page will appear accordingly.
  • Page 13 Indicates the map link. None om/?lat=22.513781&l Latitude: 22.513781 ng=114.057183 Longitude: 114.057183 If your mobile phone does not support HTTP, enter the latitude and longitude on Google Maps to query a location. Copyright © 2020 Meitrack Group All rights reserved. - 13 -...
  • Page 14: Common Sms Commands

    Reply: 353358017784062,A71,OK 6.5.3 Setting the Smart Sleep Mode – A73 SMS sending: 0000,A73,Sleep level SMS reply: IMEI,A73,OK Description: When the sleep level is 0, the sleep mode is disabled (default). Copyright © 2020 Meitrack Group All rights reserved. - 14 -...
  • Page 15: Setting The Idling Alert - B14

    For details about SMS commands, see the MEITRACK SMS Protocol. Note: 1. The default SMS command password is 0000. You can change the password by using Meitrack Manager and SMS command. 2. The device can be configured by SMS command with a correct password. After an authorized phone number is set, only the authorized phone number can receive the preset SMS event report.
  • Page 16: Setting I/O Port Status - C08

    IO1: Mn parameter value is 0, 4, 5, 7, or 8. IO2: Mn parameter value is 0, 1, or 2. IO3: Mn parameter value is 0, 1, or 2. IO4: Mn parameter value is 0, 1, 2, or 3. Copyright © 2020 Meitrack Group All rights reserved. - 16 -...
  • Page 17: Logging In To Ms03 Tracking System

    Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started").
  • Page 18 The port can be set to negative input 4 or output 2 open collector. 8 (5 V output cable) Pink 5 V output It can be connected to the power supply of a temperature sensor. Copyright © 2020 Meitrack Group All rights reserved. - 18 -...
  • Page 19: Wiring Diagram

    MEITRACK T366L User Guide The I/O cable of T366L RS232 version is an 11-pin cable. Besides the above 8 pins, there are the following 3 pins. RS232-Tx RS232-Rx Pin Number Color Description 9 (GND) Black Ground wire 10(RS232-Tx) Purple The device sends data through RS232 port.
  • Page 20 Connect the remote control receiver's yellow cable to 5 V power supply and code matching cable (purple) to GND for more than 2 seconds. Press any key of the remote control, and then press any key of the other remote control. Copyright © 2020 Meitrack Group All rights reserved. - 20 -...
  • Page 21: Mounting The T366L

    Mount the device in the vehicle by cable tie. Note: Do not install it at a metal covered place. If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2020 Meitrack Group All rights reserved.
