Summary of Contents for MeiTrack T366G

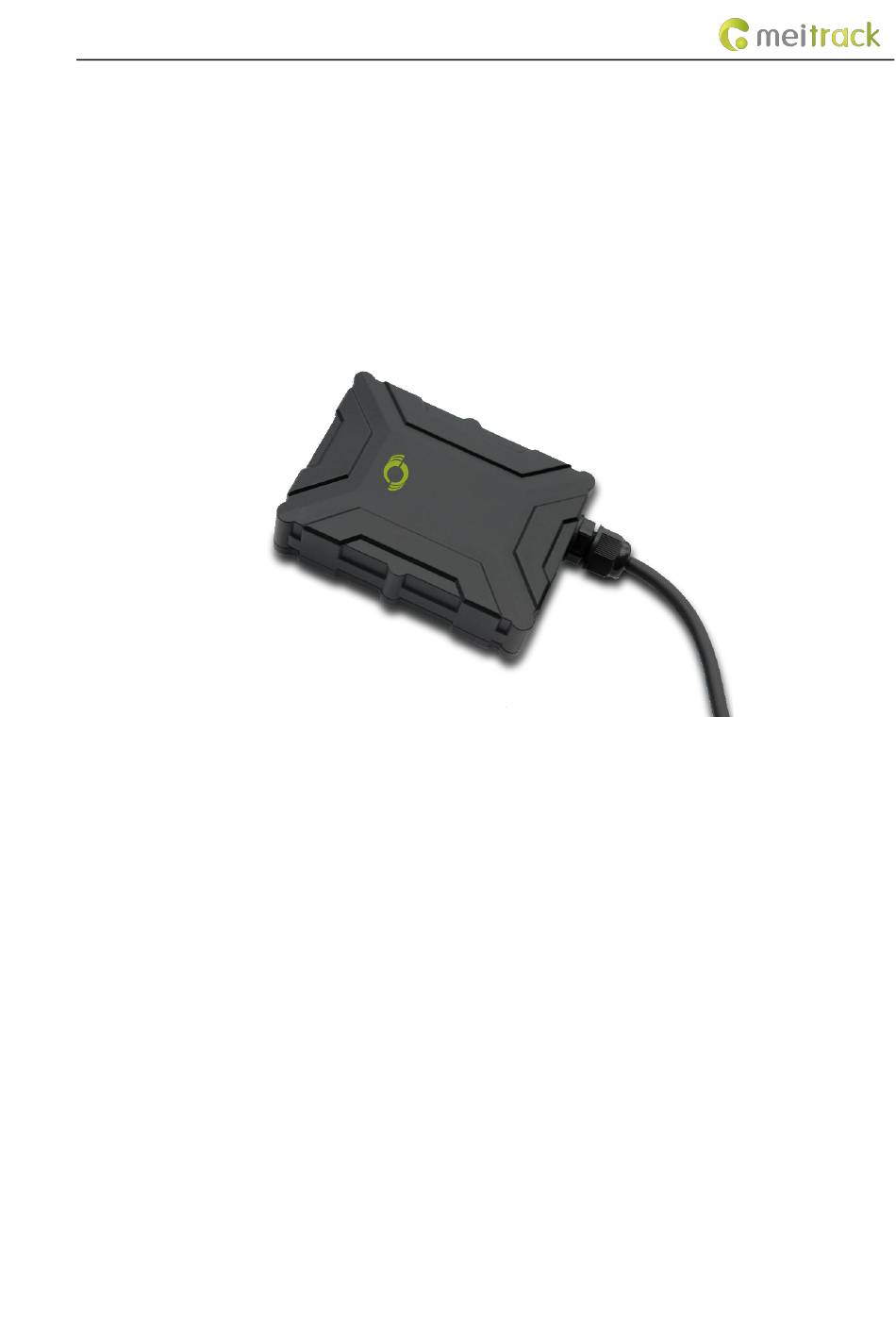

  • Page 1 MEITRACK T366G User Guide MEITRACK T366G User Guide...
  • Page 2 Change History File Name MEITRACK T366G User Guide Created By William Sun Creation Date 2016-07-15 Project T366G Update Date 2016-08-09 Subproject User Guide Total Pages Version V1.0 Confidential External Documentation Copyright © 2016 Meitrack Group All rights reserved. - 2 -...

  • Page 3: Table Of Contents

    6.2 LED Indicator ..................................- 9 - 6.3 Device Configuration ................................- 9 - 6.3.1 Installing the USB Driver ............................- 9 - 6.3.2 Configuring Device Parameters by Meitrack Manager ...................- 10 - 6.4 Tracking by Mobile Phone ..............................- 10 - 6.5 Common SMS Commands ..............................- 12 - 6.5.1 Real-Time Location Query –...

  • Page 4: Copyright And Disclaimer

    2 Product Overview The T366G is a vehicle GPS tracker with IP67 water-resistance rating and can be installed into cars, motorcycles, yachts, and boats. It is equipped with built-in GPS and GSM antennas. The unit can work well in extreme environments.

  • Page 5: Activating Output By Event

    MEITRACK T366G User Guide You can set the following parameters by Meitrack Manager: GPS speed range, GPS positioning accuracy, and Number of GPS satellites. When the GPS data filtering function is enabled, if all conditions are met, GPS data will be updated.

  • Page 6: Functions Of Optional Accessories

    1 upgrade button (used to manually upgrade the firmware) 1 power button Memory 8 MB buffer Sensor 3D acceleration sensor (for wake-up by vibration and towing alarms) Frequency band T366G-E: UMTS/HSDPA: 900/2100 MHz GSM/GPRS: 900/1800 MHz T366G-A: Copyright © 2016 Meitrack Group All rights reserved. - 6 -...

  • Page 7: T366G And Accessories

    T366G and standard accessories: T366G (without an external GPS antenna) T366G (with an external GPS antenna) USB cable L wrench Optional accessories: iButton A53 fuel sensor A52 digital temperature sensor Battery Copyright © 2016 Meitrack Group All rights reserved. - 7 -...

  • Page 8: Device Panel

    Ensure that the phone card PIN lock has been closed properly.  Ensure that the SIM card in the device has subscribed the caller ID service if you want to use your authorized phone number to call the device. Copyright © 2016 Meitrack Group All rights reserved. - 8 -...

  • Page 9: Led Indicator

    After the installation is finished, connect the tracker to the computer by USB cable. If STMicroelectronics Virtual COM Port (COM5) is displayed on the Computer Management page, the driver is installed successfully. Note: Please power on the tracker and then connect the tracker to the computer by USB cable. Otherwise, Meitrack Manager will be unavailable.

  • Page 10: Configuring Device Parameters By Meitrack Manager

    Connect the device to a computer by using the USB-to-serial cable. Run Meitrack Manager, then the following dialog box will appear: Turn on the device, then Meitrack Manager will detect the device model automatically and the parameter page will appear accordingly.
  • Page 11 Indicates the map link. None m/?lat=22.513781&lng Latitude: 22.513781 =114.057183 Longitude: 114.057183 If your mobile phone does not support HTTP, enter the latitude and longitude on Google Maps to query a location. Copyright © 2016 Meitrack Group All rights reserved. - 11 -...

  • Page 12: Common Sms Commands

    Reply: 353358017784062,A71,OK 6.5.3 Setting the Smart Sleep Mode – A73 SMS sending: 0000,A73,Sleep level SMS reply: IMEI,A73,OK Description: When the sleep level is 0, the sleep mode is disabled (default). Copyright © 2016 Meitrack Group All rights reserved. - 12 -...

  • Page 13: Logging In To Ms03 Tracking System

    Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started").
  • Page 14 Connect to an external relay to remotely cut off the vehicle fuel cable or engine power supply. 7 (1-wire interface) Green Connect to the iButton and other devices supporting 1-wire protocol. Copyright © 2016 Meitrack Group All rights reserved. - 14 -...

  • Page 15: Wiring Diagram

    Mount the device in the vehicle by cable tie. Note: Do not install it at a metal covered place. If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2016 Meitrack Group All rights reserved.
