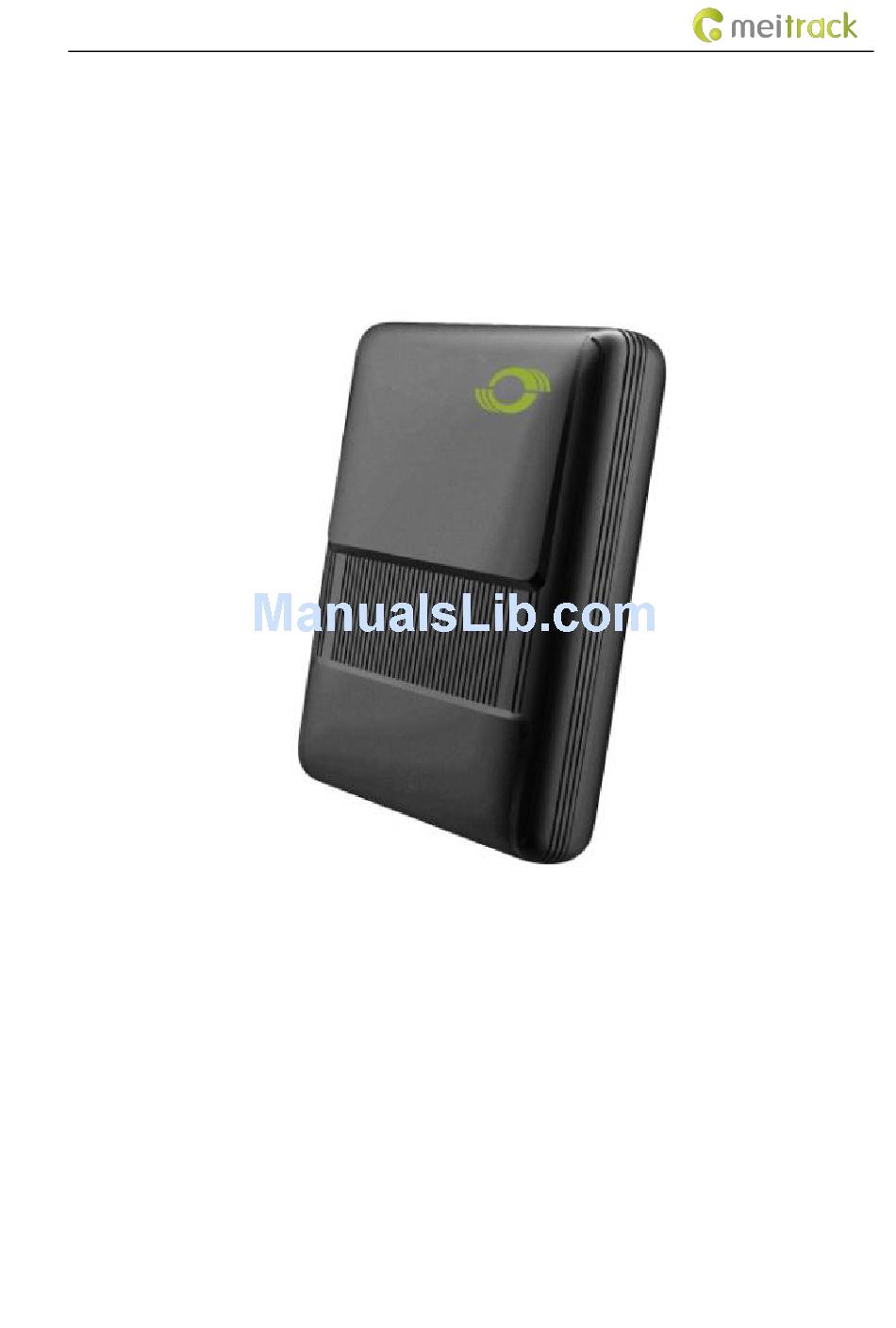

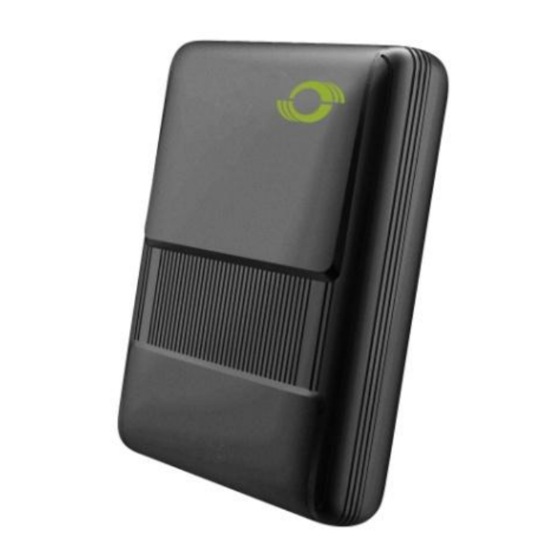

- Page 1 MEITRACK T322X User Guide MEITRACK T322X User Guide...
-
Page 2: Change History
Change History File Name MEITRACK T322X User Guide Created By Kyle Lv Product T322X Creation Date 2014-06-04 Update Date 2016-12-12 Subproject User Guide Total Pages Version V1.3 Confidential External Documentation Copyright © 2016 Meitrack Group All rights reserved. - 2 -... -
Page 3: Table Of Contents
6 First Use ......................................- 8 - 6.1 Installing the SIM Card ................................- 8 - 6.2 LED Indicator ..................................- 9 - 6.3 Configuring Device Parameters by Meitrack Manager .......................- 9 - 6.4 Tracking by Mobile Phone ..............................- 10 - 6.5 Common SMS Commands ..............................- 11 - 6.5.1 Setting Authorized Phone Numbers........................- 11 -... -
Page 4: Copyright And Disclaimer
The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording. -
Page 5: Other Functions
When the device is being charged with a USB cable, it will operate normally, but will not enter smart sleep mode. Under smart sleep, the device has low power consumption. The device with built-in battery can sustain up to about 50 hours. Copyright © 2016 Meitrack Group All rights reserved. - 5 -... -
Page 6: Data Compression Mode - Ccc
MEITRACK T322X User Guide 3.4 Data Compression Mode – CCC Device communicates through Meitrack protocol. The header and tail of a data packet stay unchanged, but the middle part of the data packet has been uploaded with CCC data compressed format. -
Page 7: T322X And Accessories
I/O cable SOS button USB cable Optional accessories: Buzzer GPS antenna Microphone Audio cable 5 Product View Microphone Power & functional cable interfaces Power/GSM/GPS GPS antenna interface USB port indicators Copyright © 2016 Meitrack Group All rights reserved. - 7 -... -
Page 8: First Use
Ensure that the phone card PIN lock has been closed properly. Ensure that the SIM card in the device has subscribed the caller ID service if you want to use your authorized phone number to call the device. Copyright © 2016 Meitrack Group All rights reserved. - 8 -... -
Page 9: Led Indicator
Blink (1 second on and 2 seconds off) The device power is low. 6.3 Configuring Device Parameters by Meitrack Manager This section describes how to use Meitrack Manager to configure the device on a computer. Procedure: Install the USB-to-serial cable driver and Meitrack Manager. -
Page 10: Tracking By Mobile Phone
MEITRACK T322X User Guide Run Meitrack Manager, then the following dialog box will appear: Turn on the device, then Meitrack Manager will detect the device model automatically and the parameter page will appear accordingly. For details about Meitrack Manager, see the MEITRACK Manager User Guide. -
Page 11: Common Sms Commands
When the SOS button is pressed, the device dials phone numbers 1, 2, and 3 in sequence. The device stops dialing when a phone number responds. If the call is not answered after phone number 3 is dialed, the dialing ends. Example: Copyright © 2016 Meitrack Group All rights reserved. - 11 -... -
Page 12: Setting Anti-Theft (Arming/Disarming)
For details about SMS commands, see the MEITRACK SMS Protocol. Note: The default SMS command password is 0000. You can change the password by using Meitrack Manager and SMS command. The device can be configured by SMS commands with a correct password. After an authorized phone number is set, only the authorized phone number can receive the preset SMS event report. -
Page 13: Logging In To Ms03 Tracking System
Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started"). -
Page 14: Port View
AD1/100 (External analog detection value) AD4/100 (AD4 is the built-in battery voltage by default.) AD5/100 (AD5 is the external power voltage by default.) 8.2.2 Port View Digital input 1 (SOS) Copyright © 2016 Meitrack Group All rights reserved. - 14 -... -
Page 15: Power Cable/Ground Wire
Connect the power cable (red) and ground wire (black) to the positive and negative electrodes of the vehicle battery respectively. 8.2.4 ACC and Door Detection Connect the door detection after a correct trigger mode is set for the tracker. Copyright © 2016 Meitrack Group All rights reserved. - 15 -... -
Page 16: Remote Power Cut-Off
The portable tracker can be connected to a cigarette lighter of the vehicle through an RS232 port by using a USB cable (5V input). If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2016 Meitrack Group All rights reserved.
