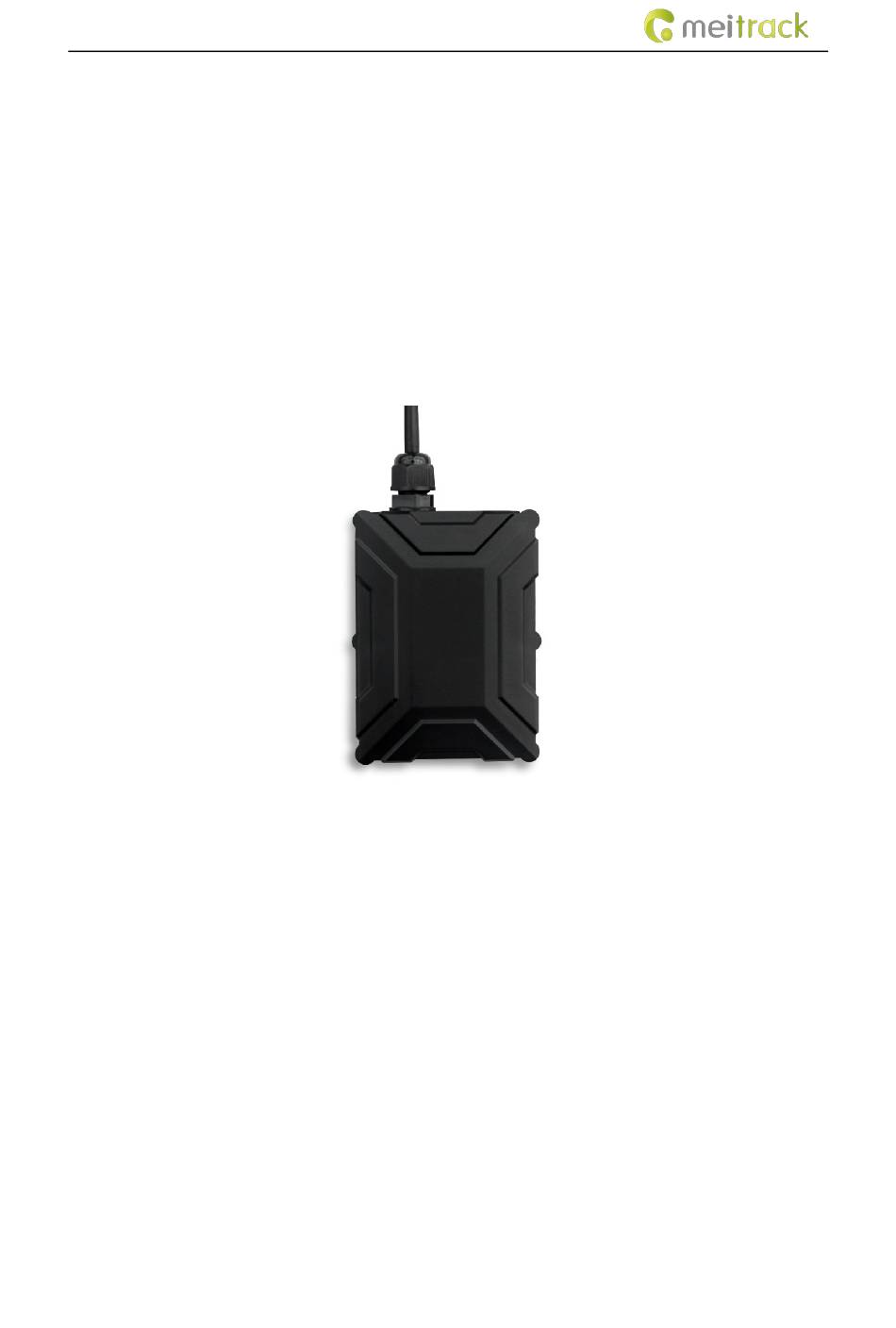

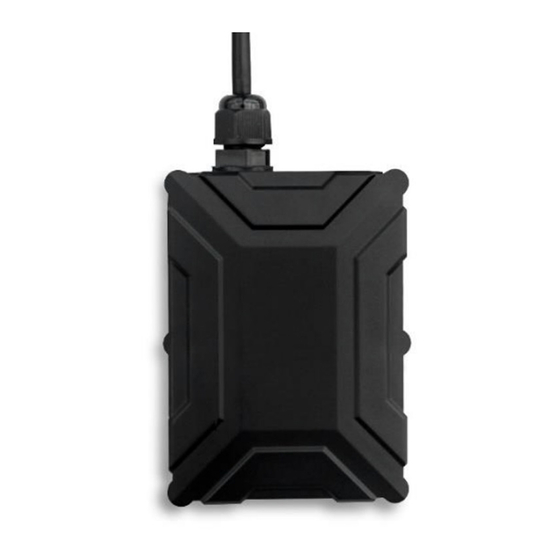

- Page 1 MEITRACK T399G Vehicle Tracker User Guide MEITRACK T399G Vehicle Tracker User Guide...
- Page 2 File Name MEITRACK T399G Vehicle Tracker User Guide Project T399G Creation Date 2018-11-21 Hardware Version H101 Software Version T399G_H101V005_E Subproject User Guide Total Pages Version V1.0 Confidential External Documentation Copyright © 2018 Meitrack Group All rights reserved. - 2 -...
-
Page 3: Table Of Contents
6.3 Device Configuration ..........................- 13 - 6.3.1 Installing the USB Driver ........................- 13 - 6.3.2 Configuring Device Parameters by Meitrack Manager ............... - 14 - 6.3.3 Binding the K211G ..........................- 15 - 6.3.4 Unbinding the K211G ......................... - 15 - 6.4 Tracking by Mobile Phone ........................... - Page 4 MEITRACK T399G Vehicle Tracker User Guide 8.1.3 Setting Code Matching of the RF Remote Control ................- 23 - 8.2 Mounting the T399G........................... - 24 - Copyright © 2018 Meitrack Group All rights reserved. - 4 -...
-
Page 5: Copyright And Disclaimer
2 Product Introduction The T399G is a multi-purpose vehicle tracker. It not only can be used for tracking and positioning, but also used for K211G GPS smart lock management. It has an ability to monitor and record K211G status in real time, and to systematically manage the connection status, battery power and alerts of the K211G. -
Page 6: K211G Status Monitoring
You can detect the harsh acceleration/braking alert by setting the limit value. Cautions on device installation: The device should be installed into the vehicle according to the following direction. Copyright © 2018 Meitrack Group All rights reserved. - 6 -... -
Page 7: Gps Data Filtering
Note: The alert results vary according to the device installation, vehicle model, vehicle weight, and driving behaviors. After the device has been installed properly, you can use the Meitrack Manager software to adjust the harsh acceleration and braking alert values by every 10 mG. You can also use the D79 command to set the values. -
Page 8: Idling Detection
For details, see section 6.5.5 "Setting I/O Port Status – C08." 2.1.8 Auto Arming You can enable the auto arming function by B27 command, Meitrack Manager software or MS03 tracking platform. This function is disabled by default. When the device is in sleep mode and the function has been enabled, the device will enter auto arming state. -
Page 9: Starting The Engine By Rfid/Ibutton
An iButton key or RFID card has been authorized. The tracker's output 1 is connected to the engine control cable through a relay. The RFID ignition function has been enabled by Meitrack Manager or MS03 tracking platform. The RFID event has been enabled on Meitrack Manager. -
Page 10: Other Functions
5% to 95% LED indicator Green indicator showing the GSM signal Blue indicator showing the GPS signal Button/Switch 1 upgrade button (used to manually upgrade the firmware) 1 power button Copyright © 2018 Meitrack Group All rights reserved. - 10 -... -
Page 11: T399G And Accessories
1 output 1 USB port 1 1-wire interface (set to an output or a negative input) 1 output (voltage: 5V) 1 RS232 port (T399G RS232 version): GND/TX/RX 4 T399G and Accessories Optional accessories: Optional Accessory Description Relay (12 V/24 V) Connect to output 1. -
Page 12: Appearance
Available for the device with an external antenna connector (two hardware versions available: internal or external antenna) Ultrasonic fuel level sensor Connect to the RS232 port (T399G RS232 version) LED display Connect to the RS232 port (T399G RS232 version) RFID... -
Page 13: Led Indicator
6.3 Device Configuration 6.3.1 Installing the USB Driver Decompress the stsw-stm32102.zip file provided by Meitrack, locate the following file, and install the USB driver on a computer with 64-bit Windows system. After the installation is finished, connect the tracker to the computer by USB cable. If STMicroelectronics Virtual COM Port (COM5) is displayed on the Computer Management page, the driver is installed successfully. -
Page 14: Configuring Device Parameters By Meitrack Manager
C:/windows/system32/drivers/ directory. Then restart the computer. 6.3.2 Configuring Device Parameters by Meitrack Manager This section describes how to use Meitrack Manager to configure the device on a computer. Operation steps: Install the USB driver and Meitrack Manager. -
Page 15: Binding The K211G
6.3.3 Binding the K211G To make the T399G and K211G communicate with each other via LoRa, bind the two devices. After the binding is successful, the T399G can communicate with multiple K211G devices, and will upload lock status information and alerts of multiple K211G devices to the server. -
Page 16: Tracking By Mobile Phone
Indicates the map link. None om/?lat=22.513781&l Latitude: 22.513781 ng=114.057183 Longitude: 114.057183 If your mobile phone does not support HTTP, enter the latitude and longitude on Google Maps to query a location. Copyright © 2018 Meitrack Group All rights reserved. - 16 -... -
Page 17: Common Sms Commands
Reply: 353358017784062,A71,OK 6.5.3 Setting the Smart Sleep Mode – A73 SMS sending: 0000,A73,Sleep level SMS reply: IMEI,A73,OK Description: When the sleep level is 0, the sleep mode is disabled (default). Copyright © 2018 Meitrack Group All rights reserved. - 17 -... -
Page 18: Controlling Output Status - C01
IO4: AD input 1 by default (blue cable) Mn indicates the I/O port status. The parameter value is as follows: 0: low trigger 1: high trigger 2: AD input 3: Remote control input 4: open collector Copyright © 2018 Meitrack Group All rights reserved. - 18 -... -
Page 19: Setting Idling Time - D34
For details about SMS commands, see the MEITRACK SMS Protocol. Note: The default SMS command password is 0000. You can change the password by using Meitrack Manager and SMS command. The device can be configured by SMS command with a correct password. After an authorized phone number is set, only the authorized phone number can receive the preset SMS event report. -
Page 20: Ms03 Tracking System
Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started"). -
Page 21: Wiring Diagram
Pink 5 V output It can be connected to the power supply of a temperature sensor. The I/O cable of T399G RS232 version is an 11-pin cable. Besides the above 8 pins, there are the following 3 pins. RS232-Tx RS232-Rx... - Page 22 MEITRACK T399G Vehicle Tracker User Guide T399G RS232 version: Copyright © 2018 Meitrack Group All rights reserved. - 22 -...
- Page 23 (event 58) will be generated by SMS or GPRS and the device will dial the authorized phone numbers in sequence. Copyright © 2018 Meitrack Group All rights reserved. - 23 -...
- Page 24 Mount the device in the vehicle by cable tie. Note: Do not install it at a metal covered place. If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2018 Meitrack Group All rights reserved.
