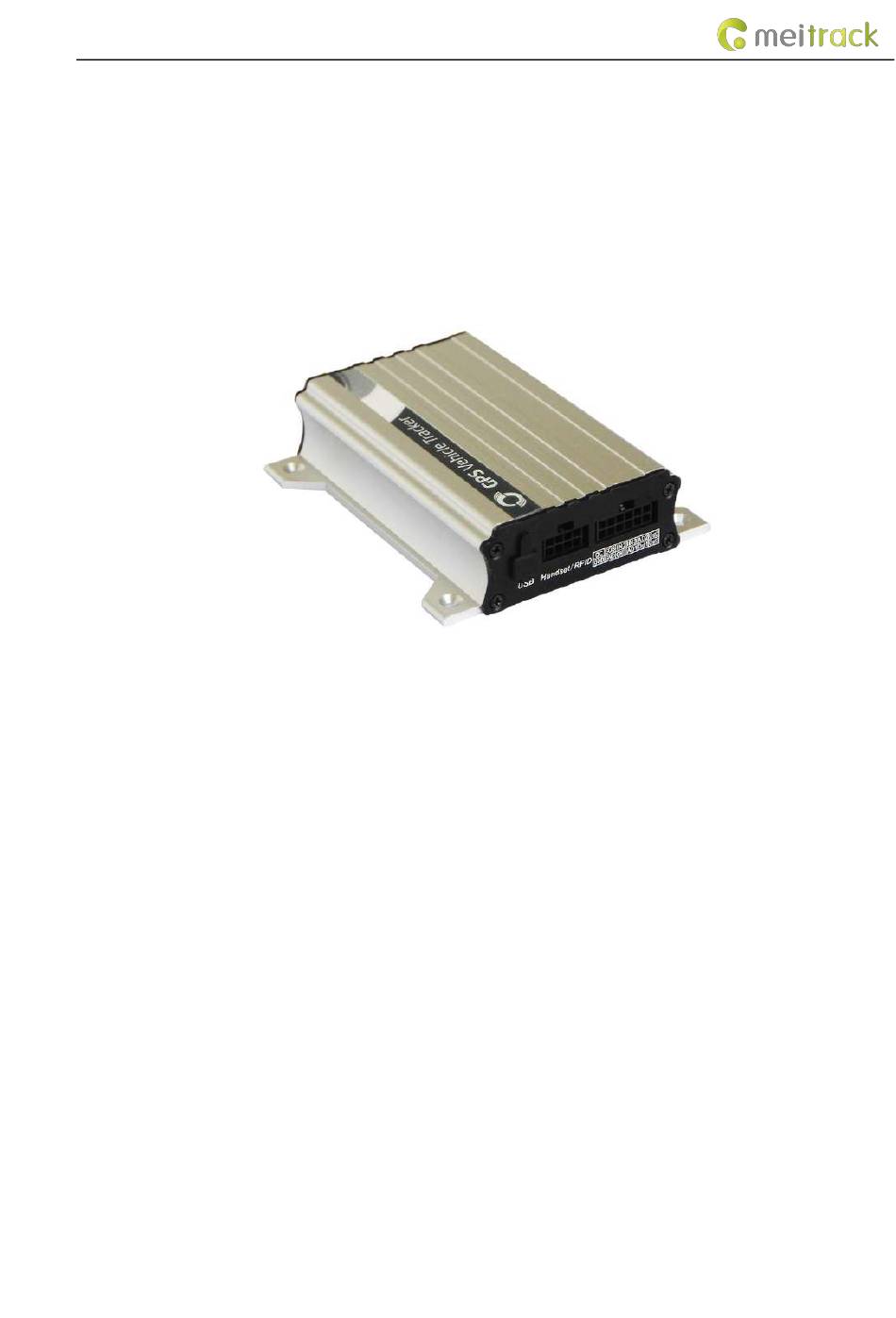

- Page 1 MEITRACK T333 User Guide MEITRACK T333 User Guide...
- Page 2 Change History File Name MEITRACK T333 User Guide Created By Owen Cheng Creation Date 2014-06-10 Project T333 Update Date 2015-09-25 Subproject User Guide Total Pages Version V1.3 Confidential External Documentation Copyright © 2015 Meitrack Group All rights reserved. - 2 -...
-
Page 3: Table Of Contents
3.1.3 Other Functions ...............................- 5 - 3.1.4 Functions of Optional Accessories ...........................- 5 - 3.2 Specifications ..................................- 5 - 4 T333 and Accessories ..................................- 6 - 5 Appearance....................................- 7 - 6 First Use ......................................- 7 - 6.1 Installing the SIM Card ................................- 7 - 6.2 Charging ....................................- 8 -... -
Page 4: Copyright And Disclaimer
The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording. -
Page 5: Other Functions
1 SOS button (for sending SMSs or dialing) Button/Switch 1 power button Memory 8 MB byte Sensor 3D acceleration sensor (for wake-up by vibration and towing alarms) T333-E: Frequency band UMTS/HSDPA: 900/2100 MHz Copyright © 2015 Meitrack Group All rights reserved. - 5 -... -
Page 6: T333 And Accessories
USB cable Optional accessories: Camera RFID reader A21 LCD display (dialing and SMS display) A53 fuel sensor Handset A52 digital temperature sensor + LED display iButton A61 sensor box Copyright © 2015 Meitrack Group All rights reserved. - 6 -... -
Page 7: Appearance
Ensure that the phone card PIN lock has been closed properly. Ensure that the SIM card in the T333 has subscribed the caller ID service if you want to use your authorized phone number to call the T333. ... -
Page 8: Charging
6.2 Charging When you use the T333 for the first time, connect the T333 GND (-Black) and Power (+Red) wires to 12 V or 24 V external power supply for charging. Ensure that the T333 is charged at least three hours. Eight hours are recommended. -
Page 9: Tracking By Mobile Phone
6.5 Tracking by Mobile Phone Call or send the 0000,A00 command by SMS to the T333 SIM card number. The device will reply an SMS with a map link. Click the SMS link. The location will be displayed on Google Maps on your mobile phone. -
Page 10: Common Sms Commands
If no phone numbers are set and commas are remained, phone numbers set before will be deleted. If all phone numbers need to be deleted, send 0000,A72. Example: 0000,A72,13844444444,13855555555 Reply: 353358017784062,A72,OK Copyright © 2015 Meitrack Group All rights reserved. - 10 -... -
Page 11: Setting The Smart Sleep Mode - A73
Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started"). -
Page 12: Installing The T333
Connect to a door trigger signal cable to detect vehicle door status. (Most Chinese, Korean, and Japanese cars are negative edge-triggered.) Ground wire 6 (GND) Black It can be used as a ground wire connected to an analog sensor. Copyright © 2015 Meitrack Group All rights reserved. - 12 -... -
Page 13: Power Cable/Ground Wire (Pin 1/2)
8.2.1 Power Cable/Ground Wire (Pin 1/2) Connect the power cable (red) and ground wire (black) to the positive and negative charges of the vehicle battery respectively. Copyright © 2015 Meitrack Group All rights reserved. - 13 -... -
Page 14: Acc And Door Detection (Pin 5/7)
Pin 10 is connected to the A53 fuel sensor by default. You can install the sensor without calculation formula added on the platform. For details, see the A53 Fuel Sensor User Guide. Pin 12 is connected to A61+A52 temperature sensor or iButton by default. For details, see the Meitrack Temperature Sensor User Guide and Meitrack iButton User Guide. -
Page 15: Installing The Handset (Rs232 Port)
MEITRACK T333 User Guide The white plug on the T333 harness consists of the power cable (red), ground wire (black), AD2 cable (blue), and SEN cable (blue). The T333 can connect to a maximum of two A61 sensor boxes. You can install a maximum of eight A52 temperature sensor ports. -
Page 16: Installing The Camera (Rs232 Port)
Green RX, T333 receives data from the camera. White TX, T333 sends data to the camera, Pin 8 connects to the T333, and pin 4 connects to the camera. Connect pin 8 to the Connect pin 4 to the T333.
