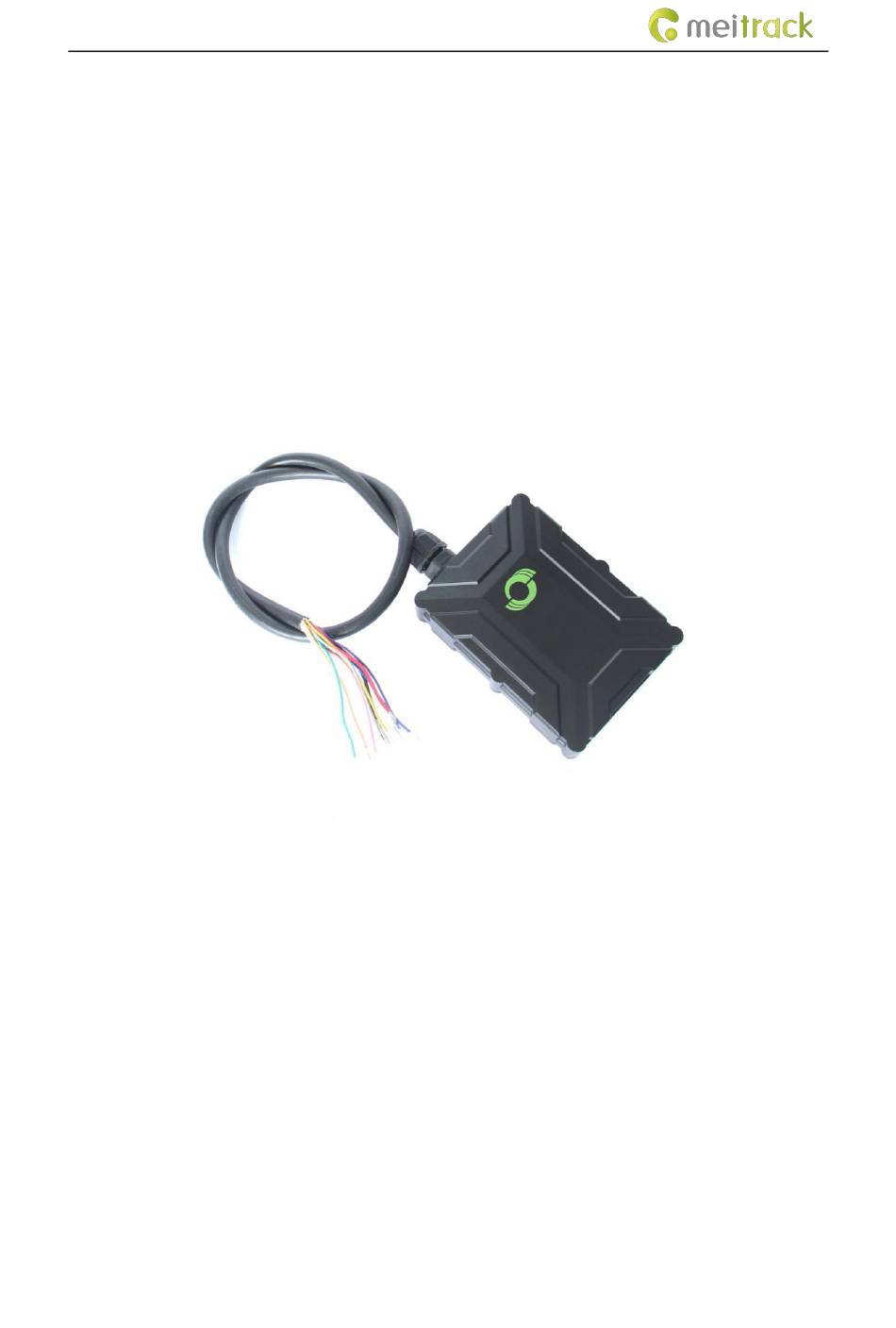

- Page 1 MEITRACK T366_series of products User Guide MEITRACK T366 series of products User Guide...
- Page 2 MEITRACK T366_series of products User Guide Change History File Name MEITRACK T366_series of products User Guide Project T366 Creation Date 2021-04-21 Update Date Subproject User Guide Total Pages Version V2.0 Confidential External Documentation Copyright © 2021 Meitrack Group All rights reserved. - 2 -...
-
Page 3: Table Of Contents
6.3 Device Configuration ..........................- 11 - 6.3.1 Installing the USB Driver ........................- 11 - 6.3.2 Configuring Device Parameters by Meitrack Manager ............... - 12 - 6.4 Tracking by Mobile Phone ........................... - 12 - 6.5 Common SMS Commands .......................... - 14 - 6.5.1 Real-Time Location Query –... -
Page 4: Copyright And Disclaimer

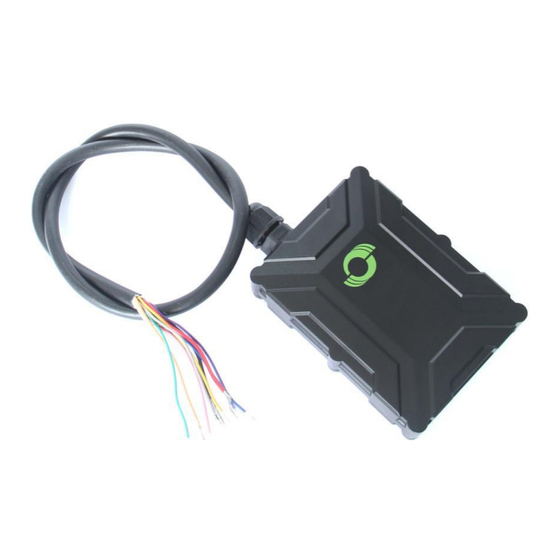

2 Product Introduction The T366 series of products is a vehicle GPS tracker with IP67 water-resistance rating and can be installed into cars, motorcycles, yachts, and boats. It is equipped with built-in GPS and GSM antennas. The unit can work well in extreme environments. -
Page 5: Activating Output By Event
For details, see section 6.5.6 "Setting I/O Port Status – C08." 2.1.6 Auto Arming You can enable the auto arming function by B27 command, Meitrack Manager software or MS03 tracking platform. This function is disabled by default. When the device is in sleep mode and the function has been enabled, the device will enter auto arming state. -
Page 6: Starting The Engine By Rfid/Ibutton
An iButton key or RFID card has been authorized. The tracker's output 1 is connected to the engine control cable through a relay. The RFID ignition function has been enabled by Meitrack Manager or MS03 tracking platform. The RFID event has been enabled on Meitrack Manager. -
Page 7: Anti-Theft
When the battery power is low, a low power alert will be generated. 3.2 Specifications Item Specifications Dimension 80.5 mm x 60 mm x 23.5 mm Weight 100g Copyright © 2021 Meitrack Group All rights reserved. - 7 -... - Page 8 Cat NB： B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66//B71/B85 T366 T366L-E： (4G) LTE FDD:B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM/GPRS: B3/B8 T366L-A： LTE FDD:B2/B4/B12 WCDMA: B2/B4/B5 T366L-AU： LTE FDD:B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD:B40 WCDMA: B1/B2/B5/B8 GSM/GPRS: B2/B3/B5/B8 T366L-AUT: LTE FDD:B1/B3/B5/B7/B28 Copyright © 2021 Meitrack Group All rights reserved. - 8 -...
-
Page 9: T366 And Accessories
Ultrasonic fuel level sensor Connect to the RS232 port (RS232 version) LED display Connect to the RS232 port (RS232 version) RFID Connect to the RS232 port (RS232 version) Copyright © 2021 Meitrack Group All rights reserved. - 9 -... -
Page 10: Appearance
Ensure that the SIM card in the device has subscribed the caller ID service if you want to use your authorized phone number to call the device. 6.2 LED Indicator Press and hold down the power button for 3–5 seconds to start the device. Copyright © 2021 Meitrack Group All rights reserved. - 10 -... -
Page 11: Device Configuration
6.3 Device Configuration 6.3.1 Installing the USB Driver Decompress the stsw-stm32102.zip file provided by Meitrack, locate the following file, and install the USB driver on a computer with 64-bit Windows system. After the installation is finished, connect the tracker to the computer by USB cable. If STMicroelectronics Virtual COM Port (COM5) is displayed on the Computer Management page, the driver is installed successfully. -
Page 12: Configuring Device Parameters By Meitrack Manager
Connect the device to a computer by using the USB cable. Run Meitrack Manager, then the following dialog box will appear: Turn on the device, then Meitrack Manager will detect the device model automatically and the parameter page will appear accordingly. - Page 13 Indicates the map link. None om/?lat=22.513781&l Latitude: 22.513781 ng=114.057183 Longitude: 114.057183 If your mobile phone does not support HTTP, enter the latitude and longitude on Google Maps to query a location. Copyright © 2021 Meitrack Group All rights reserved. - 13 -...
-
Page 14: Common Sms Commands
Reply: 353358017784062,A71,OK 6.5.3 Setting the Smart Sleep Mode – A73 SMS sending: 0000,A73,Sleep level SMS reply: IMEI,A73,OK Description: When the sleep level is 0, the sleep mode is disabled (default). Copyright © 2021 Meitrack Group All rights reserved. - 14 -... -
Page 15: Setting The Idling Alert - B14
For details about SMS commands, see the MEITRACK SMS Protocol. Note: 1. The default SMS command password is 0000. You can change the password by using Meitrack Manager and SMS command. 2. The device can be configured by SMS command with a correct password. After an authorized phone number is set, only the authorized phone number can receive the preset SMS event report. -
Page 16: Setting I/O Port Status - C08
IO1: Mn parameter value is 0, 4, 5, 7, or 8. IO2: Mn parameter value is 0, 1, or 2. IO3: Mn parameter value is 0, 1, or 2. IO4: Mn parameter value is 0, 1, 2, or 3. Copyright © 2021 Meitrack Group All rights reserved. - 16 -... -
Page 17: Logging In To Ms03 Tracking System
Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started"). - Page 18 The port can be set to negative input 4 or output 2 open collector. 8 (5 V output cable) Pink 5 V output It can be connected to the power supply of a temperature sensor. Copyright © 2021 Meitrack Group All rights reserved. - 18 -...
-
Page 19: Wiring Diagram
Ground wire 10(RS232-Tx) Purple The device sends data through RS232 port. 11(RS232-Rx) Brown The device receives data through RS232 port. 8.1.2 Wiring Diagram T366 standard version: T366 RS232 version: Copyright © 2021 Meitrack Group All rights reserved. - 19 -... -
Page 20: Mounting The T366
Mount the device in the vehicle by cable tie. Note: Do not install it at a metal covered place. If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2021 Meitrack Group All rights reserved.
