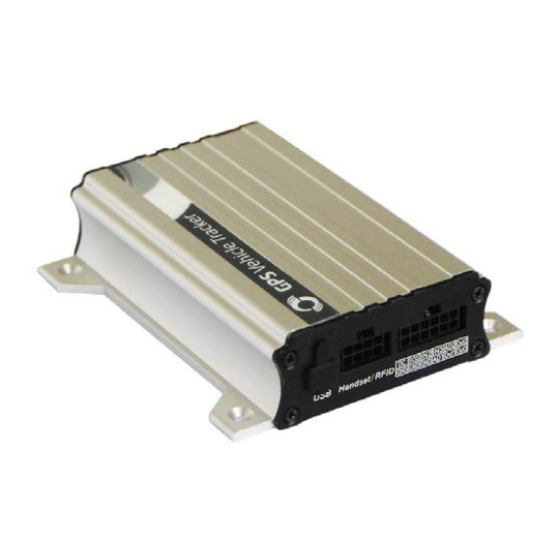

VEHICLE GLONASS/GPS TRACKER
Copyright © 2014 Meitrack Group All rights reserved.
File Name:
MEITRACK GLONASS/GPS VEHICLE
TRACKER User Guide
Project:
T3
Sub Project:
User Guide
Revision:
V1.5
MEITRACK®
T3
User Guide
Creator:
Creation Date:
Update Date:
Page:
Confidential:
External Documentation
Cavana Cheung
2013-3-15
2013-06-26
- 1 - of 22
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MeiTrack T3
Summary of Contents for MeiTrack T3
-
Page 1: User Guide
TRACKER User Guide Project: Creation Date: 2013-3-15 Update Date: 2013-06-26 Sub Project: User Guide Page: - 1 - of 22 Revision: V1.5 Confidential: External Documentation MEITRACK® VEHICLE GLONASS/GPS TRACKER User Guide Copyright © 2014 Meitrack Group All rights reserved. - 1 -... -
Page 2: Table Of Contents
Install RFID Reader (RS232 Interface) .................... - 20 - Install Camera (RS232 Interface) ....................- 21 - Install GPS/GLONASS/GSM Antennas ................... - 21 - Mount the T3 unit ......................... - 22 - Copyright © 2014 Meitrack Group All rights reserved. - 2 -... -
Page 3: Copyright And Disclaimer
Meiligao (MEITRACK), or transmitted in any form, either electronically or mechanically, including photocopying and recording. In no event shall Meiligao (MEITRACK) be liable for direct, indirect, special, incidental, or consequential damages (including but not limited to economic loss, personal injury, and loss of asset and property) arising out of the use or inability or illegality to use the product or documentation. -
Page 4: Specifications
3 Digital Input ( 1 positive triggering and 2 negative triggering) 2 Analog Input Detection 3 Output 1 RS232 Interface (for connecting to handset phone/RFID reader/LCD display etc) 1 USB port Copyright © 2014 Meitrack Group All rights reserved. - 4 -... -
Page 5: T3 And Accessories
Make sure the SIM Lock code is turned off; If you require the function of sending an SMS location report to the authorized phone number when it makes a call to the T3, please make sure the SIM installed supports displaying caller ID. -
Page 6: Charging
8 hours is highly appreciated. Configuration and testing suggested be prior to installation. 6.3 LED Indications Press and hold the Power On/Off button for 3~5 seconds to turn on/off T3. GPS/GLONASS LED (Blue) One button is pressed or input is active. - Page 7 82329 & ie=UTF8&z=1 6&iwloc=addr&om=1 If your mobile cannot visit HTTP websites, input the latitude and longitude into Google Maps as the following picture shows to get the position: Copyright © 2014 Meitrack Group All rights reserved. - 7 -...
-
Page 8: Multiple Phone Numbers- A71
If no preset phone number, it is empty (default is empty). Send command “0000, A71” to delete all phone numbers. When the SOS button is pressed, T3 will make a call to phone number 1, 2 and 3. It will stop calling when one number answers. -
Page 9: Sleep Mode - A73
In = 0, turn off the alarm when the tracker enters the waypoint; In = 1, turn on the alarm when the tracker enters the waypoint. Out = 0, turn off the alarm when the tracker exits the waypoint; Copyright © 2014 Meitrack Group All rights reserved. - 9 -... -
Page 10: Time Zone- B35
This part mainly shows you how to use the MEITRACK Parameter Editor. Note: Don’t connect T3 to external battery when configuring. Please refer to the MEITRACK Parameter Editor User Guide for more information regarding configuration and functions. Run ‘PL2303_Prolific_DriverInstaller’ to install the driver for the USB data cable. - Page 11 ‘Prolific USB-to-Serial Comm Port’ as the following picture shows. Note: Remember this Com number. It needs to be input into the MEITRACK Parameter Editor. It is COM3 in this example and it would be COM4 or COM5… in your computer.
-
Page 12: Sms Tracking
Click ‘Read Settings’ button to show the default or previous settings of the tracker. Note: MEITRACK Parameter Editor is in the CD. The language will be automatically adjusted to be the same as your PC operation system’s language. Please use “Ctrl+L” to change the language. - Page 13 Event Selected event’s SMS reports will be sent to the authorized phone number. For more details, please refer to MEITRACK GPRS/SMS Protocol. For description of events from SOS/Input 1 Active to Tow Alarm, please refer to tap II GPRS Tracking.
-
Page 14: Gprs Tracking
Alarm when external power supply is on or recover. External Power Off Alarm when external power supply if off or cut. No GPS/GLONASS Signal Report when T3 enters GPS/GLONASS blind area or no GPS/GLONASS signal. Get GPS/GLONASS Signal Report when T3 exits GPS/GLONASS blind area or get GPS/GLONASS signal. - Page 15 Interval = 0, stop tracking by time interval. Max time interval = 65535*10 seconds GPRS Report Times = 0, report without limit. = [1,65535], set report times, T3 will stop reporting when reaching the times. IP & Port Input server’s IP address and port number.
- Page 16 - 16 - of 22 Revision: V1.5 Confidential: External Documentation Tracker ID T3’s IMEI. It is the only ID in GPRS packet. Read Read current tracker’s settings for above items. Write Write above settings to the tracker. Tick the box for receiving GPRS report.
-
Page 17: Installation
Revision: V1.5 Confidential: External Documentation For more information about GPRS settings, please refer to MEITRACK SMS/GPRS Protocol. 7 Installation 7.1 Install I/O Cable The I/O cable is a 12-pin cable including power, analog input, negative/positive input and output. Power (+) -
Page 18: Power/Gnd (Pin1/Pin2)
Output low voltage sink current (effective): 400mA max. 7.1.1 Power/GND (PIN1/PIN2) Connect GND (-Black) and Power (+Red) wires to the battery of vehicle. 7.1.2 Digital Input (PIN3/PIN5 Negative Triggering) 7.1.3 Digital Input (PIN7 Positive Triggering) Copyright © 2014 Meitrack Group All rights reserved. - 18 -... -
Page 19: Output (Pin10/Pin11/Pin12)
For the circuit shown on above figure, if VCC is 12V, R should be 200Ω (ohm) and if VCC is 24V then R should be 600Ω (ohm) to make the input range to AD1 or AD2 is 0-6V. Below formula is for calculating the fuel percentage left for this fuel level sensor: Copyright © 2014 Meitrack Group All rights reserved. - 19 -... -
Page 20: Install Handset Phone (Rs232 Interface)
Note: This interface also supports RFID reader. It only can be used to connect to handset or RFID reader at the same time. 7.3 Install RFID Reader (RS232 Interface) PIN Number Color Description Power Output. Output Voltage: 5V Copyright © 2014 Meitrack Group All rights reserved. - 20 -... -
Page 21: Install Camera (Rs232 Interface)
RX, Camera RS232 TX (T3 RX) White TX, Camera RS232 RX, T3 TX Note: when connecting T3 with camera, the below connecting wire is needed. The 8PIN interface connects to T3, and the 4PIN interface to camera. 4PIN to camera 8PIN to T3 The interface can only be connected to one of the camera, handset and RFID reader. -
Page 22: Mount The T3 Unit
Note: Do not shield or cover the GPS/GLONASS antenna with any objects containing metal. 7.6 Mount the T3 unit If mounting required, there are 4 screw holes on the T3, 2 along either side that act as fixing points to the vehicle Please do not hesitate to email us at info@meitrack.com...
