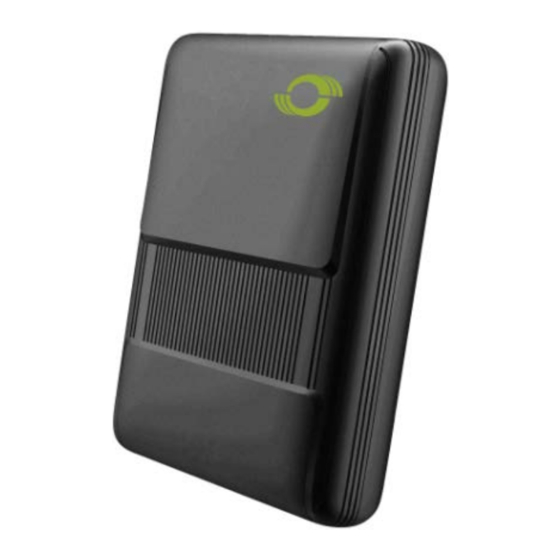

MeiTrack T322 User Manual

Gps vehicle tracker
Hide thumbs Also See for T322:
Table of Contents

Advertisement

Quick Links

MEITRACK® GPS Vehicle Tracker
Copyright © 2013 Meitrack Group All rights reserved.
File Name:
MEITRACK T322 User Guide
Project:
T322
Sub Project:

User Guide

Revision:
V1.2
T322
User Guide
Creator:
Creation Date:
Update Date:
Page:
Confidential:
External Documentation
2013-07-01
2013-09-17
1 of 21
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T322 and is the answer not in the manual?

Questions and answers

Related Manuals for MeiTrack T322

Summary of Contents for MeiTrack T322

  • Page 1: User Guide

    MEITRACK T322 User Guide Creator: Project: T322 Creation Date: 2013-07-01 Update Date: 2013-09-17 Sub Project: User Guide Page: 1 of 21 Revision: V1.2 Confidential: External Documentation MEITRACK® GPS Vehicle Tracker T322 User Guide Copyright © 2013 Meitrack Group All rights reserved.

  • Page 2: Table Of Contents

    7.2.5 Remote Control Stop Engine ......................20 7.2.6 Buzzer Alarm (Optional) ........................20 7.2.7 Remote Control Box (Optional) ....................... 21 7.2.8 Port of Microphone and Speaker (Optional) ................... 21 7.3 Mount the T322 Unit ..........................21 Copyright © 2013 Meitrack Group All rights reserved.

  • Page 3: Copyright And Disclaimer

    In no event shall MEITRACK be liable for direct, indirect, special, incidental, or consequential damages (including but not limited to economic loss, personal injury, and loss of asset and property) arising out of the use or inability or illegality to use the product or documentation.

  • Page 4: Specifications

    3 Digital Input(1 SOS, 1 Door Trigger input (can be set to be negative or positive ), 1 ACC Detection) 2 Output(1 for Buzzer Alarm,1 for Remote Engine Cut) 1 Analog Input 1 RS232 Interface(can charge battery) 1Wireless Remote Control (433Mhz)(Optional) Copyright © 2013 Meitrack Group All rights reserved.

  • Page 5: T322 And Accessories

    T322 with Battery I/O Cable SOS Button USB Data Cable Optional Accessories: Wireless Buzzer Alarm Microphone Speaker Remote Control Fuel Sensor GPS Antenna Remote Control Box Audio Cable for Microphone and Speaker Map Card Copyright © 2013 Meitrack Group All rights reserved.

  • Page 6: View

    Update Date: 2013-09-17 Sub Project: User Guide Page: 6 of 21 Revision: V1.2 Confidential: External Documentation 5. View Power & Functional Cables Microphone & Speaker Interface USB Interface Power/GSM/GPS LED Antenna Interface Copyright © 2013 Meitrack Group All rights reserved.

  • Page 7: First Use

    If the device is required to reply SMS to authorized number after being called, please make sure it has the function of displaying incoming Caller ID. Before installing the SIM card, turn the power off. Make sure the SIM card is unlocked. SIM Card Copyright © 2013 Meitrack Group All rights reserved.

  • Page 8: Led Indications

    Normal working 6.3 Configure by Computer The following shows you how to configure the T322 with MEITRACK Manager. Please install USB Driver and MEITRACK Manager in advance. Please refer to the MEITRACK Manager User Guide for details on configurations and functions.
  • Page 9 Click “Port(COM and LPT)”, and find “Prolific USB-to-Serial Comm Port” as below: Run MEITRACK Manager, turn ON the device and connect to PC with USB cable, Meitrack Manager will automatically detect port and model, and enter into the main interface as follows:...

  • Page 10: Gprs/Sms Tracking

    Click “Port(COM and LPT)”, and find “Prolific USB-to-Serial Comm Port” as below: Note: Remember the COM number. And input the same port when configure Meitrack Manager. It is COM3 in this example and it might be COM4 or COM5… in your computer.

  • Page 11: Geo-Fence Configuration

    GPRS time zone minute = [-32768,32767], set different time zones. Save Write current GPRS Tracking settings into the tracker. For more details, please refer to Meitrack Manager User Guide. 6.3.2 Geo-fence Configuration Select Column 3: Geo Fence Copyright © 2013 Meitrack Group All rights reserved.

  • Page 12: Authorized Event Configuration

    Select Column 3: Authorize. Set GPRS Event and Buzzer Alarm, and they can be set separately. For more GPRS Settings, please refer to MEITRACK SMS Protocol and MEITRACK GPRS Protocol for details. Copyright © 2013 Meitrack Group All rights reserved.

  • Page 13: Gps Tracking

    6.4 GPS Tracking 6.4.1 Real-time Tracking by Mobile Phone Make a call to T322 and it will reply with one SMS. Click on the link, and show the location on Google Maps on your mobile phone.(Please make sure Caller ID is not block.

  • Page 14: Set Function Phone Numbers

    Real-time Location, Geo-fence Alarm, Low Battery Alarm, Opening the Vehicle’s Door or Starting engine without permission. “0000, A71” to delete all Function Phone Numbers. When SOS button is pressed, T322 will make a call to the function phone number 1, 2 and 3. It will stop calling when one number answers. Example: 0000,A71,13811111111,13822222222,13833333333 SMS Get: 353358017784062,A71,OK Copyright ©...

  • Page 15: Arming/Disarming

    SMS Get: IMEI, B21, OK Note: Status=1 Arming. In Arming status, if open vehicle door or start ACC on, T322 will make call and send SMS report to the function phone number. Status=0 Disarming. In Disarming status, all security alarms will be OFF.

  • Page 16: Advanced Settings

    Configure by SMS: Send SMS command (0000,A21,1,67.203.13.26,8800,APN,APNusername,APNpassword)and (0000,A12,6,0) to T322. Configure by Meitrack Manager: connect with computer, run Meitrack Manager.exe, enter the main interface and select column 2 Tracking, turn on TCP and set IP, Port, APN, GPRS Time Interval.
  • Page 17 5. Get IMEI from serial port and register via IMEI (The IMEI is 356896031494173 for example) 6. Double click the Control Panel on the right of the main interface to check if the data on the bottom is updated. Copyright © 2013 Meitrack Group All rights reserved.

  • Page 18: Installation

    (Grey) Device Input Device GND Remote Remote Control Remote Analog Input Power (Black) Control GND Power (Yellow) Control signal (Blue) (Red) (Black) wire (Green) Description SOS GND GND, used for input1 triggering. Copyright © 2013 Meitrack Group All rights reserved.

  • Page 19: I/O Photos

    Analog Input AD 0~47V. Connect with sensor. 7.2.2 I/O Photos Digital Input 1(SOS) Interface Remote Control Interface 7.2.3 Power Cable/Ground Wire Connect GND (-Black) and Power (+Red) wires to the battery of vehicle. Copyright © 2013 Meitrack Group All rights reserved.

  • Page 20: Acc And Door Detection

    Update Date: 2013-09-17 Sub Project: User Guide Page: 20 of 21 Revision: V1.2 Confidential: External Documentation 7.2.4 ACC and Door Detection 7.2.5 Remote Control Stop Engine 7.2.6 Buzzer Alarm (Optional) Buzzer Output Copyright © 2013 Meitrack Group All rights reserved.

  • Page 21: Remote Control Box (Optional)

    7.2.8 Port of Microphone and Speaker (Optional) 7.3 Mount the T322 Unit T322 can be fixed with nylon cables and install inside the vehicle; or insert to cigar lighter (5V input) of the vehicle for convenient use. Please do not hesitate to email us at info@meitrack.com if you have any questions.
