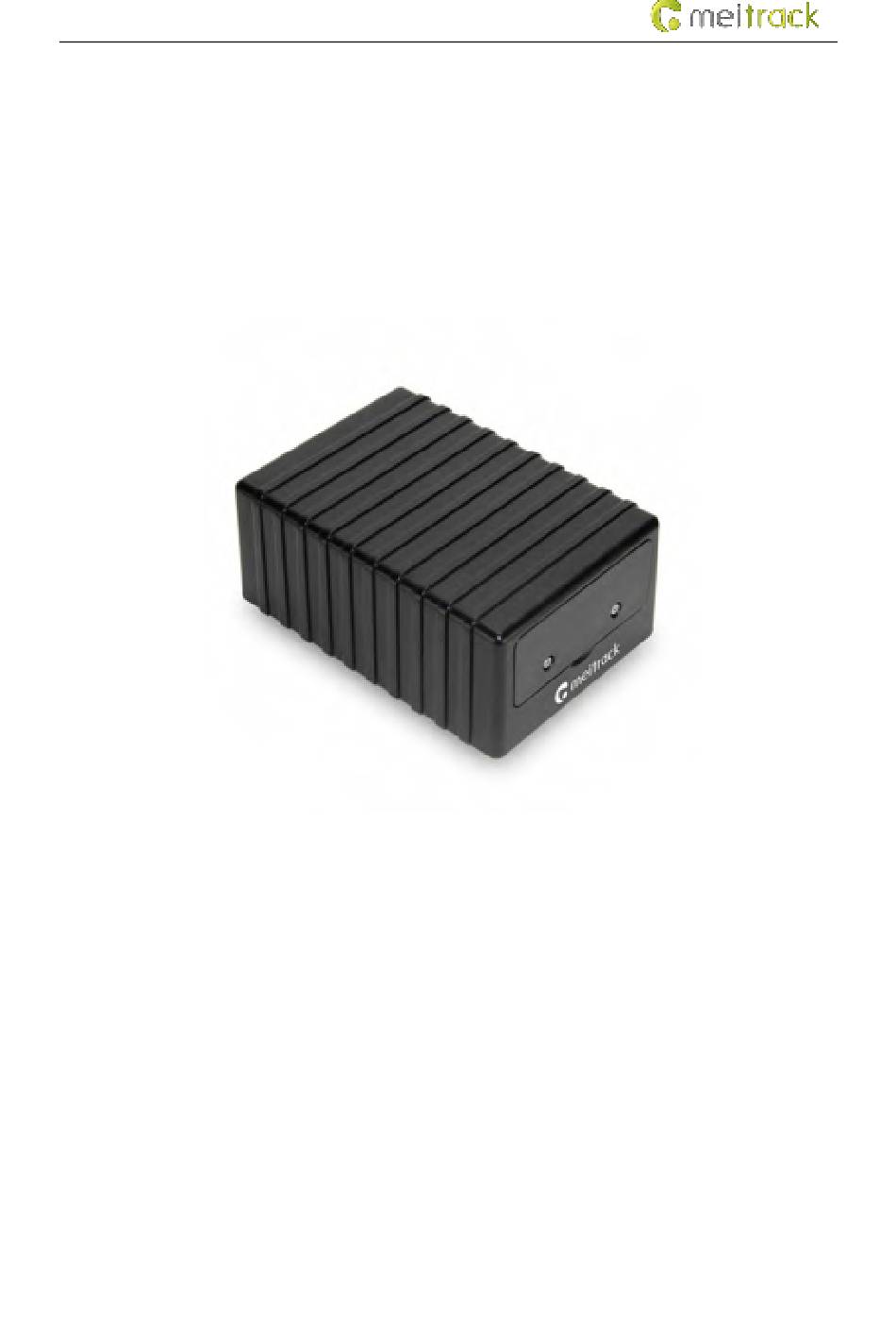

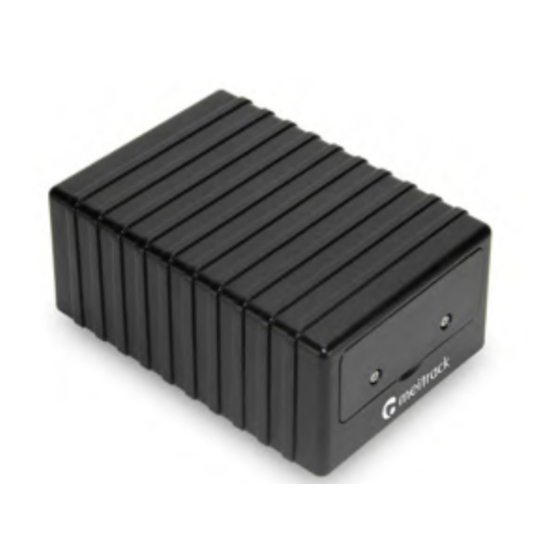

- Page 1 MEITRACK T355G/T355 User Guide MEITRACK T355G/T355 User Guide...
-
Page 2: Change History
Change History File Name MEITRACK T355G/T355 User Guide Created By Vincent Chang Project T355G/T355 Creation Date 2016-08-23 Update Date 2017-06-08 Subproject User Guide Total Pages Version V1.2 Confidential External Documentation Copyright © 2017 Meitrack Group All rights reserved. - 2 -... -
Page 3: Table Of Contents
5.2 LED Indicator ..............................- 9 - 6 First Use ..................................- 9 - 7 Configuring Device Parameters by Meitrack Manager .................... - 11 - 8 Quick Operation Command ............................. - 11 - 8.1 Tracking by Mobile Phone ........................... - 11 - 8.2 Setting the Sensitivity Level of the 3D Vibration Sensor –... -
Page 4: Copyright And Disclaimer
(for example, in a basement) after five minutes, no positioning data will be generated. The device will upload data every one hour by default. But you can use Meitrack Manager or A11 command to set the heartbeat packet reporting interval. -
Page 5: Continuous Tracking Mode
Enable the deep sleep mode (default: enable) Enable the 3D-Shake Wake Up mode (default: enable) Set the tracking time interval and heartbeat packet reporting interval. Press the drop switch. Copyright © 2017 Meitrack Group All rights reserved. - 5 -... -
Page 6: Fixed Asset Anti-Theft Mode
3 Product Functions and Specifications 3.1 Product Functions GPS + LBS positioning Power magnet, easy to install Drop alert Long standby time IP66 water resistant Copyright © 2017 Meitrack Group All rights reserved. - 6 -... -
Page 7: Specifications
Built-in 3-axis accelerometer (used to determine movement, stillness, and vibration.) Memory 8 MB buffer (Store up to 8,192 GPRS/UMTS cache records and 100 SMS cache records) LED indicator LED indicators showing power, GPS, 2G, and 3G status Copyright © 2017 Meitrack Group All rights reserved. - 7 -... -
Page 8: Device And Accessories
External GPS antenna 5 Panel 5.1 Appearance Drop switch LED indicator Power magnet External GPS antenna Gasket 1-Wire interface Slide switch A/D interface SIM card slot Mini USB port Copyright © 2017 Meitrack Group All rights reserved. - 8 -... -
Page 9: Led Indicator
Note: Ensure that the SIM PIN lock is closed, and the SIM card has sufficient balance and has subscribed the call ID service. If you want to use the GPRS/UMTS function, learn about the SIM card GPRS/UMTS charging first. Copyright © 2017 Meitrack Group All rights reserved. - 9 -... - Page 10 After the device has stopped, wait for 5 seconds before restarting the device. Drop switch Install the device cover. Place the back cover, and tighten the two screws by using the mini screwdriver. Copyright © 2017 Meitrack Group All rights reserved. - 10 -...
-
Page 11: Configuring Device Parameters By Meitrack Manager
Connect the device to a computer with the USB cable. Run Meitrack Manager, then the following dialog box will appear: Turn on the device, then Meitrack Manager will detect the device model automatically and the parameter page will appear accordingly. - Page 12 If your mobile phone does not support HTTP, enter the latitude and longitude on Google Maps to query a location. Note: The default password of the tracker is 0000. The password can be changed by using Meitrack Manager or SMS command. After the password is changed successfully by using an SMS command, only the authorized phone number can receive SMS reports.
-
Page 13: Setting The Sensitivity Level Of The 3D Vibration Sensor - B09
When the sleep level is 1, the tracker enters the normal sleep mode. The 2G/3G module always works, and the GPS module occasionally works at 5-minute intervals. You can set device parameters by Meitrack Manager to enable or disable the normal sleep mode. The settings about enabling the mode will take effect after five minutes, while the settings about disabling the mode will take effect immediately. -
Page 14: Logging In To Ms03 Tracking System
Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started"). -
Page 15: Safety And Use Instructions
Incompatible accessories may cause serious injuries or damages to your device. Handle the battery and charger carefully. Use batteries specified by Meitrack and chargers exclusively designed for your device. Incompatible batteries and chargers may cause serious injuries or damages to your device. ...
