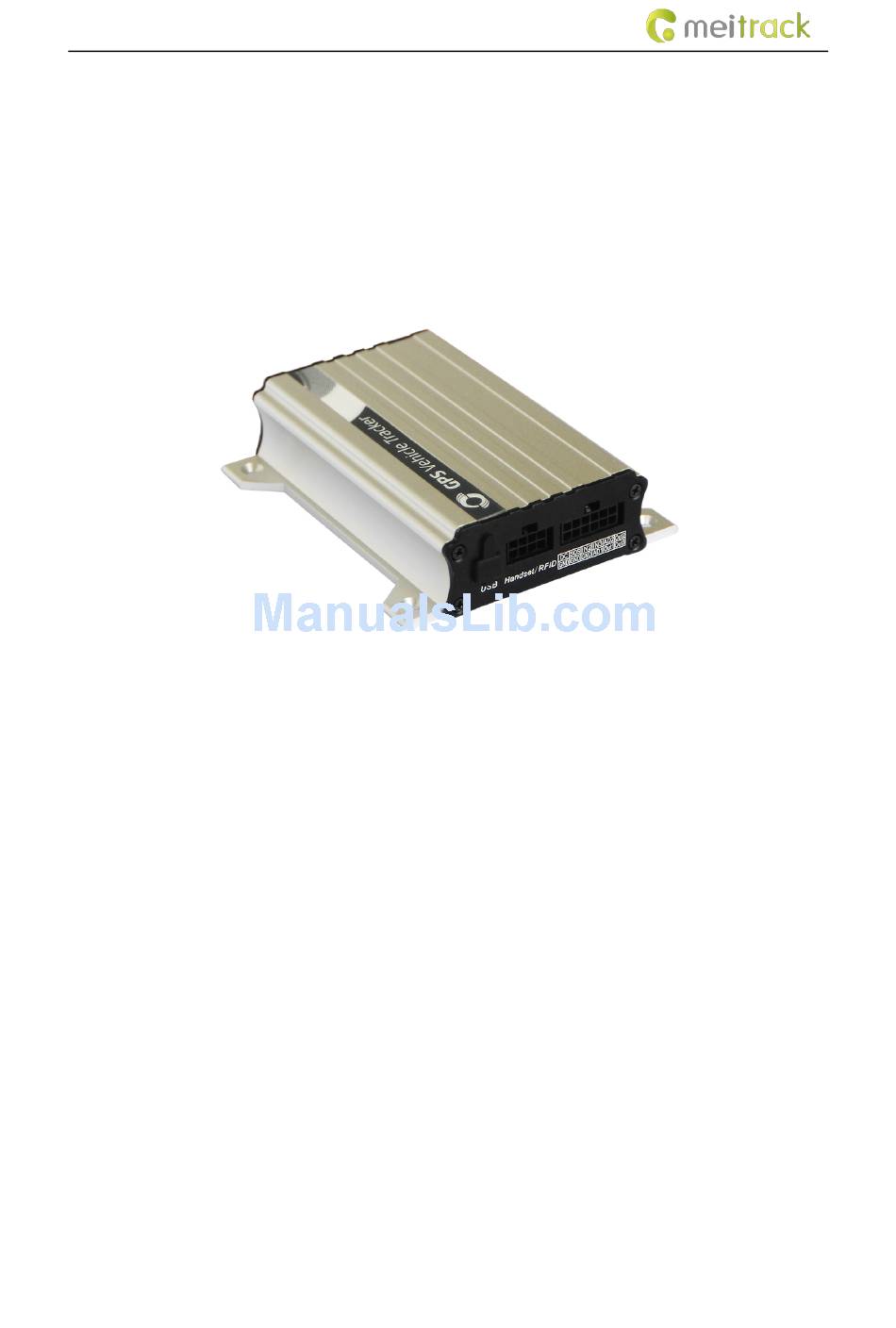

- Page 1 MEITRACK T333 User Guide MEITRACK T333 User Guide...
- Page 2 MEITRACK T333 User Guide Change History File Name MEITRACK T333 User Guide Project T333 Creation Date 2014-06-10 Update Date 2018-08-02 Subproject User Guide Total Pages Version V1.6 Confidential External Documentation Copyright © 2018 Meitrack Group All rights reserved. - 2 -...
-
Page 3: Table Of Contents
6.2 Charging the Device ............................- 9 - 6.3 LED Indicator ..............................- 9 - 6.4 Configuring Device Parameters by Meitrack Manager ................... - 9 - 6.5 Tracking by Mobile Phone ..........................- 10 - 6.6 Common SMS Commands ..........................- 11 - 6.6.1 Setting Authorized Phone Numbers –... -
Page 4: Copyright And Disclaimer
2 Product Introduction The T333 is a brand new 3G vehicle tracker. In addition to real-time tracking, the T333 has two-way calling and remote listen-in functions. The T333 provides excellent and stable performance in vehicle tracking and fleet management. -
Page 5: Product Functions And Specifications
Built-in 8 MB buffer for recording driving routes (Store 8,192 GPRS cache records, 256 SMS cache records, and 131,072 GPS logs) Mileage report Low power alert for internal battery Copyright © 2018 Meitrack Group All rights reserved. - 5 -... -
Page 6: Functions Of Optional Accessories
1 SOS button (for sending SMSs or dialing) 1 power button Memory 8 MB buffer Sensor 3-axis accelerometer (used to wake the device up by vibration and detect towing Copyright © 2018 Meitrack Group All rights reserved. - 6 -... -
Page 7: T333 And Accessories
Speaker + microphone RFID reader IButton A53 fuel level sensor Ultrasonic fuel level sensor A52 digital temperature sensor + A61 sensor box wireless temperature sensor Tire pressure sensor LED display Copyright © 2018 Meitrack Group All rights reserved. - 7 -... -

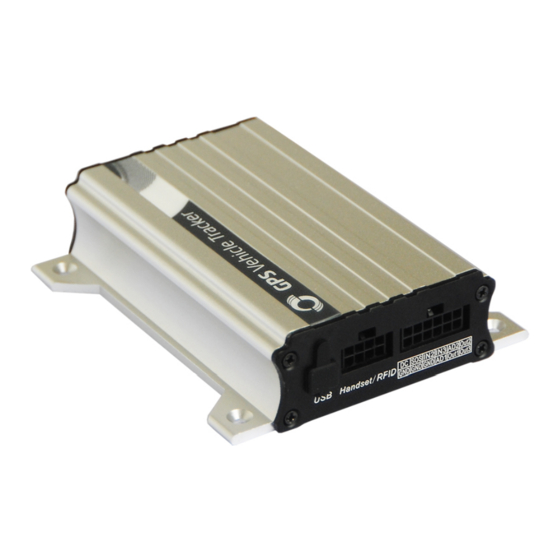

Page 8: Appearance
Ensure that the SIM card in the device has subscribed the caller ID service if you want to use your authorized phone number to call the device. Copyright © 2018 Meitrack Group All rights reserved. - 8 -... -
Page 9: Charging The Device
6.2 Charging the Device When you use the T333 for the first time, connect the T333 GND (-Black) and Power (+Red) wires to 12 V or 24 V external power supply for charging. Ensure that the T333 is charged at least three hours. Eight hours are recommended. -
Page 10: Tracking By Mobile Phone
MEITRACK T333 User Guide Turn on the device, then Meitrack Manager will detect the device model automatically and the parameter page will appear accordingly. For details about Meitrack Manager, see the MEITRACK Manager User Guide. 6.5 Tracking by Mobile Phone Call or send the 0000,A00 command by SMS to the device's SIM card number. -
Page 11: Common Sms Commands
Phone numbers are empty by default. If no phone numbers are set and commas are remained, phone numbers set before will be deleted. If you need to delete all listen-in phone numbers, send 0000,A72. Copyright © 2018 Meitrack Group All rights reserved. - 11 -... -
Page 12: Setting The Smart Sleep Mode - A73
Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started"). -
Page 13: Installing The T333
White and brown Digital input 2 (negative trigger) Connect to a door trigger signal cable to detect vehicle door status. (Most Chinese, Korean, and Japanese cars are negative edge-triggered.) Copyright © 2018 Meitrack Group All rights reserved. - 13 -... -
Page 14: Power Cable/Ground Wire (Pin 1/2)
Otherwise, the device may be damaged. 8.2.1 Power Cable/Ground Wire (Pin 1/2) Connect the power cable (red) and ground wire (black) to the positive and negative charges of the vehicle battery respectively. Copyright © 2018 Meitrack Group All rights reserved. - 14 -... -
Page 15: Acc And Door Detection (Pin 5/7)
ON-OFF-ON. If input 3 is connected to the "Start" position, after the engine is started, the platform will read it as OFF-ON-OFF. If installed correctly, after the engine is started, the platform will read it as OFF-ON. 8.2.3 Output (Pin 10/11) Copyright © 2018 Meitrack Group All rights reserved. - 15 -... -
Page 16: Sensor Input
The white plug on the T333 harness consists of the power cable (red), ground wire (black), AD2 cable (blue), and SEN cable (green). The T333 can connect to a maximum of two A61 sensor boxes. You can install a maximum of eight A52 temperature sensor ports. For details, see the MEITRACK Temperature Sensor User Guide. -
Page 17: Installing The Rfid Reader (Rs232 Port)
White Reserved (TX, T333 sends data to the RFID reader.) Remarks: The T333 RFID reader is not compatible with the MVT600 RFID reader. In the MVT600, the RS232 port is a Wiegand port. Note: The RS232 port can be used with either the Speaker + microphone or the camera at a time. -
Page 18: Mounting The T333
Green RX, T333 receives data from the camera. White TX, T333 sends data to the camera, To connect T333 to a camera, a 4-pin to 8-pin cable is required. Connect the device to Connect the camera to the 8-pin interface.
