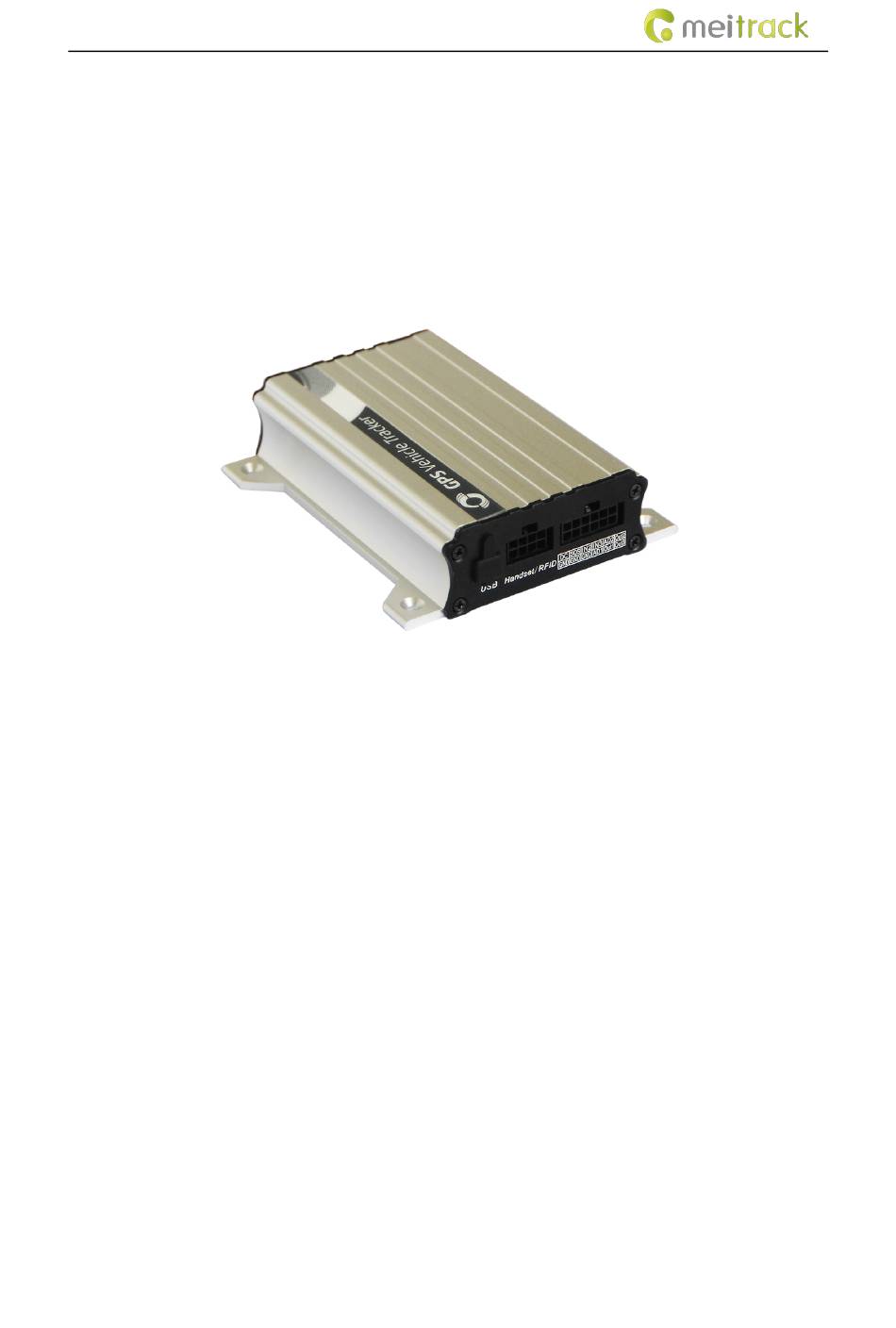

- Page 1 MEITRACK T333L User Guide MEITRACK T333L User Guide...
- Page 2 MEITRACK T333L User Guide Change History File Name MEITRACK T333L User Guide Project T333L Creation Date 2022-08-03 Update Date Subproject User Guide Total Pages Version V1.0 Confidential External Documentation Copyright © 2022 Meitrack Group All rights reserved. - 2 -...
-
Page 3: Table Of Contents
6.2 Charging the Device ............................- 8 - 6.3 LED Indicator ..............................- 8 - 6.4 Configuring Device Parameters by Meitrack Manager ................... - 9 - 6.5 Tracking by Mobile Phone ..........................- 9 - 6.6 Common SMS Commands ..........................- 11 - 6.6.1 Setting Authorized Phone Numbers –... -
Page 4: Copyright And Disclaimer

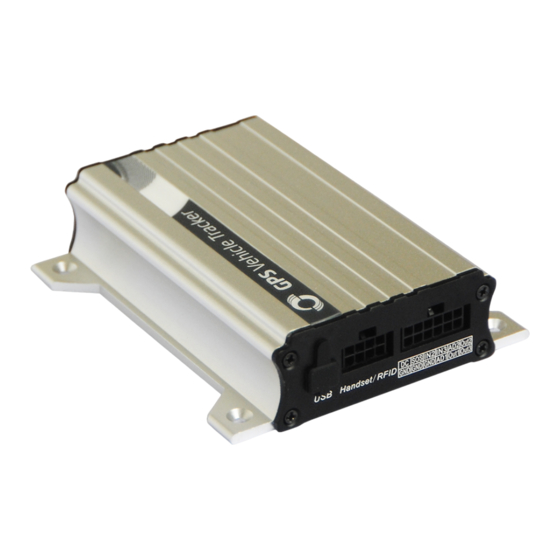

2 Product Introduction The T333L is a brand new 4G vehicle tracker. In addition to real-time tracking, the T333L has two-way calling and remote listen-in functions. The T333L provides excellent and stable performance in vehicle tracking and fleet management. -
Page 5: Product Functions And Specifications
SMS/GPRS (TCP/UDP) communication (Meitrack protocol) Built-in 8 MB buffer for recording driving routes Mileage report Low power alert for internal battery Build-in 3-axis accelerometer Copyright © 2022 Meitrack Group All rights reserved. - 5 -... -
Page 6: Functions Of Optional Accessories
1 SOS button (for sending SMSs or dialing) 1 power button Memory 8 MB buffer Sensor 3-axis accelerometer (used to wake the device up by vibration and detect towing alerts) Copyright © 2022 Meitrack Group All rights reserved. - 6 -... -
Page 7: T333L And Accessories
IButton A53 fuel level sensor Ultrasonic fuel level sensor A52 digital temperature sensor + A61 sensor box wireless temperature sensor Tire pressure sensor LED display USB cable 5 Appearance Copyright © 2022 Meitrack Group All rights reserved. - 7 -... -
Page 8: First Use
6.2 Charging the Device When you use the T333L for the first time, connect the T333L GND (-Black) and Power (+Red) wires to 12 V or 24 V external power supply for charging. Ensure that the T333L is charged at least three hours. Eight hours are recommended. -
Page 9: Configuring Device Parameters By Meitrack Manager
Blink (1 second on and 2 seconds off) No base station signal is received. 6.4 Configuring Device Parameters by Meitrack Manager This section describes how to use Meitrack Manager to configure the T333L on a computer. Procedure: Install the USB driver and Meitrack Manager. - Page 10 GPRS reaches the normal level. 0Km/h Indicates the speed. Unit: km/h Indicates the remaining battery power. None http://maps.meigps Indicates the map link. None .com/?lat=22.51378 Latitude: 22.513781 1&lng=114.057183 Longitude: 114.057183 Copyright © 2022 Meitrack Group All rights reserved. - 10 -...
-
Page 11: Common Sms Commands
If no phone numbers are set and commas are remained, phone numbers set before will be deleted. If you need to delete all listen-in phone numbers, send 0000,A72. Example: Sending: 0000,A72,13844444444,13855555555 Reply: 353358017784062,A72,OK Copyright © 2022 Meitrack Group All rights reserved. - 11 -... -
Page 12: Setting The Smart Sleep Mode - A73
Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started"). -
Page 13: Installing The T333L
White and brown Digital input 2 (negative trigger) Connect to a door trigger signal cable to detect vehicle door status. (Most Chinese, Korean, and Japanese cars are negative edge-triggered.) Copyright © 2022 Meitrack Group All rights reserved. - 13 -... -
Page 14: Power Cable/Ground Wire (Pin 1/2)
Otherwise, the device may be damaged. 8.2.1 Power Cable/Ground Wire (Pin 1/2) Connect the power cable (red) and ground wire (black) to the positive and negative charges of the vehicle battery respectively. Copyright © 2022 Meitrack Group All rights reserved. - 14 -... -
Page 15: Acc And Door Detection (Pin 5/7)
ON-OFF-ON. If input 3 is connected to the "Start" position, after the engine is started, the platform will read it as OFF-ON-OFF. If installed correctly, after the engine is started, the platform will read it as OFF-ON. 8.2.3 Output (Pin 10/11) Copyright © 2022 Meitrack Group All rights reserved. - 15 -... -
Page 16: Sensor Input
The white plug on the T333L harness consists of the power cable (red), ground wire (black), AD2 cable (blue), and SEN cable (green). The T333L can connect to a maximum of two A61 sensor boxes. You can install a maximum of eight A52 temperature sensor ports. For details, see the MEITRACK Temperature Sensor User Guide. -
Page 17: Installing The Rfid Reader (Rs232 Port)
White Reserved (TX, T333L sends data to the RFID reader.) Remarks: The T333L RFID reader is not compatible with the MVT600 RFID reader. In the MVT600, the RS232 port is a Wiegand port. Note: The RS232 port can be used with either the Speaker + microphone or the camera at a time. -
Page 18: Mounting The T333L
Green RX, T333L receives data from the camera. White TX, T333L sends data to the camera, To connect T333L to a camera, a 4-pin to 8-pin cable is required. Connect the device to Connect the camera to the 8-pin interface.
