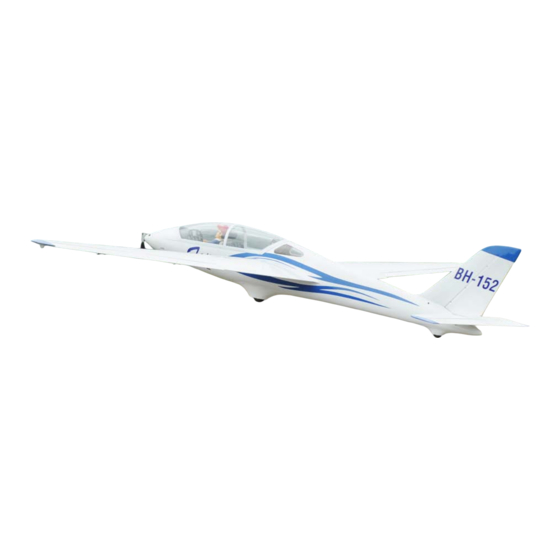

Black Horse Model MDM-1FOX Instruction Manual Book

95% almost ready to fly plane
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

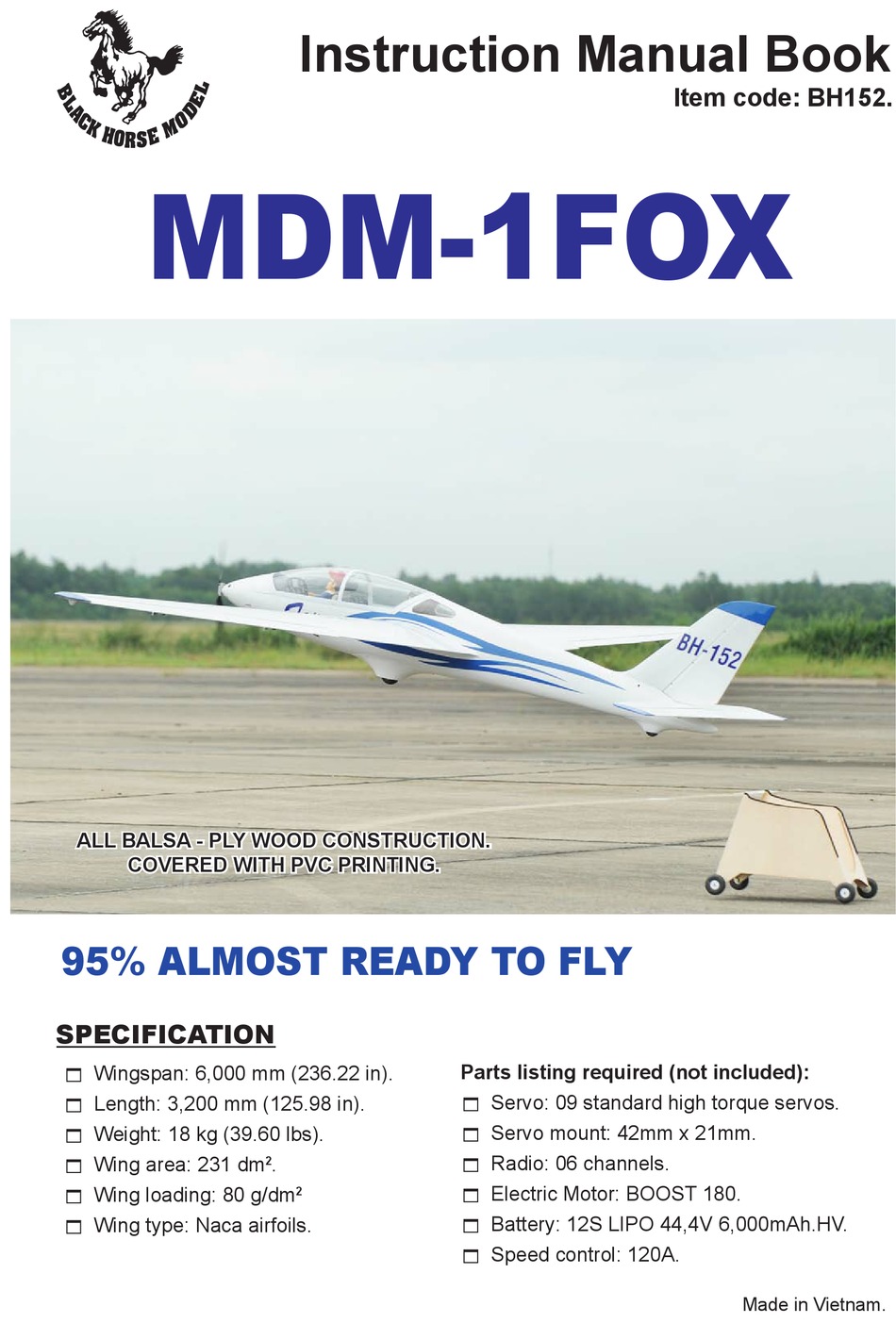

MDM-1FOX
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED WITH PVC PRINTING.
95% ALMOST READY TO FLY
SPECIFICATION
 Wingspan: 6,000 mm (236.22 in).
 Length: 3,200 mm (125.98 in).
 Weight: 18 kg (39.60 lbs).
 Wing area: 231 dm
 Wing loading: 80 g/dm
 Wing type: Naca airfoils.
Instruction Manual Book
.
2
2
Parts listing required (not included):
 Servo: 09 standard high torque servos.
 Servo mount: 42mm x 21mm.
 Radio: 06 channels.
 Electric Motor: BOOST 180.
 Battery: 12S LIPO 44,4V 6,000mAh.HV.
 Speed control: 120A.
Item code: BH152.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDM-1FOX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model MDM-1FOX

Summary of Contents for Black Horse Model MDM-1FOX

  • Page 1 Instruction Manual Book Item code: BH152. MDM-1FOX ALL BALSA - PLY WOOD CONSTRUCTION. COVERED WITH PVC PRINTING. 95% ALMOST READY TO FLY SPECIFICATION Parts listing required (not included):  Wingspan: 6,000 mm (236.22 in).  Servo: 09 standard high torque servos.

  • Page 2: Parts Listing

    MDM-1FOX Item code: BH152. Instruction Manual This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly MDM-1FOX before starting assembly of your . Use the parts listing below to identify all parts.

  • Page 3: Safety Precaution

    MDM-1FOX Item code: BH152. Instruction Manual Caution: This model is not a toy! melt and holes may be formed. If you are a beginner to this type of powered model, This model is highly pre-fabricated and can be built in please ask an experienced model flyer for help and a very short time.

  • Page 4: Installing The Aileron Servos

    MDM-1FOX Item code: BH152. Instruction Manual REPLACEMENT SMALL PARTS 3 x 12mm 3 x 10mm 6 x 45mm 6 x 75mm Fiberglass parts bottom top wing. 2a. Plastic part wheel pants. 3. Propeller mount. 2b. Plastic part tail wheel pants.

  • Page 5: Installing The Aileron Linkages

    MDM-1FOX Item code: BH152. Instruction Manual 5) Repeat the procedure to install the  aileron servos in the opposite wing half. Secure 2. INSTALLING THE AILERON CONTROL HORN  1) Remove the covering from the slot on the bot- tom of the aileron.
  • Page 6 MDM-1FOX Item code: BH152. Instruction Manual Secure Bottom side Aileron Aluminium tube wing (K1, K2). 19mm. control horn 633 mm 19mm. 454 mm After both linkages are completed. connect both of the aileron servo loads using a Y-harness you have purchased.
  • Page 7 MDM-1FOX Item code: BH152. Instruction Manual Push in Bottom side Drill a hole 2.5mm 3x12mm Secure 6x45mm Repeat the procedure for the opposite wing half. Secure INSTALLING THE FUSELAGE See pictures below: Aluminium tube Fuselage. 25mm. 666 mm NSTALLING ELECTRIC MOTOR AND ESC Attach the aluminium tube into the fuselage.
  • Page 8 MDM-1FOX Item code: BH152. Instruction Manual Secure Open Secure Mottor Secure Drill a hole 2mm diameter. Rotor shaft Push in Secure...

  • Page 9: Horizontal Stabilizer

    MDM-1FOX Item code: BH152. Instruction Manual HORIZONTAL STABILIZER See pictures below: Bottom side Repeat step # 1 - # 3 from installing the aileron (page 4 - 5) to install the horizontal stabilizer. Aluminium tube Horizontal stabilizer 12mm. 294mm Attach the aluminium tube into the fuselage.

  • Page 10: Vertical Installation

    MDM-1FOX Item code: BH152. Instruction Manual XI. VERTICAL INSTALLATION Repeat step # 1 - # 3 from installing the aileron (page 4 - 5) to install the vertical stabilizer. See picture below: Aluminium tube horizontal stabilizer 12mm. 272 mm Remove the rear of the covering.

  • Page 11: Mounting The Tail Wheel Bracket

    MDM-1FOX Item code: BH152. Instruction Manual X. MOUNTING THE TAIL WHEEL BRACKET Secure Set the tail wheel assembly in place on the plywood plate. The tail wheel bracket should be centered on the plywood plate. Collar 3x10mm Secure 3x10mm Secure XII.

  • Page 12: Wing Attachment

    MDM-1FOX Item code: BH152. Instruction Manual XIV. INSTALLING COCKPIT XIII. WING ATTACHMENT FUSELAGE Locate the aluminium wing dihedral brace. Aluminium tube wing dihedral brace. Pillot 32mm. 1,453 mm 25mm. 1,197 mm A/B Epoxy glue. *** Test fit the aluminium tube dihedral brace into each wing haft.

  • Page 13: Control Throws

     4) Check the control surface.  5) Check the receiver antenna . It should be fully 115mm extended and not coiled up inside the fuselage.  6) Properly balance the propeller. We wish you many safe and enjoyable flights with your MDM-1FOX.
  • Page 14 I/C FLINGT WARNINGS Always operate in open areas, away adjust the engine from ALWAYS from factories, hospitals, schools, NEVER fly near power lines, behind the propeller, and do not buildings and houses etc. NEVER aerials or other dangerous areas allow any part of your body to be in fly your aircraft close to people or including airports, motorways etc.
