Page 1

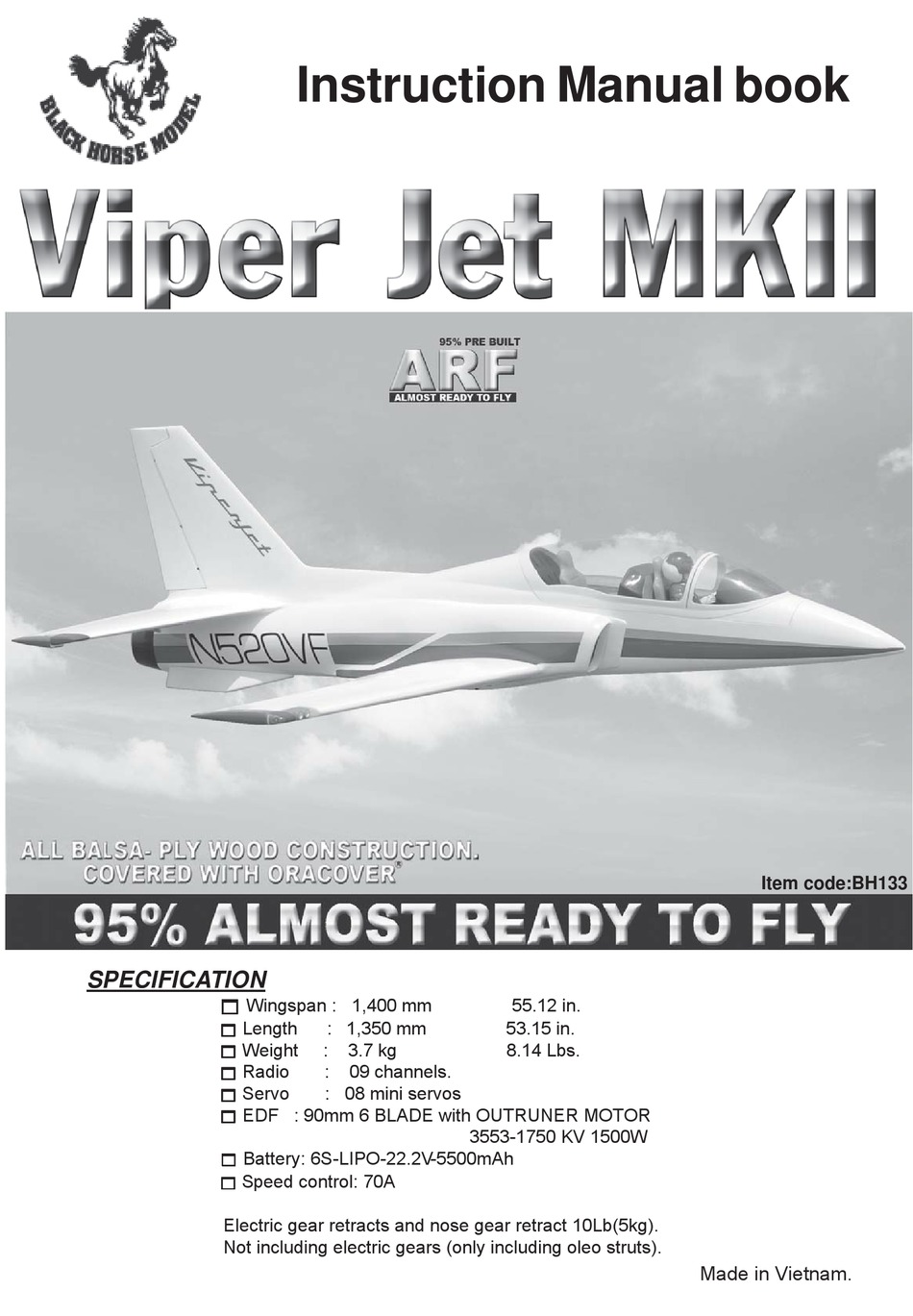

Instruction Manual book Item code:BH133 SPECIFICATION Wingspan : 1,400 mm 55.12 in. Length : 1,350 mm 53.15 in. Weight 3.7 kg 8.14 Lbs. Radio 09 channels.
Page 2
Item code: BH133 . INSTRUCTION MANUAL This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your Viper Jet MKII. Use the parts listing below to identify all parts. WARNING.
VIPER JET MKII - Item code: BH133 . INSTRUCTION MANUAL Caution: this model is not a toy! If you are a beginner to this type of powered model, please ask an experienced model flyer for help and support. If you attempt to operate the model without knowing what you are doing you could easily injure yourself or somebody else.
Page 4
VIPER JET MKII - Item code: BH133 . INSTRUCTION MANUAL REPLACEMENT LARGE PARTS D 2. D 1. A. Fuselage. D1. Carbon tube wing D2.Carbon tube horizontal stabilizer. B. Wing panel. G. Decal sheet C.Horizontal stabilizer. REPLACEMENT SMALL PARTS 4.Plastic part of tail fuselage.
VIPER JET MKII - Item code: BH133 . INSTRUCTION MANUAL 3) Using the thread as a guide and using masking tape, tape the servo lead to the end of the thread: carefully pull the thread out. When you have pulled the servo lead out, re- move the masking tape and the servo lead from the thread.
VIPER JET MKII - Item code: BH133 . INSTRUCTION MANUAL 2x10mm. Control horn the aileron. Secure Repeat the procedure for the other wing half. INSTALLING THE AILERON LINKAGES. Installing the aileron linkages as pictures below. Repeat the procedure for the other wing half.
VIPER JET MKII - Item code: BH133 . INSTRUCTION MANUAL 2.INSTALLING THE FLAP CONTROL HORN. II. FLAP SERVO. Flap control horn 1.INSTALLING THE FLAP SERVOS. Flap. A+B Epoxy PLUS glue Electric wire 2x10mm. Secure. Flap control horn. 3. INSTALLING THE FLAP LINKAGES.
Page 8
VIPER JET MKII - Item code: BH133 . INSTRUCTION MANUAL Bottom side. Flap Aileron. Repeat the procedure for the other wing half. INSTALLING OLEO STRUTS LANDING GEAR. PARTS REQUIRED 3x15mm. Electric retract 3x15mm. (not included) Secure. 3x15mm.
Page 9
VIPER JET MKII - Item code: BH133 . INSTRUCTION MANUAL Cut & trim a rectangle 4x8mm through plastic for mounting of electric wire lead out. Secure. 4 x 8 mm Secure. Repeat the procedure for the other gear. Bottom side.
VIPER JET MKII - Item code: BH133 . INSTRUCTION MANUAL INSTALLING THE ELEVATOR SERVOS. See picture below. .Plastic parts of tail fuselage. Bottom side. A+B Epoxy PLUS glue A+B Epoxy Elevator PLUS glue Servo 2x10mm. Secure. Repeat the procedure for the...
VIPER JET MKII - Item code: BH133 . INSTRUCTION MANUAL ELEVATOR CONTROL HORN INSTALLATION. Elevator control horn install as same as the way of aileron control horn. Please see pic- E l e v a t o r tures below.
Page 13
VIPER JET MKII - Item code: BH133 . INSTRUCTION MANUAL E p o x y glue. C/A glue. Epoxy glue.
VIPER JET MKII - Item code: BH133 . INSTRUCTION MANUAL RUDDER PUSHROD INSTALLATION. Rudder pushrod install as same as the way of aileron pushrod. Secure. 35mm. RUDDER CONTROL HORN INSTALLA- TION. Rudder pushrod Rudder control horn install as same as the way of aileron control horn.
Page 16
VIPER JET MKII - Item code: BH133 . INSTRUCTION MANUAL Secure. Secure. wire cable. INSTALLING OLEO STRUT NOSE GEAR. See picture below: wire cable. INSTALLING SERVO NOSE GEAR. See picture below: Servo nose gear 3x 15mm...
Page 17
VIPER JET MKII - Item code: BH133 . INSTRUCTION MANUAL Servo nose gear INSTALLING THE RECEIVER AND BATTERY. 1. Plug the servo leads and the switch lead into the receiver . You may want to plug...
VIPER JET MKII - Item code: BH133 . INSTRUCTION MANUAL C/A glue. WING ATTACHMENT. Locate the carbon tube wing dihedral brace. Carbon 12mm tube 480mm receiver Battery of EDF. Bottom side. INSTALLING THE FUSELAGE TOP HATCH. Secure.
Page 19
VIPER JET MKII - Item code: BH133 . INSTRUCTION MANUAL Plastic parts bottom tail fuselage. Left wing. A+B Epoxy PLUS glue Plywood of vertical stabilizer . Secure.
Page 20
VIPER JET MKII - Item code: BH133 . INSTRUCTION MANUAL With the wing attached to the fuselage, all parts of the model installed ( ready to fly), and empty fuel tanks, hold the model at the marked balance point with the stabilizer level.
be fully extended and not coiled up inside the fuselage. 6) Properly balance the propeller. We wish you many safe and enjoy- able flights with your Viper Jet MKII.
