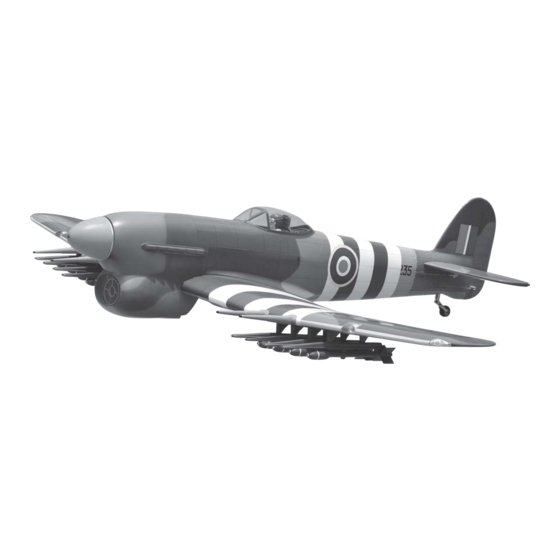

Black Horse Model HAWKER TYPHOON MK1B Instruction Manual Book
  1. Manuals
  2. Brands
  3. Black Horse Model Manuals
  4. Toy
  5. HAWKER TYPHOON MK1B
  6. Instruction manual book
Black Horse Model HAWKER TYPHOON MK1B Instruction Manual Book

Black Horse Model HAWKER TYPHOON MK1B Instruction Manual Book

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual book
SPECIFICATION
     Wingspan :
     Length
     Weight
     Radio
     Servo
 Engine




2,000 mm
1,600 mm
:
:
07 kg
:
08 channels.
:
09 servos.
:
O.S GT 22-33 CC Gas.
78.74 in.
62.99 in.
15.40 Lbs.
Made in Vietnam.
ITEM CODE:BH132.

Advertisement

Table of Contents
loading

Related Manuals for Black Horse Model HAWKER TYPHOON MK1B

Summary of Contents for Black Horse Model HAWKER TYPHOON MK1B

  • Page 1 Instruction Manual book ITEM CODE:BH132. SPECIFICATION      Wingspan : 2,000 mm 78.74 in.      Length 1,600 mm 62.99 in.      Weight 07 kg 15.40 Lbs.      Radio 08 channels.
  • Page 2 - Item code: BH132 This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your HAWKER TYPHOON MK1B. Use the parts listing below to identify all parts. WARNING.

  • Page 3: Safety Precaution

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Wing warp: Hold the panel twisted gently Caution: this model is not a toy! in the opposite direction to If you are a beginner to this type of powered the warp, and apply warm air...

  • Page 4: Installing The Aileron Servo

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 REPLACEMENT SMALL PARTS 1.Air retract main gear. 13.Air line set I. SERVO 2.Door mounting wheel. 14. Fuel Tank. INSTALLING THE AILERON SERVO. 3. Wheels. 15.Gun sets 4. Tail gear set. ...
  • Page 5 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132  2) Using a modeling knife, remove the cov- ering at possition show below.  3) Using the thread as a guide and using masking tape, tape the servo lead to the end of the thread: carefully pull the thread out.

  • Page 6: Installing The Aileron Linkages

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Secure. Aileron control horn. Repeat the procedure for the other wing INSTALLING THE AILERON half. LINKAGES. INSTALLING THE AILERON CONTROL HORN. Installing the aileron linkages as pictures Install aileron control horn as same below.
  • Page 7 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 II. FLAP 1.INSTALLING THE FLAP SERVO Flap 2x10mm. secure. Servo tray. 2.INSTALLING THE FLAP CONTROL HORN. Install flap control horn as same as picture below. thread Control horn Flap. Electric wire.
  • Page 8 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Bottom side. Repeat the procedure for the other wing half. Control horn of the flap. INSTALLING AIR RETRACTABLE LANDING GEAR. PARTS REQUIRED 3x15mm 3x15mm 3.INSTALLING THE FLAP LINKAGES. Installing the flap linkages as pictures below.
  • Page 9 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Drill a hole 6mm diameter Secure. hole 6mm 5x 40 mm 3x 15 mm...
  • Page 10 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Drill a hole Secure. 3x4mm 3x6mm Secure.
  • Page 11 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 INSTALLING THE AIR TANK Secure. See pictures below: Air tank Secure. Air tank Bottom side. Air tank Repeat the procedure for the other gear half.

  • Page 12: Installing The Engine Mount

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Drill a hole 5mm diameter C/A glue INSTALLING THE ENGINE MOUNT. See pictures below: 5x70mm Secure. Front view.

  • Page 13: Installing The Stopper Assembly

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 INSTALLING THE THROTTLE - CABLE.  1. Install one adjustable metal connector through the third hole out from the center of one servo arm, enlarge the hole in the servo arm using a 2mm drill bit to accommodate the servo connector.
  • Page 14 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132  7) Using a modeling knife, cut 3 lengths of fuel line 150mm long. Connect 2 lines to the 2 vent tubes and 1 line to the fuel pickup tube in the stopper.
  • Page 15 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Pushrod Choke. Right side Pushrod Fuel tank Choke.
  • Page 16 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132  3. Slide the cowl back over the engine and secure it in place using four wood screws. Left side. COWLING.  1. Slide the fiberglass cowl over the en- gine and line up the back edge of the cowl with the marks you made on the fuselage.

  • Page 17: Installing The Spinner

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132  4. Install the muffler and muffler extension INSTALLING THE SPINNER. onto the engine and make the cutout in the Install the spinner backplate, propeller and cowl for muffler clearance. Connect the fuel spinner cone.

  • Page 18: Installing The Elevator Servos

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 INSTALLING THE ELEVATOR SERVOS.  1. Install the rubber grommets and brass collets into the elevator servo. Test fit the Length 34mm. 5x 50mm. servo into the servo tray.  2. Mount the servo to the tray using the mounting screws provided with your radio system.
  • Page 19 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 9 mm Left elevator 295 mm Bottom side. 4x15mm Right elevator Secure.

  • Page 20: Elevator Pushrod Installation

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 ELEVATOR PUSHROD INSTALLATION.  Elevator pushrod install as same as the way of aileron pushrod. M2 lock nut. Bottom side. ELEVATOR CONTROL HORN INSTALLATION. Elevator control horn install as same as the way of aileron control horn.

  • Page 21: Rudder Installation

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Bottom side. Elevator pushrod Push. Elevator pushrod RUDDER INSTALLATION. Rudder servo install as same as method of elevator servo. See picture below: Bottom side. Rudder Servo A+B Epoxy PLus glue Aluminium.

  • Page 22: Rudder Control Horn Installa- Tion

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Aluminium A+B Epoxy PLus glue Aluminium Cut. A+B Epoxy PLus glue R u d d e r control RUDDER CONTROL HORN INSTALLA- TION. Rudder control horn install as same as the way of aileron control horn.

  • Page 23: Rudder Cable Installation

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 RUDDER CABLE INSTALLATION.  1. Rudder push - pull system install as same as picture below. 3 x 15mm Secure. MOUNTING THE TAIL WHEEL BRACKET.      1. Set the tail wheel assembly in place on the plywood plate.
  • Page 24 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 3x10mm 3x15mm Plastic parts of elevator and rudder pushrod. Secure...
  • Page 25 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 C/A glue. C/A glue. INSTALLING SERVO USING FOR VALVE CONTROL. valve control servo. Bottom side. Top side valve control servo.
  • Page 26 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132...

  • Page 27: Installing The Switch

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Secure Air tank Air supply Valve one way Right main gear wing Left main gear wing Valve control Valve control Secure. INSTALLING THE SWITCH.       1) Cut out the switch hole using a modeling knife.

  • Page 28: Wing Attachment

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Tie wrap. S w i t c h receiver. Batery of engine. S w i t c h Engine. INSTALLING THE RECEIVER AND BATTERY.       1. Plug the servo leads and the switch lead into the receiver.
  • Page 29 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Right wing. Secure. Secure. Left wing. See picture wing attach to fuselage. Installing the fuselage hatch as same as pic- ture below.
  • Page 30 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Bottom side. Right wing. Insert and secure. Bottom side. Installing Rocket. C/A glue.
  • Page 31 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 C/A glue. 3x10mm Secure. drill a hole 2mm. 5A.Rocket (Right)
  • Page 32 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Right wing. Left wing. C/A glue. Left wing. Bottom side. C/A glue. Top side. Gun sets 164mm. 154mm.
  • Page 33 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Accurately mark the balance point on the top of the wing on both sides of the fuselage. The balance point is located 130mm back from the leading edge. This is the balance point at which your model should balance for your first flights.

  • Page 34: Control Throws

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 CONTROL THROWS.       1) We highly recommend setting up a plane using the control throws listed.       2) The control throws should be meas- ured at the widest point of each control sur- face.
