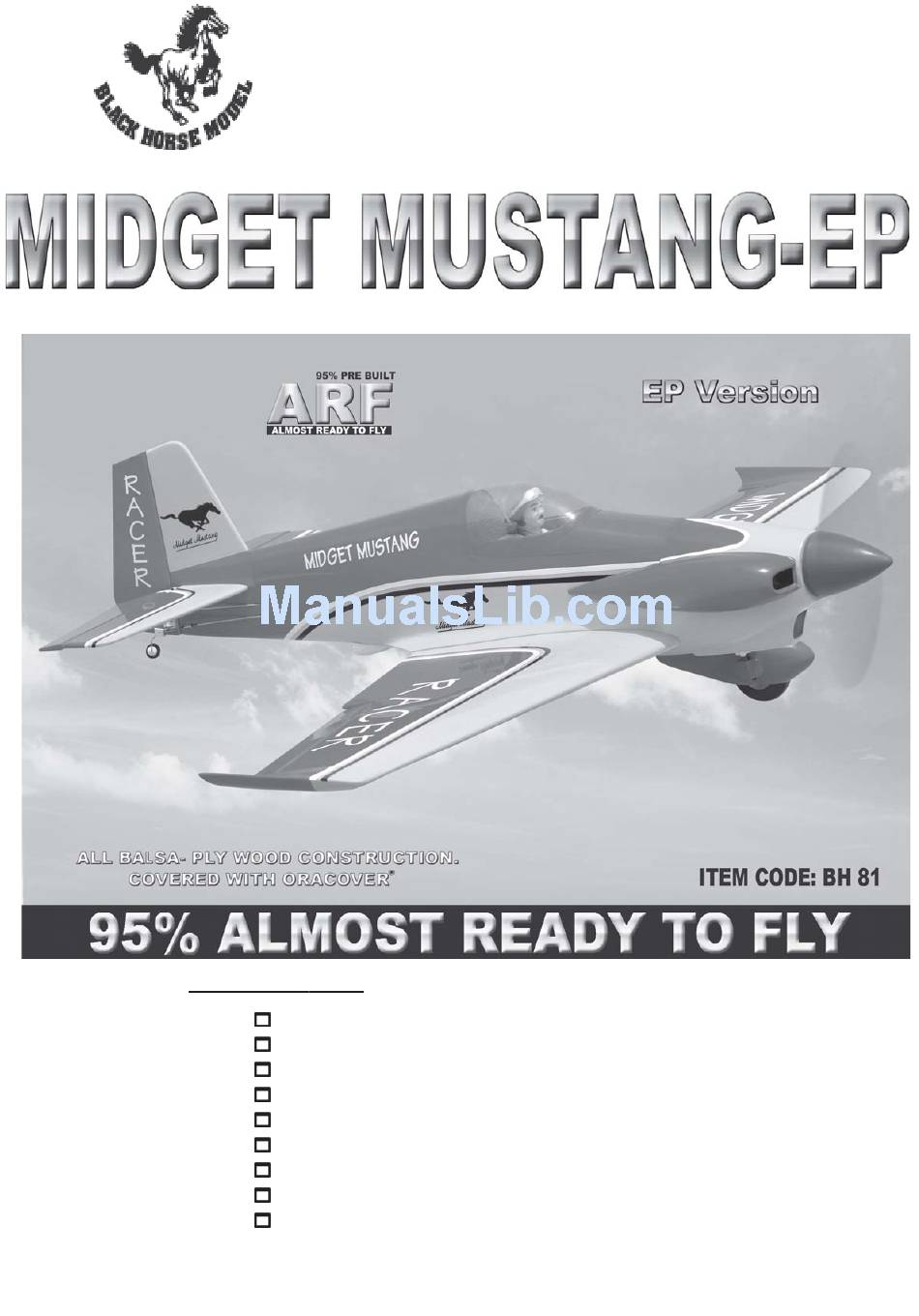

Black Horse Model Midget Mustang-EP Instruction Manual Book
Black Horse Model Midget Mustang-EP Instruction Manual Book

Black Horse Model Midget Mustang-EP Instruction Manual Book

95% almost ready to fly
Hide thumbs Also See for Midget Mustang-EP:

Advertisement

Quick Links

Instruction Manual book
SPECIFICATION
Wingspan :
Length
Weight
Radio
Servo
Motor
Battery
Speed control: 40A.
Propeller: 10 x 10.
1,000 mm
:
860 mm
:
1,4 kg
:
04 channels.
:
04 mini servos.
:
KMS 2820/05.
: 3 Cells-Li-Poly-11.1V 2.200 mAh.
39.37 in.
33.86 in.
3.08 Lbs.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Midget Mustang-EP and is the answer not in the manual?

Questions and answers

Summary of Contents for Black Horse Model Midget Mustang-EP

  • Page 1 Instruction Manual book SPECIFICATION Wingspan : 1,000 mm 39.37 in. Length 860 mm 33.86 in. Weight 1,4 kg 3.08 Lbs. Radio 04 channels. Servo 04 mini servos. Motor KMS 2820/05. Battery : 3 Cells-Li-Poly-11.1V 2.200 mAh. Speed control: 40A. Propeller: 10 x 10. Made in Vietnam.
  • Page 2 MIDGET MUSTANG-EP - Instruction Manual Item code: BH81 This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your MIDGET MUSTANG - EP. Use the parts listing below to identify all parts.
  • Page 3: Safety Precaution

    MIDGET MUSTANG-EP - INSTRUCTION MANUAL Item code: BH81 SAFETY PRECAUTION. + This is not a toy + Be sure that no other flyers are using your radio frequency. + Do not smoke near fuel + Store fuel in a cool, dry place, away from children and pets.
  • Page 4 MIDGET MUSTANG-EP - Instruction Manual Item code: BH81 C/A glue Bottom side Bottom side 2) Using a modeling knife, remove the cov- ering at possition show below. Remove covering C/A glue C/A glue Secure 3) Using the thread as a guide and using masking tape, tape the servo lead to the end of the thread: carefully pull the thread out.
  • Page 5 MIDGET MUSTANG-EP - INSTRUCTION MANUAL Item code: BH81 Straitgh line. 2) Insert aileron control horn to the aileron. 2x10mm. 3) Drill two 2mm holes through the aileron using the control horn as a guide and screw the control horn in place.
  • Page 6: Installing The Aileron Linkages

    MIDGET MUSTANG-EP - Instruction Manual Item code: BH81 INSTALLING THE AILERON LINKAGES. Epoxy glue. Aileron pushrod. Epoxy glue. Aileron pushrod. C/A glue Repeat the procedure for the other wing half. INSTALLING THE WING TIP Bottom side Top side Repeat the procedure for the other wing...
  • Page 7 MIDGET MUSTANG-EP - INSTRUCTION MANUAL Item code: BH81 MAIN GEAR INSTALATION. PARTS REQUIRED Mark point Remove covering 3 x 12mm Secure...
  • Page 8 MIDGET MUSTANG-EP - Instruction Manual Item code: BH81 Secure glue C/A glue Cut. 3 x 12mm Drill 2mm hole...
  • Page 9 MIDGET MUSTANG-EP - INSTRUCTION MANUAL Item code: BH81 INSTALLING ELECTRIC MOTOR. See pictures below: C/A glue 3 x 15mm Motor mount wood C/A glue. Repeat the procedure for the other wing half.
  • Page 10 MIDGET MUSTANG-EP - Instruction Manual Item code: BH81 Push C/A glue. Rotor shaft Motor Epoxy glue. Secure. Front view. Epoxy glue. Right side...
  • Page 11: Installing The Spinner

    MIDGET MUSTANG-EP - INSTRUCTION MANUAL Item code: BH81 3 x 12mm Right side Machine screw. Left side COWLING. 1. Slide the fiberglass cowl over the en- gine and line up the back edge of the cowl with the marks you made on the fuselage.
  • Page 12: Horizontal Stabilizer

    MIDGET MUSTANG-EP - Instruction Manual Item code: BH81 HORIZONTAL STABILIZER. See pictures below: Secure. Top side ELEVATOR INSTALLATION. SERVO INSTALLATION. 1. Install the rubber grommets and brass collets into the elevator servo. Test fit the servo Bottom side into the servo tray.
  • Page 13 MIDGET MUSTANG-EP - INSTRUCTION MANUAL Item code: BH81 Remove covering C/A glue C/A glue 3. Mark the shape of the vertical on the left and right sides onto the horizontal stabilizer using a felt-tip pen C/A glue Mark line Bottom side 4.
  • Page 14: Elevator Control Horn Installa- Tion

    MIDGET MUSTANG-EP - Instruction Manual Item code: BH81 C/A glue 5. When you are sure that everything is aligned correctly, mix up a generous amount of 30 minute epoxy. Apply a thin layer to the top and bottom of the stabilizer mounting area...
  • Page 15: Elevator Pushrod Installation

    MIDGET MUSTANG-EP - INSTRUCTION MANUAL Item code: BH81 Drill a hole 2mm diameter. E l e v a t o r E l e v a t o r pushrod pushrod Bottom side Secure. Top side ELEVATOR PUSHROD INSTALLATION. Elevator and rudder pushrod install as same as the way of aileron pushrod.
  • Page 16: Vertical Installation

    MIDGET MUSTANG-EP - Instruction Manual Item code: BH81 Secure Elevator servo. Secure VERTICAL INSTALLATION. Rudder servo install as same as method of elevator servo. See picture below: C/A glue Secure...
  • Page 17 MIDGET MUSTANG-EP - INSTRUCTION MANUAL Item code: BH81 C/A glue Hingle slot 2. Put the rudder into the fuselage as same as picture below. 3. Mark the shape of the vertical on the left and right side of the rudder on to the hori- zontal stabilizer using a felt-tip pen.
  • Page 18 MIDGET MUSTANG-EP - Instruction Manual Item code: BH81 Also carefully remove the covering from Epoxy glue the horizontal fin as below the lines which you drew as same picture below. Remove covering Epoxy glue C/A glue 5. Put the vertical stabilizer back in place.
  • Page 19: Rudder Control Horn Installa- Tion

    MIDGET MUSTANG-EP - INSTRUCTION MANUAL Item code: BH81 RUDDER CONTROL HORN INSTALLA- TION. Rudder control horn install as same as the way of aileron control horn. Please see pic- tures below. Secure RUDDER PUSHROD INSTALLATION. Rudder pushrod install as same as the way of aileron pushrod.
  • Page 20 MIDGET MUSTANG-EP - Instruction Manual Item code: BH81 2. Wrap the receiver and battery pack in the protective foam to protect them from vi- bration. Use a rubber band or masking tape to hold the foam in place. 3. Position the battery pack and receiver behind the fuel tank.
  • Page 21: Wing Attachment

    MIDGET MUSTANG-EP - INSTRUCTION MANUAL Item code: BH81 Battery Recever WING ATTACHMENT. See picture wing attach to fuselage. Wing bolt. WING ATTACHMENT. Locate the aluminium wing dihedral brace. Installing the fuselage hatch as same as pic- ture below. Wing bolt.
  • Page 22 MIDGET MUSTANG-EP - Instruction Manual Item code: BH81 BALANCING. 1) It is critical that your airplane be bal- anced correctly. Improper balance will cause your plane to lose control and crash. THE CENTER OF GRAVITY IS LOCATED 100MM BACK FROM THE LEADING EDGE OF THE WING.
  • Page 23: Control Throws

    MIDGET MUSTANG-EP - INSTRUCTION MANUAL Item code: BH81 CONTROL THROWS. 1) We highly recommend setting up a plane using the control throws listed. 2) The control throws should be meas- ured at the widest point of each control sur- face.
