Black Horse Model YAK 54 Instruction Manual Book
  1. Manuals
  2. Brands
  3. Black Horse Model Manuals
  4. Toy
  5. YAK 54
  6. Instruction manual book

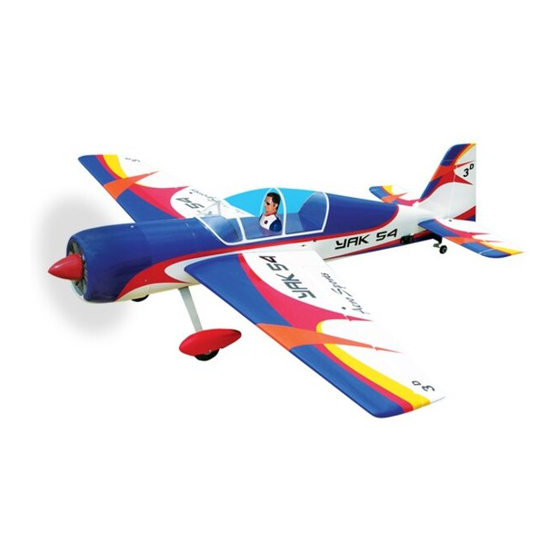

Black Horse Model YAK 54 Instruction Manual Book

Black horse model yak 54 - 95% arf
Hide thumbs Also See for YAK 54:
Table of Contents

Advertisement

Quick Links

Download this manual
SPECIFICATION
Wingspan :
Length
:
125cm.
Weight
:
Parts Listing required (not included).
Glow Engine : 40-46 cu.in. 2 stroke.
or 52 cu.in.
INSTRUCTION MANUAL BOOK
144cm.
56.69in.
49.21in.
2.4kg.
5.28lbs.
4 stroke.
Electric Motor: AXI 2826.10.
Battery: 4-5 Cells-Li-Poly-14.8-18.5v- 5.000 mAh - 20 c .
Speed Control:
Propeller :
Recommended R.C: 4 channel with
60A.
13 x 6.
4-5 servos.
Made in Vietnam.
