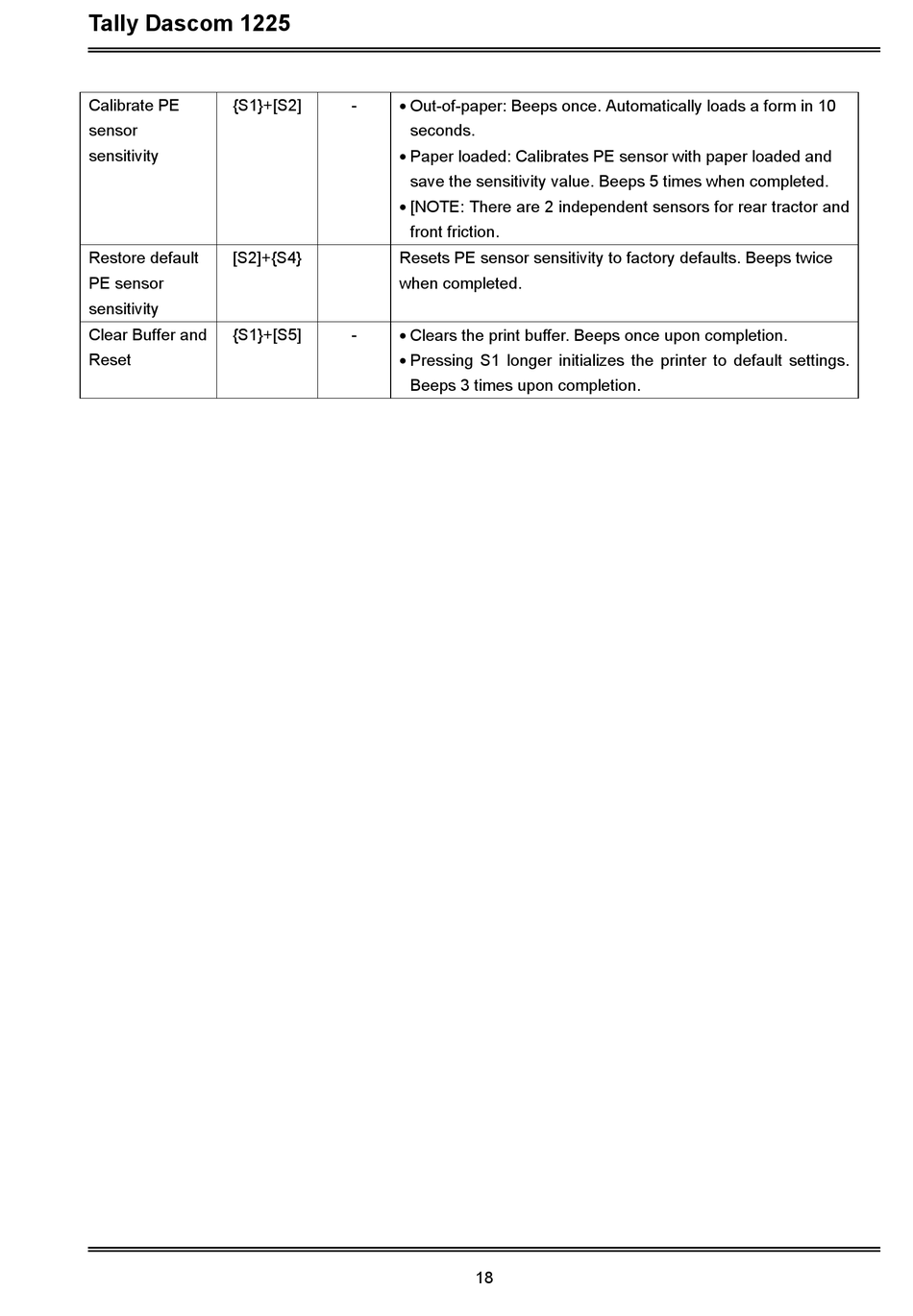

Tally Dascom 1225 User Manual page 32

Tally Dascom 1225
Calibrate PE {S1}+[S2]
sensor
sensitivity
Restore default [S2]+{S4}
PE sensor
sensitivity
Clear Buffer and {S1}+[S5]
Reset
 Out-of-paper: Beeps once. Automatically loads a form in 10
-
seconds.
 Paper loaded: Calibrates PE sensor with paper loaded and
save the sensitivity value. Beeps 5 times when completed.
 [NOTE: There are 2 independent sensors for rear tractor and
front friction.
Resets PE sensor sensitivity to factory defaults. Beeps twice
when completed.
 Clears the print buffer. Beeps once upon completion.
-
 Pressing S1 longer initializes the printer to default settings.
Beeps 3 times upon completion.
18
