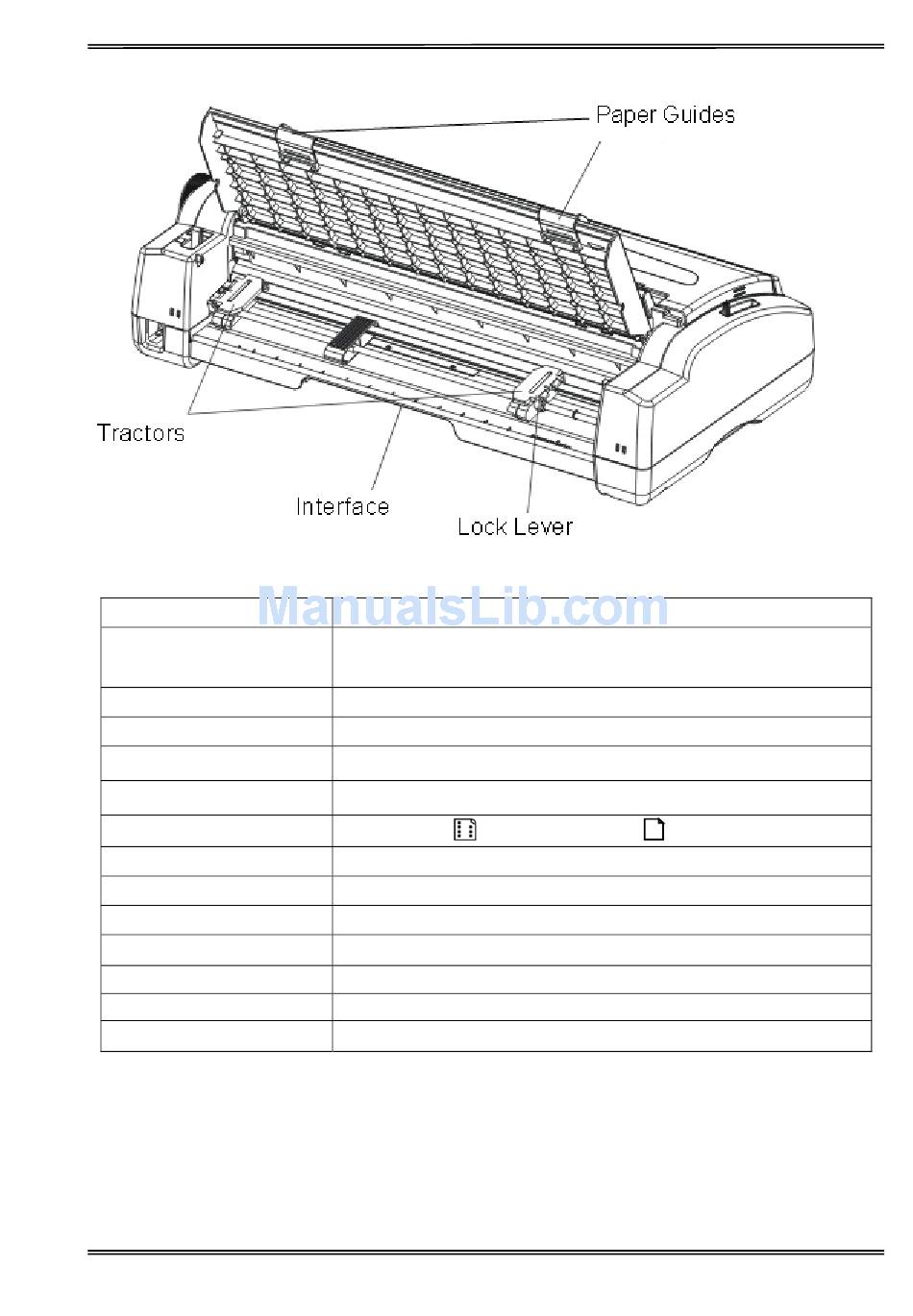

Tally Dascom 1225
Component
Gap Lever
Paper Guides
Print Head
Cover
Control Panel
Paper Feed Lever
Paper Feed Knob
Power Switch
Ribbon Cartridge
Ribbon Frame
Tractors
Power Receptacle
Interface
Function
Controls printing impact or density.
Adjusts the print gap lever according to the thickness of paper.
Adjusts positioning of single sheet paper.
24-pin printing mechanism
Protects print head and other components inside, and reduce noise.
Shows printer status, for printer setup.
Two positions: = continuous forms;
Manual feed or vertical positioning of paper
Power printer ON or OFF
Install ribbon in the printer.
For guiding ribbon installation on print head.
For feeding and adjustment of continuous forms.
Connects power cord to the printer.
Connects interface cables from the host.
3
= single sheet paper
