Battery Back Up Installation

Battery Back Up (optional)
The opener has provision for a Battery Back Up kit to
allow continued door operation without mains power.
Installation
1. Disconnect power to the opener.
2. Remove screws and swing the cover open (Fig. 37).
3. Mount battery pack and secure with item 11 and 12.
4. Mount the SBY-3 Charger Board on the pre-mounted
hex spacers and secure with three (3) M4x8 screws.
5. Feed the 2-wire battery harness through the grommet
on the base plate and connect to the SBY-3.
6. Feed the charger harness from SBY-3 to the control
board. Plug the 4-pin connector marked "SBY-3"
onto the control board.
Warning: After the next step the opener may
become active (even when power is off) due to a
residual charge in the batteries.
7. Connect item 3 and 7 together (Fig. 37).
8. Reconnect power.
Testing Battery Back Up
1. Press either the OPERATE button or transmitter
to activate the opener.
2. Whilst the door is in motion disconnect
mains power - the opener should continue to
operate.
Note: Wait for the door to complete its travel
3. Press either the OPERATE button or transmitter
to activate the opener.
4. Whilst the door is in motion re-connect power.
The door should complete the cycle as normal.
Troubleshooting
If door stops or moves very slowly under battery
power, then the batteries may have little to no
charge.
To remedy this connect mains power and leave the
batteries to charge. The batteries may take 24 to 48
hours to reach their maximum charge capacity.
SecuraLift ® Trio Overhead Garage Door Opener
Owner Installation Instructions
before proceeding to the next step

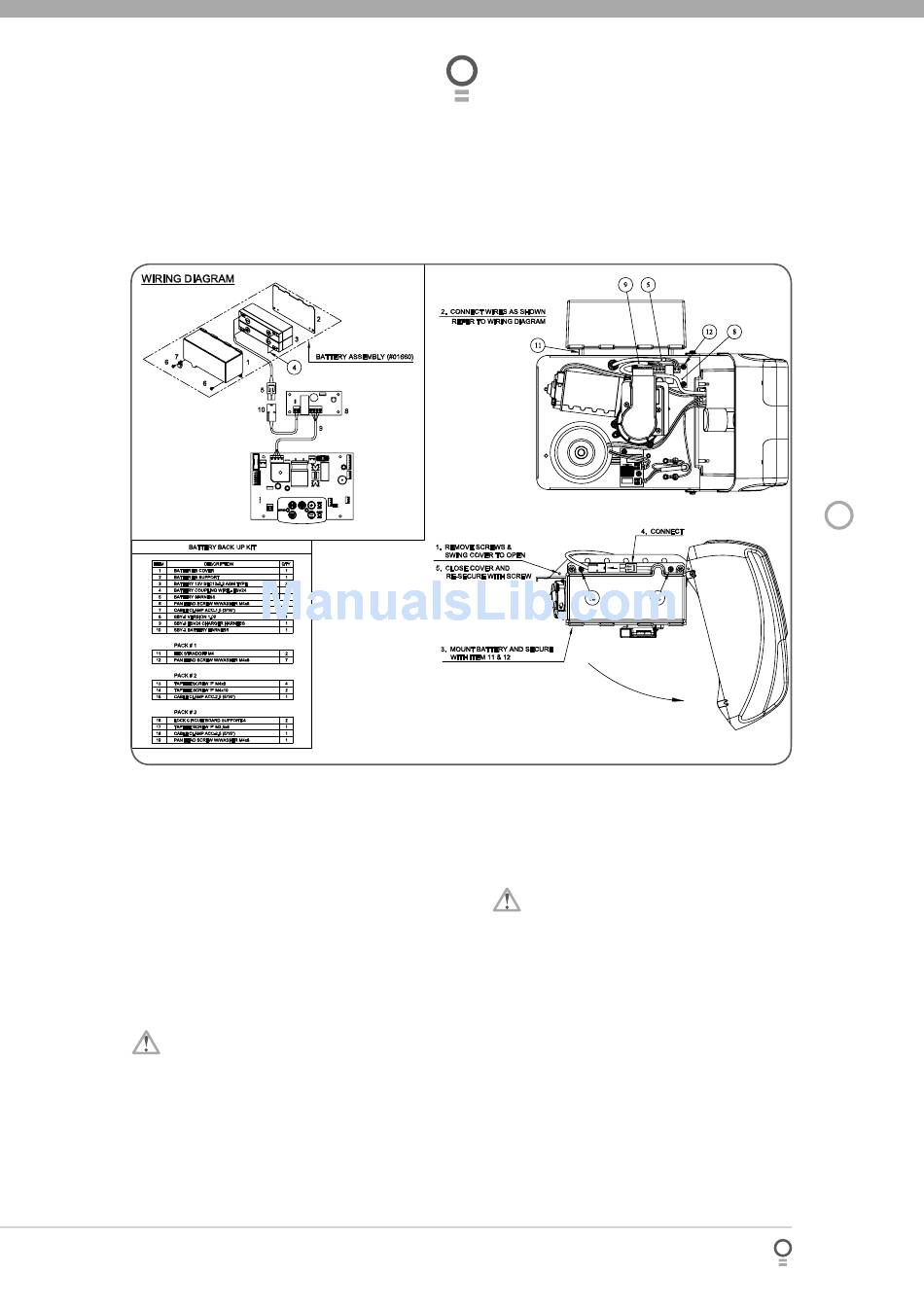

fi g 37
23
