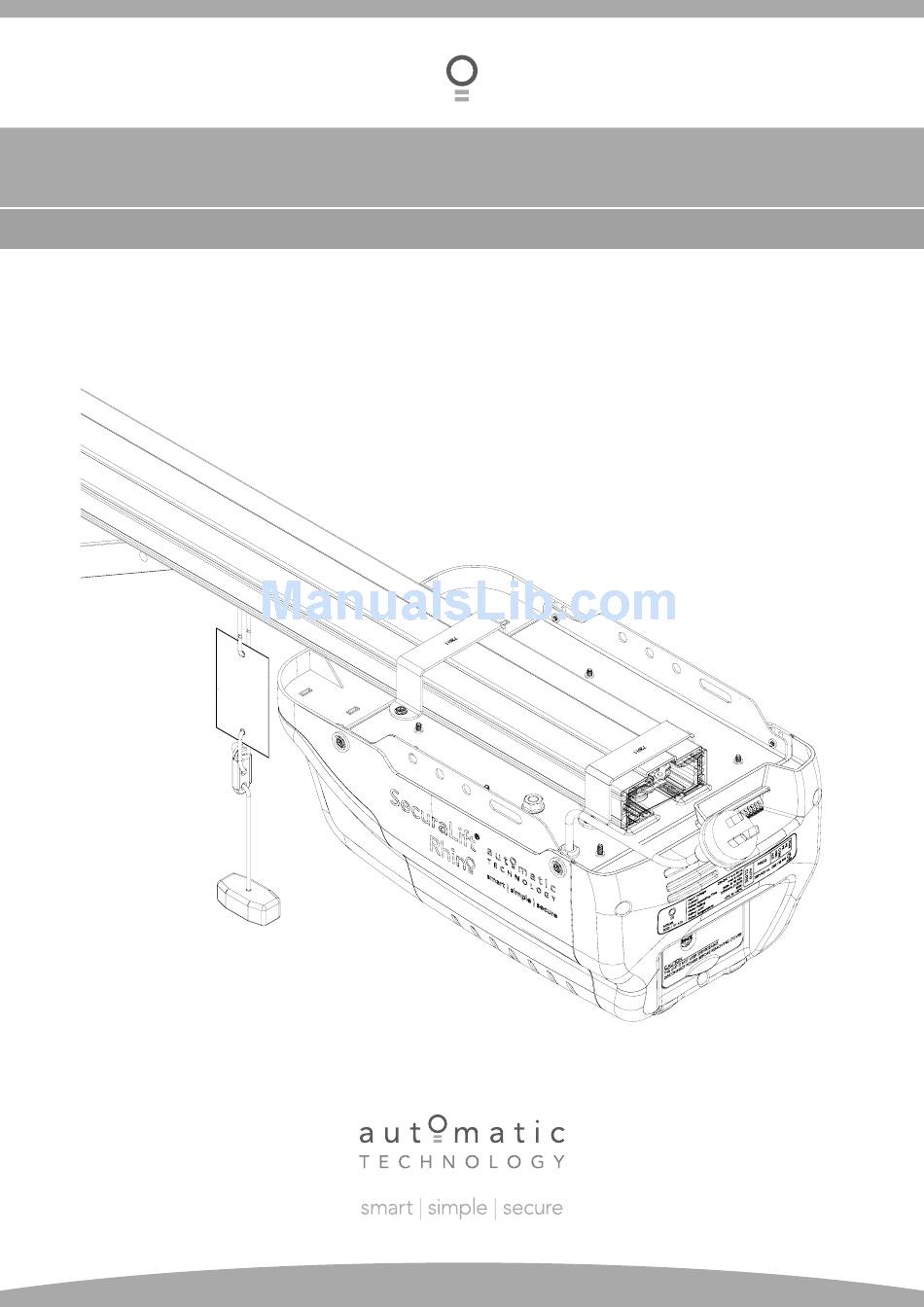

- Page 1 ® SecuraLift Rhino AC Overhead Garage Door Opener INSTALLATION INSTRUCTIONS | OWNER’S COPY...
- Page 2 Please save these instructions for future reference. Automatic Technology Australia Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of an Automatic Technology Australia Pty Ltd Garage Door Opener.
-
Page 3: Table Of Contents
SecuraLift ® Rhino Overhead Garage Door Opener Important Safety Instructions Features Operating Controls Package Contents Installation Knockdown C-Rail Assembly C-Rail Assembly Determine Door Type Mounting on a Track Type Door Mounting on a Non-Track Type Door 15 Mounting Door Bracket & Arms Setting Travel Limits Safety Obstruction Force Test Adjusting Safety Obstruction Force... -
Page 4: Important Safety Instructions
In most countries P.E. Beams are mandatory on all automated garage doors. For a small ® additional outlay Automatic Technology recommends that P.E. Beams be installed with the SecuraLift Rhino Overhead Garage Door Opener. DO NOT operate the SecuraLift® Rhino Overhead Garage Door Opener unless the garage door is in full view and free from objects such as cars and children/people. - Page 5 The garage door must be well balanced. Sticking or binding doors must be repaired by a qualifi ed garage door installer prior to installation of the SecuraLift® Rhino Overhead Garage Door Opener. Frequently examine the installation, in particular cables, springs and mountings for signs of wear, damage or imbalance.
-
Page 6: Features
Features Thank you for purchasing the SecuraLift® Rhino Overhead Garage Door Opener. Designed to suit sectional, overhead and one piece tilt up doors, the components and materials used ensure this opener will provide years of smart, simple and secure operation. Listed below are just some of the many world leading features: Operation To open or close the door simply press a button on a TrioCode™... - Page 7 Security Code Store The SecuraLift® Rhino Overhead Garage Door Opener will store up to 14 different transmitters codes. Overload Indicator When the maximum opening and closing force capacity of the SecuraLift® Rhino Overhead Garage Door Opener is exceeded an audible beeper will sound to indicate that an overload has occurred.
-
Page 8: Operating Controls
Operating Controls P.E. Beams Auto-Close Shunt has to be placed on to enable the Auto-Close feature. PROG INPUT is used to connect the PG-3 Universal Handheld Programmer to edit control and receiver functions. Terminal Block: PWR - Used to power devices such as P.E. Beams and external receiver (100 milliamp max). PE - Used to connect to P.E. - Page 9 Operating Controls Installation Instructions & Owner’s Manual SecuraLift® Rhino...
-
Page 10: Package Contents
Package contents Drive Unit 1 x SecuraLift ® Rhino drive unit (Fig. 01) 1 x Transmitter pack (Fig. 01) (Pack includes two keyring transmitters and batteries) 1 x Wall mount transmitter with battery 2 x Door attachment arms (Fig. 01) 1 x Accessory and hardware pack (Fig. -
Page 11: Installation
Knockdown C-Rail Assembly Start Swing Swing and straighten 4 Cut cable tie Slide sleeve 5 Swing Slide sleeve Swing and straighten Turn tracks around 9 Tension 1/2” hex bolt Screws Screws To adjust the chain tension, move the shuttle to middle of track, then using a spring scale measure the force required to pull the shuttle (The recommended pull force is 8kg (80N)). -
Page 12: C-Rail Assembly
C-Rail Assembly IMPORTANT NOTE: Do not power up the drive unit before assembling to the C-Rail. Step 2 - Centre the Shuttle If not already disengaged, fl ick the yellow clutch lever up, so that it sits perpendicular to the rail. Thread the loose and of the manual cord through the hole in the yellow clutch lever (Fig. -
Page 13: Determine Door Type
Determine the Door Type Step 4 - Determine the Door Type Proceed from Step 5 Determine which type of garage door you have as illustrated in (Fig. 09) to (Fig. 11). For a sectional (panel) door on tracks (Fig. 09) proceed with the installation from Step 5. -
Page 14: Mounting On A Track Type Door
Mounting on a Track Type Door WARNING: Make sure concrete, brick wall or timber lintels are solid and sound so as to form a Level secure mounting platform. The opener must be securely Level fastened to structural supports otherwise serious personal injury and/or property damage may ensue. -
Page 15: Mounting On A Non-Track Type Door
Mounting on a Non-Track Type Door WARNING: Make sure concrete, brick wall or Centre of door timber lintels are solid and sound so as to form a secure mounting platform. The opener must be securely fastened to structural supports otherwise serious personal injury and/or property damage may ensue. -
Page 16: Mounting Door Bracket & Arms
Mounting Door Bracket and Arms Step 12.1 - Alternative Mounting Option Drill hole at centre of The opener can be fastened to the roof by driving a bolt track (recommended bolt through the C-Rail into a structural timber support. The size M6 or M8) bolt head’s height must not exceed 6mm (Fig. -
Page 17: Setting Travel Limits
Setting Travel Limits NOTE: The OPERATE button will not function until the open and close limit positions are set. NOTE: If P.E. Beams is to be used it must be installed before setting the travel limits. Step 15.1 - Remove Controls Cover Remove the controls cover to access the control panel (Fig. - Page 18 Setting Travel Limits Step 15.6 - Set the Open Limit Position Press and hold the PLUS (+) button (Fig. 26) until the door reaches the desired open limit position. With a small screwdriver turn the green open limit adjust screw (Fig. 27) clockwise until the green OPEN LIMIT LED is illuminates.
-
Page 19: Safety Obstruction Force Test
Safety Obstruction Force Test Please take care when testing the Safety Obstruction Force. Excessive force may cause SERIOUS PERSONAL INJURY and/or PROPERTY DAMAGE can result from failure to follow this warning. Step 16.1 - Testing Close Cycle Press the OPERATE button to open the door (Fig. 28). -
Page 20: Adjusting Safety Obstruction Force
Adjusting Safety Obstruction Force Adjusting Safety Obstruction Force The Safety Obstruction Force is calculated automatically and set in the memory on the opener during setup. It is usually not necessary to adjust the Safety Obstruction Force. The only time the force may need to be increased is due to environmental conditions, for example, windy or dusty areas, and areas with extreme temperature changes. -
Page 21: Coding Transmitters
Coding Transmitters Step 17.1 - Storing the Transmitter Code The opener can only operate from transmitters that have been programmed into its receiver. The receiver needs to learn the codes of any transmitter that will be used with the operator. Up to fourteen (14) codes can be stored in the receiver’s memory. -
Page 22: Vacation Mode
Coding Transmitters Step 17.3 - Setting the Transmitter to Operate Vacation Mode The opener can be programmed into a “Vacation Mode” where the opener will not respond to any transmitter except one pre-programmed unit. Press CODE SET Press CODE SET button three times. The CODE button three times SET LED will illuminate and the courtesy light will fl... -
Page 23: Pet (Pedestrian) Mode
Coding Transmitters Step 17.5 - Setting the Transmitter to Operate Pet (Pedestrian) Mode The opener can be programmed into a “Pet Mode” where the door opens partially to allow pets to enter/exit the garage: Press the CODE SET button fi ve times, the CODE Press CODE SET SET LED will illuminate and the courtesy light will button fi... -
Page 24: Accessories
Accessories Terminal Block A variety of wired accessory items can be connected to the terminal block such as P.E. Beams, wall switch, door status indicator and more. The terminal block also features and auxiliary output for controlling other devices from your transmitter. These can include: an alarm system, external lighting, or an automatic gate. -
Page 25: P.e. Beams
STRONGLY recommend the fi tting of P.E. Beams. In most countries P.E. Beams are mandatory on all garage doors fi tted with automatic openers. For a small additional outlay, Automatic Technology recommends that P.E. Beams be installed with the automatic opener for additional safety and peace of mind. -
Page 26: Troubleshooting Guide
Troubleshooting Guide Symptom Possible cause Remedy The opener does not work from Garage door in poor condition e.g. Check the door’s operation - see the transmitter springs may be broken monthly maintenance (Page 30) The opener does not have power Plug a device e.g. -
Page 27: Default Settings & Specifi Cations
Default Settings & Specifi cations Factory default settings Default Step Minimum Maximum Maximum motor run time 40 seconds Courtesy light time 4 minutes (approx.) Obstruction force margin Auto-Close time 30 seconds Technical specifi cations Power supply 230V - 240Va.c. 50Hz Transformer rating 24Vd.c. -
Page 28: Parameters
Parameters DOOR STATUS INDICATORS Door opener state OPEN LED (green) CLOSE LED (red) Beeper Open Close Opening Flashing Closing Flashing Door travel stopped Flashing Flashing Door obstructed when opening Flashing Door obstructed when closing Flashing Beeps while door is moving Opener overloaded Alternating fl... - Page 29 Parameters BUTTON FUNCTIONS Button Function OPERATE Opens/stops/closes the door CODE SET Codes a transmitter button for operate function FORCE MARGIN SET & PLUS (+) Increases the obstruction force margin setting FORCE MARGIN SET & MINUS (-) Decreases the obstruction force margin setting FORCE MARGIN SET (then) LIMIT Reloads the factory set default obstruction force margin setting LIMIT SET (for 6 seconds)
-
Page 30: Maintenance
Maintenance Maintenance Yearly The SERVICE LED will indicate the requirement for Automatic Technology suggests you contact your installer a service and/or adjustment. To reset the SERVICE to perform an annual door service. LED when the door is serviced, reprogram the Door Travel Limits and the Door Travel Force –... - Page 31 Maintenance Service Record Record any maintenance in the following table to assist in any warranty service. Date Service by Signature Invoice No. Amount Installation Instructions & Owner’s Manual SecuraLift® Rhino...
-
Page 32: Parts List
Spare Parts List Order Order Item Description Item Description Code# Code MAIN COVER ASSEMBLY AT1 71113 SENSOR ASSY SV1 01689 CONTROLS LID AT1 SP 72173 TRACK BRACKET VP2 04590 DIFFUSER ASSEMBLY SV1 71456 EXTRUSION 1050 END VP2 72252 LED LIGHT MODULE 71215 CRAIL 1050 VP1ASSY 72251... - Page 33 Spare Parts List Installation Instructions & Owner’s Manual SecuraLift® Rhino...
-
Page 34: Warranty
Trade Practices Act 1974 (Cth). 2. Subject to all of the matters set out below, Automatic Technology Australia Pty Ltd (“ATA”) warrants: (a) swing and sliding gate opener drive units for twelve (12) months or 2500 cycles, whichever occurs fi rst;... -
Page 35: Installation Instructions & Owner's Manual Securalift® Rhino
Installation Instructions & Owner’s Manual SecuraLift® Rhino... - Page 36 © June 2007 Automatic Technology (Australia) Pty Ltd. All rights reserved. TrioCode™ and SecuraLift® Rhino are trademarks of Automatic Technology (Australia) Pty Ltd. No part of this document may be reproduced without prior permission. In an ongoing commitment to product quality we reserve the right to change specifi cation without notice. E&OE.
