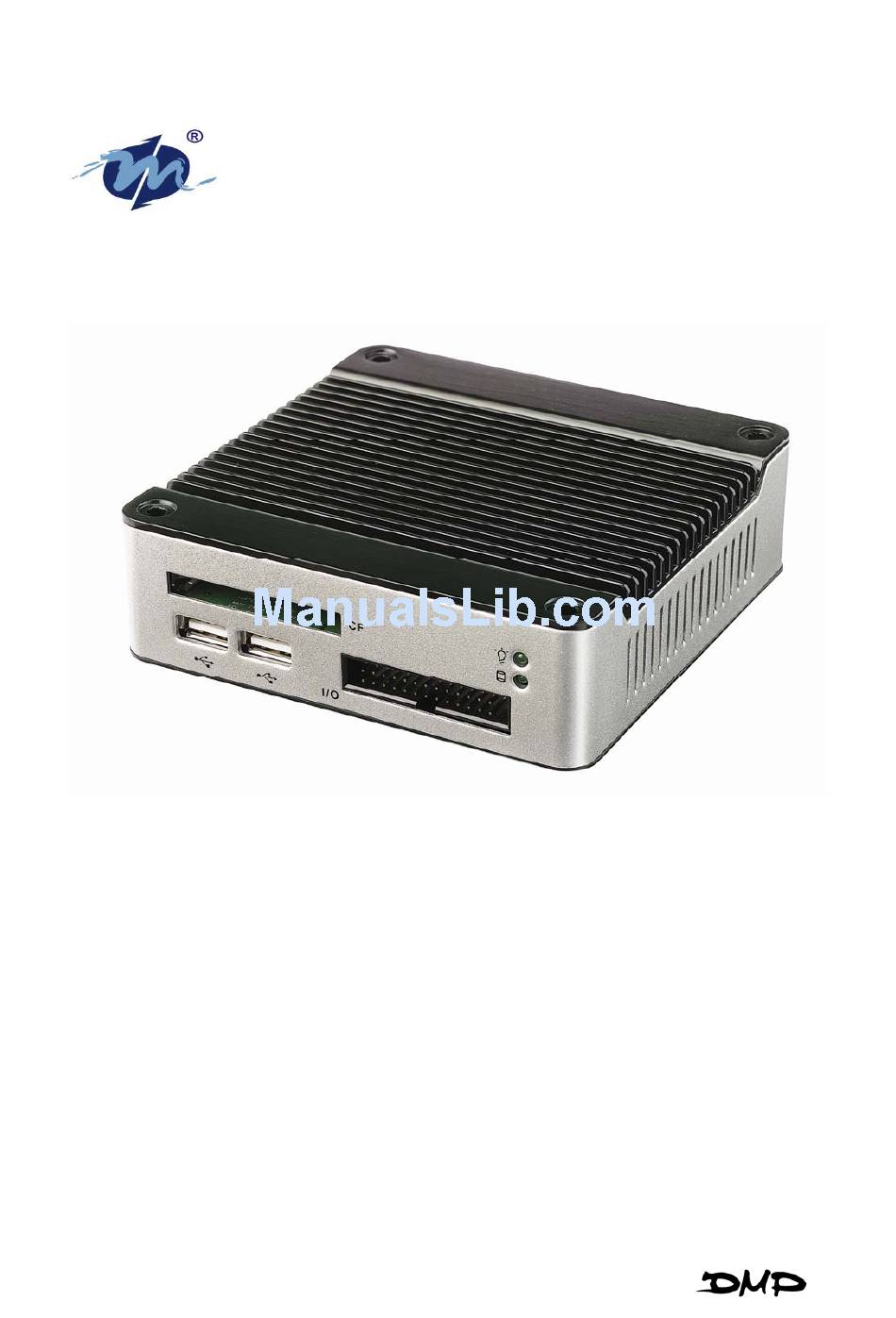

- Page 1 DM&P Group DMP Electronics Inc...
- Page 2 OTICE TO SERS DMP Electronics Inc. provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to this manual, the software, or such other information.
- Page 3 WNER ECORD The serial number of this product is located at the rear panel of your eBox-2300SX series. Refer to the model and serial number when you contact your nearest dealer or DMP offices for services. The Model No. of this product is also indicated on the product label of your gift box as: eBox-2300SX, eBox-2300SX-H, eBox-2300SX-M and eBox- 2300SX-JSK.
- Page 4 Never touch un-insulated terminals or wire unless your power adaptor and display monitor are disconnected. Locate eBox-2300SX as close as possible to the socket outline for easy access and to avoid force caused by entangling of your arms with surrounding cables from the eBox-2300SX.
- Page 5 eBox-2300SX...
- Page 6 RODUCT ESCRIPTION With this product, herewith also known as eBox-2300SX, which is a simplified & an economical design of an embedded eBox-2300SX for Special Purpose Personal Computing. The basic specification of this product comprises of the x86 technology design, and with onboard 128MB System memory, Display, USB, Keyboard, PS2 Mouse, LAN, and Audio Interfaces.
-
Page 7: Table Of Contents
PEAKER ARPHONE ........7 ONNECTING THE EYBOARD AND OUSE ............7 ONNECTING RINTER PORT 5 – BIOS ..................... 8 eBox-2300SX ..........8 ECONFIGURING 6 – T ............. 9 ECHNICAL PECIFICATION 7 – T VESA PC ............. 10 AKING ................... 10 TORING .......... - Page 8 CPU B ..........14 UMMARY ABLE FOR OARD eBOX-2300SX....14 RONT ONNECTORS UTLINE FOR eBOX-2300SX ..... 15 ONNECTORS UTLINE FOR ..............16 SSIGNMENTS ........... 18 ARRANTY ERMS AND ONDITION ................18 ARRANTY ............. 18 ERVICE AND UPPORT (RMA) P ..... 18...
-
Page 9: Unpacking Your E Box
NPACKING MBED You have just acquired eBox-2300SX, the world’s smallest Congratulation! and compact PC (See Figure 1), please check the following items: -2300SX ACKING IST FOR SERIES Item Description Q’ty eBox-2300SX VEA PC Max. 15-watts External Power Adaptor, Vin: 100~240VAC • 60/50Hz, 1.0A / Vout: +5.0~5.25VDC @ 3A max. -
Page 10: Preface
So, if you are looking for a device that is able to provide you with more mobility & space but at the same time uses less power consumption, then eBox-2300SX will be surely meet your need. -

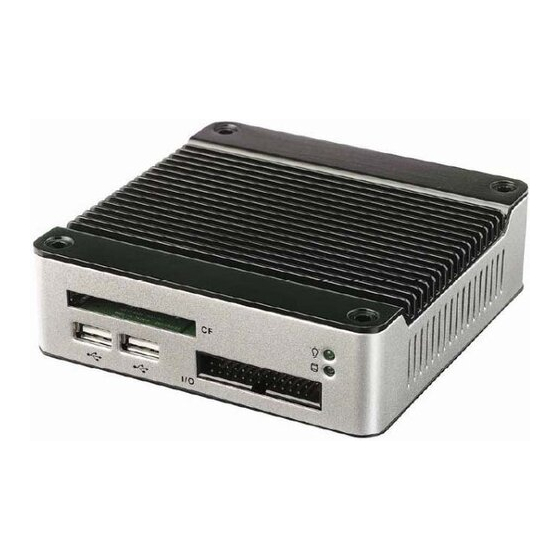

Page 11: Eb Ox -2300Sx Overview
For connection to devices with USB interface(HDD, CD/DVD-ROM, Memory Stick, etc.) Back Panel Power switch DC Power Jack (3-pin) PS/2 Keyboard or Mouse (6-pin) RJ-45 LAN Jack Serial Port (option for eBox- 2300SX-JSK) USB Port Wireless Antenna connector (optional) eBox-2300SX... -
Page 12: Embedded Cpu Board
3. 24-bit GPIO (available for eBox- 2300SX-JSK) 4. MiniPCI socket (available for eBox- 2300SX-JSK) 5. Type I/II CF Slot (Support Micro Driver) Dimension & Weight 115 x 115 x 35 mm / 505g Operating System Suitable for – Windows Embedded CE Linux eBox-2300SX... -
Page 13: Peripherals
ERIPHERALS ONNECTING THE OWER DAPTOR Power Adaptor To use eBox-2300SX immediately, take and use the supplied AC adapter as a power source. See the left diagram for visual connection. Connect the DC power jack of the power adaptor to the DC Input jack of eBox- 2300SX. -
Page 14: Connecting The Usb
ERIPHERALS ONNECTING THE eBox-2300SX provides USB port (Two in front & one at the back). USB Ports Front cabinet The second USB port is available for connection to USB devices. ONNECTING PEAKER ARPHONE AND Connecting to LAN There is an available RJ-45 LAN jack for connection to the hub of your intranet;... -
Page 15: Connecting The Keyboard And Mouse
The PS/2 Port is available for connect Keyboard or Mouse. ONNECTING ERIAL PORT Serial Ports The serial port is usually connected to a serial device like modem (option for eBox- 2300SX-JSK GPIO Ports 24-bit GPIO port (option for eBox-2300SX-JSK) eBox-2300SX... -
Page 16: Bios
BIOS eBox-2300SX ECONFIGURING Take note that AMI BIOS is used in the eBox-2300SX. To reconfigure the eBox- 2300SX, depress or hit the <Del> key to enter your BIOS setup main menu. Select from the menu, the desired setup for change. -
Page 17: Echnical Pecification
BIOS AMI BIOS System Memory Onboard 128MB DDR2 Expansion 1x Mini-PCI connector (option for eBox-2300SX-M) 1 x EIDE (44-pin) 2 x RS-232**, 1x PS/2 for K/B or Mouse 1 x RJ-45 Ethernet Connector 1 x Type I/II Compact Flash slot 3 x USB 2.0 Ports (two in front) -
Page 18: Taking Care Your Vesa Pc
-2300SX AKING ARE E This section gives you guidelines on using eBox-2300SX – Safe using, Storing and Handling. TORING Do not place eBox-2300SX in a location that is subject to: Heating sources, such as stove, oven, heater, radiator or air duct... -
Page 19: Using Cables For Connection
Do not use cut or damaged cables for connection. VESA PC LEANING Clean the eBox-2300SX with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzene, as these may damage the finish of eBox-2300SX. -
Page 20: Troubleshooting
ROUBLESHOOTING A. VESA PC does not start Make sure the eBox-2300SX is properly secured and plugged into a power source before it is turned on. Make sure the power indicator shows the power is on. See section 2 for more information about “eBox-2300SX Overview”. -
Page 21: Operating System Not Found
Press <DEL> to enter BIOS Setup main menu window. Follow the steps as written in item B. BIOS error message. For eBox-2300SX : If you have just connect eBox-2300SX to a CD/DVD or USB Drivers, remove these peripherals.. And restart eBox-2300SX to confirm that the Windows operating system starts properly. -
Page 22: Appendix : Onboard Connectors Summary
COM Port Box Header 5x2 2.0mm 10-pin DC 5V Input Mini-Din Connector 3-pin J14: Mini PCI Mini PCI socket 124-pin VGA Connector D-Sub Connector 8-pin RJ-45 8-pin -2300SX RONT ONNECTORS UTLINE FOR CF Slot GPIO port PWR, ACT LED eBox-2300SX... -
Page 23: Rear Connectorso
-2300SX ONNECTORS UTLINE FOR DC Power Jack PS/2 KB/MS RJ-45 LAN Power Switch Serial Ports (Optional) Wireless ANT (Optional) eBox-2300SX... -
Page 24: Pin Assignments
SB5V Signal Name Pin # J3: USB (90 )– 4-pin USB Type 1 Connector (Vertical Type) Pin # Signal Name USB0- USB0+ GGND GGND LAN: RJ-45 Connector Pin # Signal Name Pin # Signal Name FTXD+ FTXD- FRXIN+ FRXIN- eBox-2300SX... - Page 25 Red Flashes HDD R/W GP15 GP05 GP16 GP06 GP17 GP07 GP34 GP30 GP35 GP31 GP36 GP32 GP37 GP33 J9,J11: COM - 9-pin Dsub Connector Signal Signal Pin # Pin # Name Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 eBox-2300SX...
-
Page 26: Warranty
The Purchaser must pre-pay shipping for any defective system or parts returned under the warranty. DMP Electronics Inc. shall not be liable for risk of loss or damage during shipment of your returned system or parts if you fail to insure the shipment. - Page 27 eBox-2300SX...
