Summary of Contents for DMP Electronics eBox-2300

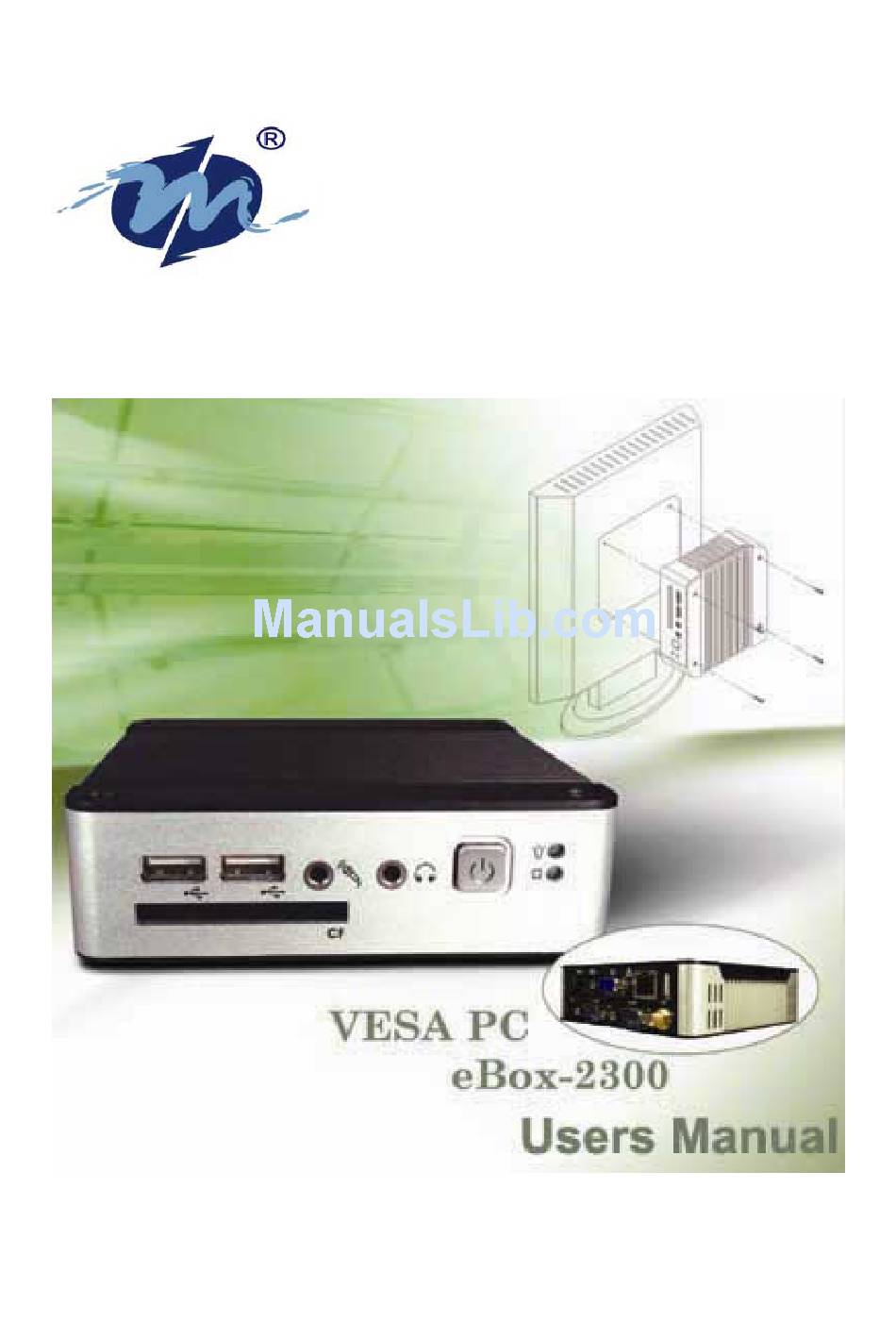

- Page 1 DMP Group...
- Page 2 Updates and additions to software may require an additional charge. Subscription to online service providers may require a fee and credit card information. Financial services may require prior arrangements with participating financial institution. eBox-2300...
- Page 3 WNER ECORD The serial number of this product is located at the rear panel of your eBox-2300 series. Refer to the model and serial number when you contact your nearest dealer or DMP offices for services. The Model No. of this product is also indicated on the product label of your gift box as: eBox-2300, eBox-2300-H, eBox-2300-M and eBox-2300-JSK.
- Page 4 AFETY NFORMATION WARNING Do not expose your VESA PC to rain or moisture, in order to prevent shock and fire hazard. Never install your VESA PC in wet locations. Do not open the cabinet to avoid electrical shock. Refer to your nearest dealer for qualified personnel servicing.
- Page 5 eBox-2300...
- Page 6 RODUCT ESCRIPTION With this product, herewith also known as eBox-2300, which is a simplified & an economical design of an embedded VESA PC for Special Purpose Personal Computing. The basic specification of this product comprises of the x86 technology design, and with onboard 128MB System memory, Display, USB, Keyboard, PS2 Mouse, LAN, and Audio Interfaces.
-
Page 7: Table Of Contents
PEAKER ARPHONE ........7 ONNECTING THE EYBOARD AND OUSE ............7 ONNECTING RINTER PORT 5 – BIOS ..................... 8 eBox-2300 ............8 ECONFIGURING 6 – T ............. 9 ECHNICAL PECIFICATION 7 – T VESA PC ............. 10 AKING ................... 10 TORING .......... - Page 8 CPU B ..........14 UMMARY ABLE FOR OARD eBOX-2300......14 RONT ONNECTORS UTLINE FOR eBOX-2300 ......15 ONNECTORS UTLINE FOR ..............16 SSIGNMENTS ........... 18 ARRANTY ERMS AND ONDITION ................18 ARRANTY ............. 18 ERVICE AND UPPORT (RMA) P ..... 18...
-
Page 9: Unpacking Your Embed Box
NPACKING MBED You have just acquired eBox-2300, the world’s smallest and Congratulation! compact PC (See Figure 1), please check the following items: -2300 ACKING IST FOR SERIES Item Description Q’ty eBox-2300 VEA PC Max. 15-watts External Power Adaptor, Vin: 100~240VAC • 60/50Hz, 1.0A / Vout: +5.0~5.25VDC @ 3A max. -
Page 10: Preface
No matter you are in a jammed office, a crowded place, or public transportation, it can be easily integrated with a VESA LCD to bring you VESA PC access at any time. -

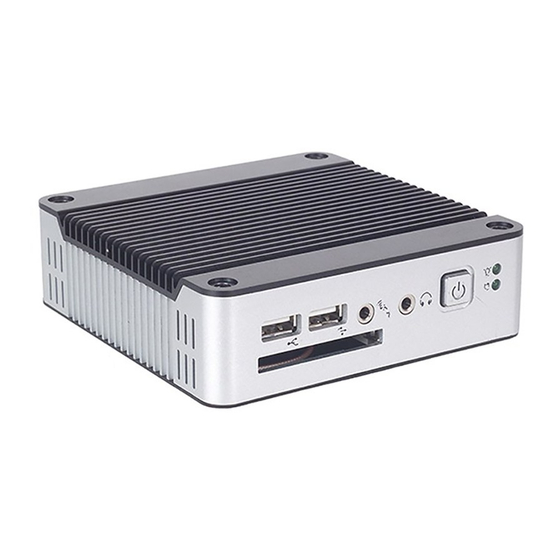

Page 11: Eb Ox -2300 Overview
For connection to devices with USB interface(HDD, CD/DVD-ROM, Memory Stick, etc.) Back Panel Power switch DC Power Jack (3-pin) PS/2 Keyboard or Mouse (6-pin) RJ-45 LAN Jack Serial Port (option for eBox-2300- JSK) USB Port Wireless Antenna connector (optional) eBox-2300... -
Page 12: Embedded Cpu Board
Peripheral AMI BIOS 1. USB V1.1 ports x 3 2. Serial port x2(This function only AGP Rev.2.0 Compliant available for eBox-2300-JSK) Resolution up to 1,280x1,024 High Colors 3. Audio(Mic-in, Line-in) 4. Type I/II CF Slot (Support Micro Driver) Audio Dimension & Weight AC97 CODEC, Fully Compliant with AC97v2.1... -
Page 13: Peripherals
ERIPHERALS ONNECTING THE OWER DAPTOR Power Adaptor To use your VESA PC immediately, take and use the supplied AC adapter as a power source. See the left diagram for visual connection. Connect the DC power jack of the power adaptor to the DC Input jack of eBox- 2300. -
Page 14: Connecting The Usb
ERIPHERALS ONNECTING THE eBox-2300 provides USB port (Two in front & one at the back). USB Ports Front cabinet The second USB port is available for connection to USB devices. Speaker/Earphone eBox-2300 supports Input/Output device for speaker and Microphone ONNECTING... -
Page 15: Connecting The Keyboard And Mouse
EYBOARD AND OUSE PS/2 Keyboard or Mouse (6-pin) The PS/2 Port is available for connect Keyboard or Mouse. ONNECTING ERIAL PORT Serial Ports The serial port is usually connected to a serial device like modem (option for eBox- 2300-JSK eBox-2300... -
Page 16: Bios
ECONFIGURING Take note that AMI BIOS is used in the eBox-2300 VESA PC. To reconfigure the VESA PC, depress or hit the <Del> key to enter your BIOS setup main menu. Select from the menu, the desired setup for change. -
Page 17: Echnical Pecification
BIOS AMI BIOS System Memory Onboard 128MB SD-RAM Expansion 1x Mini-PCI connector (option for eBox-2300-M) 1 x EIDE (44-pin) 2 x RS-232**, 1x PS/2 for K/B or Mouse 1 x RJ-45 Ethernet Connector 1 x Type I/II Compact Flash slot 3 x USB 1.1 Ports (two in front) -
Page 18: Taking Care Your Vesa Pc
VESA PC AKING This section gives you guidelines on using eBox-2300 VESA PC – Safe using, Storing and Handling. TORING Do not place your VESA PC in a location that is subject to: Heating sources, such as stove, oven, heater, radiator or air duct... -
Page 19: Using Cables For Connection
Do not use cut or damaged cables for connection. VESA PC LEANING Clean the VESA PC with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your VESA PC. -
Page 20: Troubleshooting
VESA PC for at least one hour. When you have checked all the above guidelines and the VESA PC does not work. Remove the power adaptor from the VESA PC, unplug the power cord, and plug it in again. Then turn on the power. -
Page 21: Operating System Not Found
Follow the steps as written in item B. BIOS error message. For eBox-2300 : If you have just connect your VESA PC to a CD/DVD or USB Drivers, remove these peripherals.. And restart your VESA PC to confirm that the Windows operating system starts properly. -
Page 22: Appendix : Onboard Connectors Summary
Close : Master 2-pin DC 5V Input Mini-Din Connector 3-pin J16,1J7: COM Port Box Header 5x2 2.0mm 10-pin J18: Mini PCI Mini PCI socket 124-pin -2300 RONT ONNECTORS UTLINE FOR CF Slot Mic-in Line-out Power BTN PWR, ACT LED eBox-2300... -
Page 23: Rear Connectorso
-2300 ONNECTORS UTLINE FOR DC Power Jack PS/2 KB/MS RJ-45 LAN Power Switch Serial Ports (Optional) Wireless ANT (Optional) eBox-2300... -
Page 24: Pin Assignments
SB5V Signal Name Pin # J3: USB (90 )– 4-pin USB Type 1 Connector (Vertical Type) Pin # Signal Name USB0- USB0+ GGND GGND J8: RJ-45 Connector Pin # Signal Name Pin # Signal Name FTXD+ FTXD- FRXIN+ FRXIN- eBox-2300... - Page 25 LEDS: POWER ON/OFF & HDD R/W Touch LED Color State Open Green Power On Touch HDD On VREFOUT Red Flashes HDD R/W J9: COM - 9-pin Dsub Connector Signal Signal Pin # Pin # Name Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 eBox-2300...
-
Page 26: Warranty
ERMS AND ONDITIONS 1. Warranty The warranty terms for eBox-2300 are twelve (12) months from the beginning on the date of invoice. During the warranty period, DMP Electronics Will repair replace the product covered under this limited warranty. 2. Service and Support DMP Electronics Inc. - Page 27 eBox-2300...
