- Page 1 EBOX-333x series User’s Guide...
- Page 2 Copyright 2013 DMP Electronics Inc. Special Notice to Users DMP Electronics Inc. provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to this manual, the software, or such other information.
- Page 3 Trademarks Acknowledgment The EBOX-333x series is the registered trademarks of DMP Electronics Inc. Microsoft, Windows, and AMI are registered trademarks of Microsoft Corporation and American Megatrends Inc. in the United States and/or other countries respectively. Other brand names, product names or trade names appearing in this document are the properties and registered trademarks of their respective owners.
-
Page 4: Safety Information
Safety Information WARNING Do not expose EBOX to rain or moisture, in order to prevent shock and fire hazard. Never install EBOX in wet locations. Do not open the cabinet to avoid electrical shock. Refer to your nearest dealer for qualified personnel servicing. - Page 5 Regulatory FCC Class A Note This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 6: Product Description
DMP and Users in pursuant of trading. Product Description: With this product, herewith also known as EBOX-333x series, which is a simplified & an economical design of an embedded device for Special Purpose Personal Computing. The basic specification of this product is comprised of the x86 technology design, and with onboard 1GB DDR2 System memory, VGA display, USB, PS/2 Keyboard/Mouse, and LAN Interfaces. -
Page 7: Table Of Contents
Contents Chapter 1 02 Unpacking your EBOX Mini PC Chapter 2 05 EBOX-333x series Overview 07 System Specifications 08 Peripherals Connecting Chapter 3 10 BIOS Reconfiguring Install the driver 14 Additional information Chapter 4 16 Technical Specifications Chapter 5 23 Onboard Connectors Summary... - Page 8 Chapter...
-
Page 9: Unpacking Your Ebox Mini Pc
Unpacking Your EBOX Mini PC Congratulation! You have just acquired EBOX-333x series, please check the following items: Packing List: Q’ty Item No. Description EBOX-333x series VESA PC Max. 22.5 watts External Power Adaptor, Vin: 100~240VAC 50/60Hz, Volt: +15VDC @ 1.5A Max. - Page 10 So, if you are looking for a device that is able to provide you with more mobility & space but at the same time uses less power consumption, then the EBOX-333x series will be surely meet your need. The VESA® FDMI™ Standard defines mounting interfaces, hole patterns and associated cable/power supply locations for LCD monitors, plasma displays and other flat panel devices.
- Page 11 Chapter...
-
Page 12: Ebox-333X Series Overview

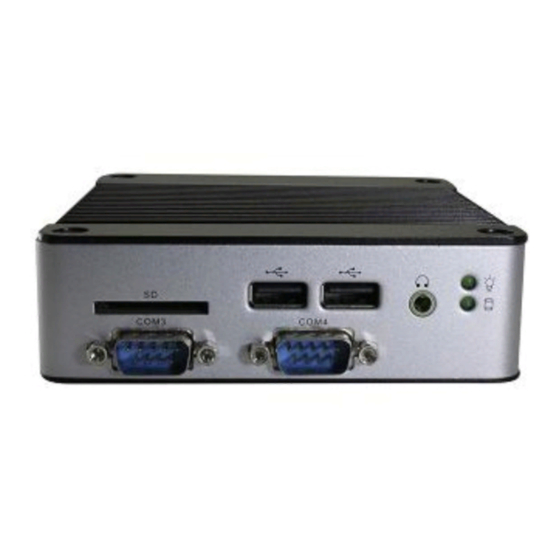

EBOX-333x series Overview Front Panel Power LED The power LED lights up when the system is turned on. HDD LED LED flashes when the system is accessed Hard Drive. Audio Line Out or Mic In For EBOX-333x VGA version, the original setting is Audio Line out x 1. -
Page 13: Back Panel
Back Panel DC Power Jack VGA port For EBOX-333x Series VGA version only. Power switch USB v2.0 ports RJ-45 LAN Jack LAN1 is 10/100 Mbps. LAN2 is 1 Gbps.(Optional) Wireless Antenna connector (optional) HDMI port For EBOX-333x Series HDMI version only. -
Page 14: System Specifications
Windows XP Embedded ( 32-bit DRAM bus, EBOX-3330 series) Windows Embedded CE 2GB DDR2 ( 32-bit DRAM bus, EBOX-3332 series) ※ For Windows 7 users, EBOX-333x series support 32bit version only, 64bit version does not support. BIOS AMI BIOS Resolution up to 1920 x 1440 High Colors... -
Page 15: Peripherals Connecting
See the left diagram for visual connection. Connect the DC power jack of the power adaptor to the DC Input of EBOX-333x series. Turning ON EBOX-333x series Switch on power as indicated on your left-side figure, the system will start . - Page 16 Chapter...
-
Page 17: Bios Reconfiguring
BIOS Reconfiguring AMI BIOS is used in the EBOX-333x series. To reconfigure the EBOX-333x series, press or hit the <Del> key to enter your BIOS setup main menu as below: Select from the menu, the desired setup for change. Press <Esc> to go back to main menu. -
Page 18: Install The Driver
INSTALL THE DRIVER: Under the Windows series OS, the following drivers need to be installed manually. 1. VGA driver 2. Ethernet driver 3. Wireless USB wifi Dongle driver ( Optional ) 4. Audio driver ( for windows XP only ) Note: Please find the mating drivers from DMP’s support page... - Page 19 ETHERNET DRIVER: Find the yellow question mark of Ethernet in the Device Manager under the control panel/ system. Select “Update Driver Software” and choose the right path, then click “ Install this driver software anyway ” when Windows Security popped out. After installation completed, the Device Manager will update and show the correct device.
- Page 20 WIRELESS USB WIFI DONGLE DRIVER: Unzip the downloaded file and double click the setting .exe file then “Next”as below to install. After the installation completed, the Device Manager will update and show the correct device.
-
Page 21: Additional Information
Additional information: For Windows 7 OS or Windows 7 Embedded OS, the sleep function is hidden if you selected from the start menu. To customize the settings, first go to Start > Control Panel > Power Options, or simply search for "Power Options"... - Page 22 Chapter...
-
Page 23: Technical Specifications
Technical Specification EBOX-3330 Series VGA, LAN x 1, RS-232 Model Type EB-3330-SS EB-3330-C1 EB-3330-C2 EB-3330-C3 EB-3330-C4 Processor Vortex86DX2 (933MHz) BIOS AMI BIOS Memory Onboard 1GB DDR2 Integrated Graphics Chip/ D-Sub 15-pin Ethernet 10/100 Mbps LAN x 1 (RJ-45 connector, Built-in PXE diskless boot) USB (2.0) External: 3 ports (Front x 2, Rear x 1) Internal: 1 port HD Audio... - Page 24 EBOX-3330 Series VGA, LAN x 2, RS-232 Model Type EB-3330-L2SS EB-3330-L2C1 EB-3330-L2C2 EB-3330-L2C3 EB-3330-L2C4 Processor Vortex86DX2 (933MHz) BIOS AMI BIOS Memory Onboard 1GB DDR2 Integrated Graphics Chip/ D-Sub 15-pin Ethernet 10/100 Mbps LAN x 1, 1G LAN x 1 (RJ-45 connector, Built-in PXE diskless boot) USB (2.0) External: 3 ports (Front x 2, Rear x 1) Internal: 1 port HD Audio...
- Page 25 EBOX-3330 Series HDMI, LAN x 1, RS-232 Model Type EB-3330-SSDMI EB-3330-C1DMI EB-3330-C2DMI EB-3330-C3DMI EB-3330-C4DMI Processor Vortex86DX2 (933MHz) BIOS AMI BIOS Memory Onboard 1GB DDR2 HDMI Ethernet 10/100 Mbps LAN x 1 (RJ-45 connector, Built-in PXE diskless boot) USB (2.0) External: 3 ports (Front x 2, Rear x 1) Internal: 1 port HD Audio Mic in PS/2 for Keyboard / Mouse x 1...
- Page 26 EBOX-3330 Series HDMI, LAN x 2, RS-232 Model Type EB-3330-L2SSDMI EB-3330-L2C1DMI EB-3330-L2C2DMI EB-3330-L2C3DMI EB-3330-L2C4DMI Processor Vortex86DX2 (933MHz) BIOS AMI BIOS Memory Onboard 1GB DDR2 HDMI Ethernet 10/100 Mbps LAN x 1, 1G LAN x 1 (RJ-45 connector, Built-in PXE diskless boot) USB (2.0) External: 3 ports (Front x 2, Rear x 1) Internal: 1 port HD Audio...
- Page 27 EBOX-333x series Models with LAN x 1 Listing: EB-3330-SS: Standard Version EB-3300-C1: Standard Version with RS-232 port x 1 EB-3330-C2: Standard Version with RS-232 ports x 2 EB-3330-C3: Standard Version with RS-232 ports x 3 EB-3330-C4: Standard Version with RS-232 ports x 4...
- Page 28 EBOX-333x series Models with LAN x 2 Listing: EB-3330-L2SS: Standard Version with LAN x 2 EB-3330-L2C1: Standard Version with LAN x 2, RS-232 port x 1 EB-3330-L2C2: Standard Version with LAN x 2, RS-232 ports x 2 EB-3330-L2C3: Standard Version with LAN x 2, RS-232 ports x 3...
- Page 29 Chapter...
-
Page 30: Onboard Connectors Summary
Onboard Connectors Summary Summary Table for CPU Board Description Type of Connections Pin nbrs. SODIMM-SOC-200P-1.8V SODIMM socket 200 Pin 200-pin SATA SATA socket 7-pin USB1 (Front) USB Connector 8-pin USB2 (Front) USB Connector 8-pin USB3 (Back) USB Connector 8-pin USB4 (Inside) USB Connector 8-pin Ethernet LAN... - Page 31 Rear Connectors Outline DC Power Jack RJ-45 LAN 1 Power Switch Serial Ports DC Power Jack PS/2 KB/Mouse HDMI G-LAN, RJ-45 LAN2 Power Switch Serial Ports...
-
Page 32: Pin Assignments
Pin Assignments J19: PS/2 Keyboard or Mouse – 6pin Mini-Din Connector Pin # Signal Name KBCLK PMCLK KBDAT PMDAT SB5V J16: Power SW – Push Button Switch Pin # Status J15: DC-IN (15V) – 2pin Jack Pin # Signal Name +15V Input J5, J6, J8: USB2.0 (180 ) : 4pin USB Type 1 Connector ( Horizontal Type ) - Page 33 J17: HDMI – 19pin HDMI Connector Pin # Signal Name Pin # Signal Name Pin # Signal Name TMDS Data2+ TMDS Data0 Shield TMDS Data2 Shield TMDS Data0– TMDS Data2– TMDS Clock+ DDC/CEC Ground TMDS Data1+ TMDS Clock Shield +5 V Power TMDS Data1 Shield TMDS Clock–...
- Page 34 Chapter...
-
Page 35: Taking Care Your Ebox Vesa Pc
Taking Care of your EBOX This section gives you some guidelines on using EBOX-333x series – Safe using, Storing and Handling. Storing Do not place EBOX-333x series in a location that is subject to: Heating sources, such as stove, oven, heater, radiator or air duct ... -
Page 36: Cleaning Your Ebox Vesa Pc
Using Cables for Connection To avoid the problem, use only the specified interface cables in your accessory bag. The supplier will not be responsible for the connection arising from the other unspecified peripheral equipment. Do not use cut or damaged cables for connection. Cleaning Your VESA PC Clean the VESA PC with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution. -
Page 37: Troubleshooting
A. VESA PC does not start Make sure the EBOX-333x series is properly secured and plugged into a power source before it is turned on. Make sure the power indicator shows the power is on. See section 2 for more information about “EBOX-333x series Overview”. - Page 38 Follow the steps as written in item B. BIOS error message. If you have just connected EBOX-333x series to a CD/DVD or USB Drivers, remove these peripherals. And restart to confirm that the Windows operating system starts properly. If EBOX- 333x series continues to display the message ”Operating system not found,”...
- Page 39 Chapter...
-
Page 40: Terms And Condition
The Purchaser must pre-pay shipping for any defective system or parts returned under the warranty. DMP Electronics Inc. shall not be liable for risk of loss or damage during shipment of your returned system or parts if you fail to insure the shipment.
