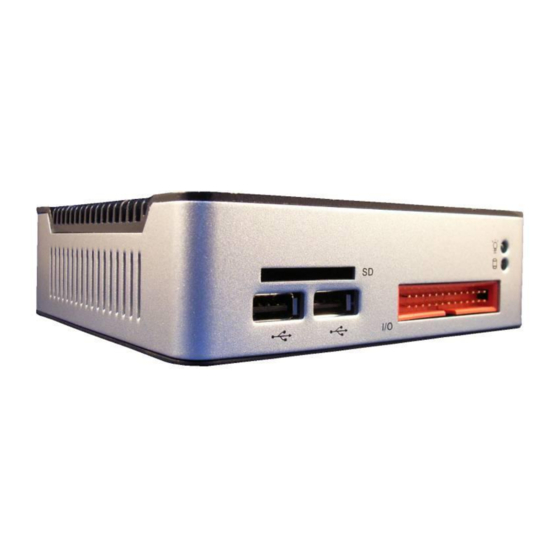

DMP Electronics 3300MX 3300MX-M 3300MX-H 3300MX-C 3300MX-C22 3300MX-C85 User Manual

Ebox-3300mx series; 3310mx series mini-pc
Hide thumbs Also See for 3300MX 3300MX-M 3300MX-H 3300MX-C 3300MX-C22 3300MX-C85:
Table of Contents

Advertisement

Quick Links

EBOX-3300MX / 3310MX series
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3300MX 3300MX-M 3300MX-H 3300MX-C 3300MX-C22 3300MX-C85 and is the answer not in the manual?

Questions and answers

Related Manuals for DMP Electronics 3300MX 3300MX-M 3300MX-H 3300MX-C 3300MX-C22 3300MX-C85

Summary of Contents for DMP Electronics 3300MX 3300MX-M 3300MX-H 3300MX-C 3300MX-C22 3300MX-C85

  • Page 1 EBOX-3300MX / 3310MX series User’s Guide...
  • Page 2 Copyright 2011 DMP Electronics Inc. Special Notice to Users DMP Electronics Inc. provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to this manual, the software, or such other information.
  • Page 3 Trademarks Acknowledgment The EBOX-3300MX / 3310MX series is the registered trademarks of DMP Electronics Inc. Microsoft, Windows, and AMI are registered trademarks of Microsoft Corporation and American Megatrends Inc. in the United States and/or other countries respectively. Other brand names, product names or trade names appearing in this document are the properties and registered trademarks of their respective owners.

  • Page 4: Safety Information

    Safety Information WARNING  Do not expose EBOX to rain or moisture, in order to prevent shock and fire hazard.  Never install EBOX in wet locations.  Do not open the cabinet to avoid electrical shock. Refer to your nearest dealer for qualified personnel servicing.
  • Page 5 Regulatory FCC Class A Note This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 6: Product Description

    Purchase Agreement Purpose: In accordance to the general commercial conduct of Trust and Fair Trade, herewith below is the agreement for the protection for both parties, DMP and Users in pursuant of trading. Product Description: With this product, herewith also known as EBOX-3300MX / 3310MX series, which is a simplified & an economical design of an embedded device for Special Purpose Personal Computing.

  • Page 7: Table Of Contents

    Contents Chapter 1 02 Unpacking your EBOX Mini PC Chapter 2 05 EBOX-3300MX / 3310MX series Overview 06 System Specifications 07 Peripherals Connecting Chapter 3 11 BIOS Reconfiguring Install the driver Chapter 4 21 Technical Specifications Chapter 5 26 Onboard Connectors Summary 28 Pin Assignments Chapter 6 31 Taking Care Your EBOX VESA PC...
  • Page 8 Chapter...

  • Page 9: Unpacking Your Ebox Mini Pc

    Unpacking Your EBOX Mini PC Congratulation! You have just acquired EBOX-3300MX / 3310MX series, please check the following items: Packing List: Q’ty Item No. Description EBOX-3300MX / 3310MX series VESA PC Max. 22.5 watts External Power Adaptor, Vin: 100~240VAC 50/60Hz, Volt: +15VDC @ 1.5A Max.
  • Page 10 Preface EBOX-3300MX / 3310MX series: VESA PC The EBOX-3300MX / 3310MX series is a revolutionary device which is especially designed for limited physical space and temperature concerns. No matter you are in a jammed office, a crowded place, or public transportation, it can be easily integrated with a VESA LCD to bring you EBOX-3300MX / 3310MX series access at any time.
  • Page 11 Chapter...

  • Page 12: Ebox-3300Mx / 3310Mx Series Overview

    EBOX-3300MX / 3310MX series Overview Front Panel Power LED The power LED lights up when system is turn on. HDD LED LED flashes when the system is accessing Hard Drive. Reset Button For system reset or turn on Audio Line Out Audio output to speaker Audio Mic In For Microphone Input...

  • Page 13: System Specifications

    System Specification Operating System Vortex86MX ( EBOX-3300MX series) Windows XP Home/ Pro. Vortex86MX+ (EBOX-3310MX series) Windows XP Embedded Windows Embedded CE Main Memory 512MB DDR2 Supported Linux Distribution list: ( 16-bit DRAM bus, EBOX-3300MX series) 1. Debian 4.0 1GB DDR2 2.

  • Page 14: Peripherals Connecting

    Peripherals Connecting the Power Adaptor DC Power Jack To use EBOX-3300MX / 3310MX series immediately, please attach the supplied adapter for the power source. See the left diagram for visual connection. Connect the DC power jack of the power adaptor to the DC Input of EBOX-3300MX / 3310MX series.
  • Page 15 Peripherals Connecting the USB provide 3 external USB ports with ( 2 at the front, 1 at the rear ) EBOX-3300MX / 3310MX series and one internal USB port. SD Slot For booting device by SD Card. Microphone/Earphone The EBox-33xxMX supports Microphone Input and Speaker Output Reset Button...

  • Page 16: Connecting The Keyboard And Mouse

    Connecting the Keyboard and Mouse PS/2 Keyboard or Mouse (6-pin) This PS/2 Port is shared for connecting Keyboard and/or Mouse by using Split Y-Cable (not included). Connecting Serial port Serial Ports (Optional) The serial port is usually connected to a serial device like modem or terminal devices.
  • Page 17 Chapter...

  • Page 18: Bios Reconfiguring

    BIOS Reconfiguring AMI BIOS is used in the EBOX-3300MX / 3310MX series. To reconfigure the EBOX-3300MX / 3310MX series, depress or hit the <Del> key to enter your BIOS setup main menu. Select from the menu, the desired setup for change. Press <Esc>...
  • Page 19 Debian / Ubuntu Linux Installation Guide In the MX platform, with the newer IDE and Ethernet controller, both of the two controllers just start supporting from kernel 2.6.28.3. Please refer to the guide to help you complete the installation. How to install Linux on Vortex86MX platform? Preparation: 1.
  • Page 20 Confirm the actual codename to mount. D. To unpack the kernel package and update. # dpkg -i xxx.deb # update-initramfs –k 2.6.30-vortex86mx -c # update-grub E. When these three procedures completed, type reboot to reboot system. # reboot Step3: Moving the storage installed Linux, back to VortexMX platform. Step4: Turn on the power to boot.
  • Page 21 For Ubuntu When it starts booting, press the Esc key when it boot. Confirm the Grub list first. There should have an option 2.6.30-vortex86mx, and then to boot. For Debian Please press the Esc key to confirm Grub list and press E key to confirm and modify the storage’s codename. Note: The Grub list parameters you can modify in the file /boot/grub/menu.lst.
  • Page 22 Chapter...

  • Page 23: Technical Specifications

    Technical Specification Model Type 3300MX 3300MX-M 3300MX-H 3300MX-C 3300MX-C22 3300MX-C85 3300MX-T 3300MX-TM 3300MX-TH 3300MX-TC Processor Vortex86MX / Vortes86MX+ (933Mhz) Memory Onboard 512MB DDR2/ Onboard 1GB DDR2 (Note 1) Integrated Graphics Chip/ D-Sub 15-pin Integrated Graphics Chip / RCA Jack Ethernet...
  • Page 24 Model Type 3300MX-AP 3300MX-MAP 3300MX-HAP 3300MX-CAP 3300MX-C22AP 3300MX-C85AP Processor Vortex86MX / Vortes86MX+ (933Mhz) Memory Onboard 512MB DDR2/ Onboard 1GB DDR2 (Note 1) Integrated Graphics Chip/ D-Sub 15-pin Ethernet 10/100 Mbps LAN (RJ-45 connector) Built-in PXE diskless boot function External: 3 ports (2 in the front) Internal: 1 port (reserved for USB Dongle) Audio Mic in and Line out GPIO...
  • Page 25 Model Type EBOX-3310MX-L3U4 EB-3310MX-L3U4AP Processor Vortex86MX+ (933MHz) Memory Onboard 1GB DDR2 Integrated Graphics Chip / D-Sub 15-pin 10/100 Mbps LAN x 3 (RJ-45) Ethernet LAN 2, LAN 3 Realtek RTL8100B LAN 1 from CPU support Built-in PXE diskless boot function External: 4 ports (2 at the front;...
  • Page 26 EBOX-3300MX / 3310MX series Models Listing: EBOX-3300MX / 3310MX: Standard Version with SATA and 3 x RS-232 ports EBOX-3300MX-AP /3310MX-AP: Standard Version with SATA and 3 x RS-232 ports and Auto Power On Support EBOX-3300MX-M / 3310MX-M: Standard Version EBOX-3300MX-MAP / 3310MX-MAP: Standard Version and Auto Power On Support EBOX-3300MX-H / 3310MX-H: Standard Version with SATA support EBOX-3300MX-HAP / 3310MX-HAP: Standard Version with SATA support and Auto Power On Support EBOX-3300MX-C / 3310MX-C: Standard Version with 3 x RS-232 ports...
  • Page 27 Chapter...

  • Page 28: Onboard Connectors Summary

    Onboard Connectors Summary Summary Table for CPU Board Description Type of Connections Pin nbrs. SODIMM-SOC-200P-1.8V SODIMM socket 200 Pin 200-pin SATA SATA socket 7-pin USB5 (Front) USB Connector 8-pin USB6 (Front) USB Connector 8-pin USB1 (Back) USB Connector 8-pin USB3 (Inside) USB Connector 8-pin Ethernet LAN...
  • Page 29  Rear Connectors Outline DC Power Jack PS/2 KB/Mouse RJ-45 LAN Power Switch Serial Ports RCA Jack for TV Out (Optional) *Only Available on TV Out support model.

  • Page 30: Pin Assignments

    Pin Assignments J12: PS/2 Keyboard or Mouse – 6-pin Mini-Din Connector Pin # Signal Name KBCLK PMCLK KBDAT PMDAT SB5V J17: Power SW – Push Button Switch Pin # Status J16: DC-IN (15V) – 2-pin Jack Pin # Signal Name +15V Input ) –...
  • Page 31 J10: VGA – 15-pin D-Sub Connector Pin # Signal Name Pin # Signal Name Pin # Signal Name HYSYNC VSYNC J5, J6, J8: USB (USB2): For connection to external USB device –4-pin USB Type 1 Connector (H) Signal Pin # Name USB2- USB2+...
  • Page 32 Chapter...

  • Page 33: Taking Care Your Ebox Vesa Pc

    Taking Care of your EBOX This section gives you some guidelines on using EBOX-3300MX / 3310MX series – Safe using, Storing and Handling. Storing Do not place EBOX-3300MX / 3310MX series in a location that is subject to:  Heating sources, such as stove, oven, heater, radiator or air duct ...

  • Page 34: Cleaning Your Ebox Vesa Pc

    Using Cables for Connection To avoid the problem, use only the specified interface cables in your accessory bag. The supplier will not be responsible for the connection arising from the other unspecified peripheral equipment. Do not use cut or damaged cables for connection. Cleaning Your VESA PC Clean the VESA PC with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution.

  • Page 35: Troubleshooting

    Troubleshooting This section describes the techniques of resolving some basic problems that you encounter when using EBOX-3300MX / 3310MX series. For more troubleshooting guidelines, please contact your nearest dealer for technical support. Troubleshooting Your VESA PC A. VESA PC does not start Make sure the EBOX-3300MX / 3310MX series is properly secured and plugged into a power source before it is turned on.
  • Page 36 (BIOS Setup menu “Exit”) C. “Operating System Not Found” – A message indicating that “Operating system not found” appear when my VESA PC starts (Windows won’t start) Enter your BIOS setup main menu by pressing <DEL> key, be sure that the C: drive is enable. If Windows still does not start, follow these steps to initialize the BIOS: Turn off the EBOX-3300MX / 3310MX series.
  • Page 37 Chapter...

  • Page 38: Terms And Condition

    The Purchaser must pre-pay shipping for any defective system or parts returned under the warranty. DMP Electronics Inc. shall not be liable for risk of loss or damage during shipment of your returned system or parts if you fail to insure the shipment.

This manual is also suitable for:

3300mx-tm3300mx-t3300mx-th3300mx-tc3300mx-g3300mx-gc22 ... Show all
