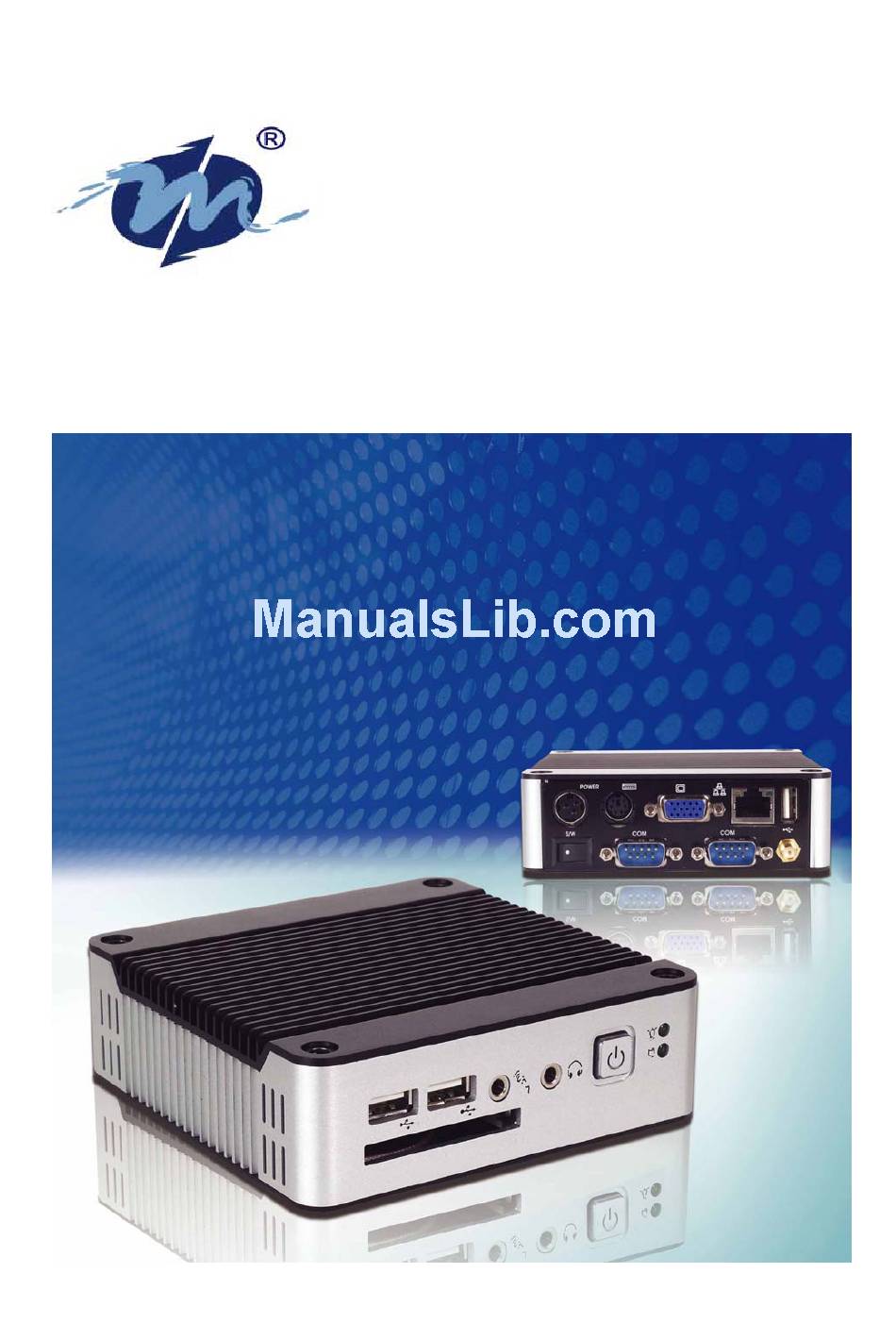

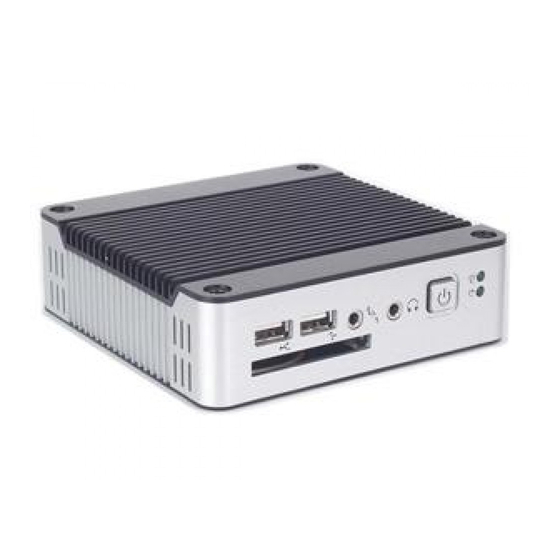

- Page 1 DM&P Group EBOX-4300 User’s Manual...
- Page 2 OTICE TO SERS DMP Electronics Inc. provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to this manual, the software, or such other information.
- Page 3 WNER ECORD The serial number of this product is located at the rear panel of your EBOX-4300 series. Refer to the model and serial number when you contact your nearest dealer or DMP offices for services. The Model No. of this product is also indicated on the product label of your gift box as: EBOX-4300, EBOX-4300-H, EBOX-4300-M and EBOX-4300-JSK.
- Page 4 VESA PC. When using EBOX-4300, avoid using or installing the modem to the serial port during a storm or a lightning. Do not use the modem or a telephone to report a gas leak in the vicinity of the leak.
- Page 5 EBOX-4300...
- Page 6 RODUCT ESCRIPTION With this product, herewith also known as EBOX-4300, which is a simplified & an economical design of an embedded VESA PC for Special Purpose Personal Computing. The basic specification of this product comprises of the x86 technology design, and with onboard 512MB System memory, Display, USB, Keyboard, PS2 Mouse, LAN, and Audio Interfaces.
-
Page 7: Table Of Contents
............1 NPACKING MBED ................1 ACKING ..............1 HECK EFORE 1 – P ..................2 REFACE 2 – EBOX-4300 O ..............3 VERVIEW 3 – E CPU B ..............4 MBEDDED OARD .............. 4 YSTEM PECIFICATION 4 – P ................. - Page 8 CPU B ..........14 UMMARY ABLE FOR OARD EBOX-4300......14 RONT ONNECTORS UTLINE FOR EBOX-4300 ......15 ONNECTORS UTLINE FOR ..............16 SSIGNMENTS ........... 18 ARRANTY ERMS AND ONDITION ................18 ARRANTY ............. 18 ERVICE AND UPPORT (RMA) P ..... 18...
-
Page 9: Unpacking Your Embed Box
NPACKING MBED You have just acquired EBOX-4300, the world’s smallest and Congratulation! compact PC (See Figure 1), please check the following items: EBOX-4300 ACKING IST FOR SERIES Item Description Q’ty EBOX-4300 VEA PC Max. 15-watts External Power Adaptor, Vin: 100~240VAC • 60/50Hz, 1.0A / Vout: +5.0~5.25VDC @ 3A max. -
Page 10: Preface
So, if you are looking for a device that is able to provide you with more mobility & space but at the same time uses less power consumption, then EBOX-4300 will be surely meet your need. -
Page 11: Ebox-4300 Overview
For connection to devices with USB interface (HDD, CD/DVD-ROM, Memory Stick, etc.) Back Panel Power switch DC Power Jack (3-pin) PS/2 Keyboard or Mouse (6-pin) RJ-45 LAN Jack Serial Port (option for EBOX-4300- JSK) ( USB Port ) ( Wireless Antenna (optional) EBOX-4300... -
Page 12: Embedded Cpu Board
1 BIOS Peripheral AMI BIOS 1. USB V2.0 Ports x 3 2. Serial port x2(This function is only Integrated VIA UniChrome Pro II, 2D/3D available for EBOX-4300-JSK. Graphics with MPEG4 WMV9 3. Audio(Mic-in, Line-in) decoding accelerator. 4. Type I/II CF Slot Resolution up to 1,920x1,440 Dimension &... -
Page 13: Peripherals
VGA Connection Depending on your choice of viewing, select a conventional CRT or the LCD VGA monitor. Make your connection by following the reference diagram from the VGA cable of your cable to the 15-pin D-Sub VGA port of EBOX-4300. EBOX-4300... -
Page 14: Connecting The Usb
ERIPHERALS ONNECTING THE EBOX-4300 provides USB port (Two in front & one at the back). USB Ports Front cabinet The second USB port is available for connection to USB devices. Speaker/Earphone EBOX-4300 supports Input/Output device for speaker and Microphone ONNECTING... -
Page 15: Connecting The Keyboard And Mouse
EYBOARD AND OUSE PS/2 Keyboard or Mouse (6-pin) The PS/2 Port is available for connect Keyboard or Mouse. ONNECTING ERIAL PORT Serial Ports The serial port is usually connected to a serial device like modem (option for EBOX- 4300-JSK EBOX-4300... -
Page 16: Bios
EBOX-4300 ECONFIGURING Take note that AMI BIOS is used in the EBOX-4300 VESA PC. To reconfigure the VESA PC, depress or hit the <Del> key to enter your BIOS setup main menu. Select from the menu, the desired setup for change. -
Page 17: Echnical Pecification
BIOS AMI BIOS System Memory Onboard 512MB DDR2 Expansion 1x Mini-PCI connector (option for eBox-4300-M and EBOX-4300-JSK) 1 x EIDE (44-pin) 2 x RS-232**, 1x PS/2 for K/B or Mouse 1 x RJ-45 Ethernet Connector 1 x Type I/II Compact Flash slot 3 x USB 2.0 Ports (two in front) -
Page 18: Taking Care Your Vesa Pc
VESA PC AKING This section gives you guidelines on using EBOX-4300 VESA PC – Safe using, Storing and Handling. TORING Do not place your VESA PC in a location that is subject to: Heating sources, such as stove, oven, heater, radiator or air duct... -
Page 19: Using Cables For Connection
When a solid object falls or a liquid spills onto the VESA PC, turn off the VESA PC immediately and unplug the LAN and power cables. Contact a qualified person or your dealer to check the VESA PC before you use it again. Always disconnect the power cord from the power source before cleaning the VESA EBOX-4300... -
Page 20: Troubleshooting
Make sure the VESA PC is properly secured and plugged into a power source before it is turned on. Make sure the power indicator shows the power is on. See section 2 for more information about “EBOX-4300 Overview”. When the VESA PC is plugged into a power strip or the UPS (Uninterruptible Power Supply), make sure the power strip or UPS is turned on and working normally. -
Page 21: Operating System Not Found
Follow the steps as written in item B. BIOS error message. For EBOX-4300 : If you have just connect your VESA PC to a CD/DVD or USB Drivers, remove these peripherals.. And restart your VESA PC to confirm that the Windows operating system starts properly. -
Page 22: Appendix : Onboard Connectors Summary
10-pin CF Device Switch DC 5V Input Mini-Din Connector 3-pin RST (Reset) Hear 2x1 2.0mm 2-pin RJ-45 8-pin J19: Mini PCI Mini PCI socket 124-pin EBOX-4300 RONT ONNECTORS UTLINE FOR CF Slot Mic-in Line-out Power BTN PWR, ACT LED EBOX-4300... -
Page 23: Rear Connectorso
-4300 ONNECTORS UTLINE FOR DC Power Jack PS/2 KB/MS RJ-45 LAN Power Switch Serial Ports (Optional) Wireless ANT (Optional) EBOX-4300... -
Page 24: Pin Assignments
SB5V Signal Name Pin # J3: USB (90 )– 4-pin USB Type 1 Connector (Vertical Type) Pin # Signal Name USB0- USB0+ GGND GGND J8: RJ-45 Connector Pin # Signal Name Pin # Signal Name FTXD+ FTXD- FRXIN+ FRXIN- EBOX-4300... - Page 25 LEDS: POWER ON/OFF & HDD R/W Touch LED Color State Open Green Power On Touch HDD On VREFOUT Red Flashes HDD R/W J9: COM - 9-pin Dsub Connector Signal Signal Pin # Pin # Name Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 EBOX-4300...
-
Page 26: Warranty
The Purchaser must pre-pay shipping for any defective system or parts returned under the warranty. DMP Electronics Inc. shall not be liable for risk of loss or damage during shipment of your returned system or parts if you fail to insure the shipment.
