EBOX-335xDX3 Series
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EBOX-335xDX3 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DMP Electronics EBOX-335xDX3 Series

Summary of Contents for DMP Electronics EBOX-335xDX3 Series

  • Page 1 EBOX-335xDX3 Series User’s Guide...

  • Page 2: Safety Information

    No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the DMP Electronics Inc. Copyright 2019 DMP Electronics Inc.
  • Page 3 EBOX-335xDX3 Series User Manual Regulatory FCC Class A Note This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 4: Product Description

    EBOX-335xDX3 Series User Manual Purchase Agreement Purpose: In accordance to the general commercial conduct of Trust and Fair Trade, herewith below is the agreement for the protection for both parties, DMP and Users in pursuant of trading. Product Description: With this product, herewith also known as EBOX-336x Series, which is a simplified and economical design of an embedded device for Special Purpose Personal Computing.

  • Page 5: Table Of Contents

    EBOX-335xDX3 Series User Manual Contents Chapter 1 07 Unpacking EBOX Mini PC Chapter 2 10 EBOX-335xDX3 Series Overview 11 EBOX-335xDX3-RCA Series Overview 12 System Specifications 14 Peripherals 15 SD card recommendation Chapter 3 17 BIOS Reconfiguring 18 Drivers Installation Guide...
  • Page 6 EBOX-335xDX3 Series User Manual Chapter DMP Electronics Inc.

  • Page 7: Unpacking Ebox Mini Pc

    Unpacking EBOX Mini PC Component List: Item No. Description Quantity EBOX-335xDX3 Series Mini PC 10W power supply (Optional) 75 x 75mm to 100 x 100mm VESA mounting rack (Optional) Note: The accessories are subject to change without immediate notice. Check before Use 1.
  • Page 8 The VESA® FDMI™ Standard defines mounting interfaces, hole patterns and associated cable/ power supply locations for LCD monitors, plasma displays and other flat panel devices. EBOX-335xDX3 Series is designed to fit this standard to make monitor attachment quickly and easily.
  • Page 9 EBOX-335xDX3 Series User Manual Chapter DMP Electronics Inc.

  • Page 10: Ebox-335Xdx3 Series Overview

    EBOX-335xDX3 Series User Manual EBOX-335xDX3 Series Overview Front Panel A: Reset Button For system reset or turn on. B: Power LED LED lights up when the system is turned on. C: Audio Line Out Audio output to speaker. D: Audio Mic In For Microphone input.

  • Page 11: Ebox-335Xdx3-Rca Series Overview

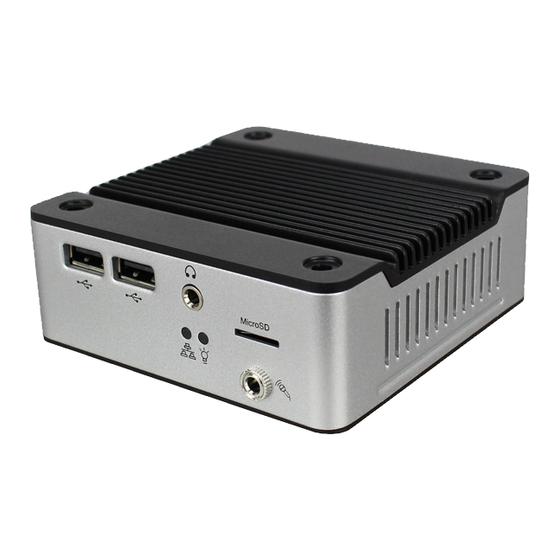

    EBOX-335xDX3 Series User Manual EBOX-335xDX3 RCA Series Overview Front Panel A: Micro SD Card Slot System support bootable from Micro SD Card. B: Audio Mic in For Microphone input. C: Audio Line Out Audio output to speaker. D: Power LED LED lights up when system is turned on.

  • Page 12: System Specifications

    EBOX-335xDX3 Series User Manual System Specifications Power consumption EBOX-335xDX3 Series: DC +5V@2A Vortex86DX3 Dual core (1GHz) EBOX-335xDX3-RCA Series: DC +5V@1.5A *Windows platform 64-bit not support Supported Operating system Main Memory Windows 7 Home/ Pro 1GB DDR3 (32-bit DRAM bus, EBOX-3350DX3 Series)

  • Page 13: Peripherals

    User Manual Peripherals Connecting Power Adaptor & Monitor A: Micro -B USB Power Jack EBOX-335xDX3 Series use Micro-B USB power cable +5V@2A AC adapter for the power source. Note: Model Types with Auto Power On supported, device will auto boot up after power adaptor is plug on.
  • Page 14 EBOX-335xDX3 Series User Manual Peripherals Connecting Input & Output ports EBOX-335xDX3 series provides 3 external USB ports (2 at front, 1 at rear). D: SD Card Slot For booting device by SD Card. E: Microphone/ Earphone 335xDX3 Series supports Microphone Input and Speaker Output F: USB 2.0 port...

  • Page 15: Sd Card Recommendation

    SD/ Micro SD card recommendation To use Class 10 SD card is highly recommended. EBOX-335xDX3 Series support SD and SDHC only (SDXC not support). Users may use SDXC on EBOX, however, it will be recognized as SDHC and capacity support up to 32GB only.
  • Page 16 EBOX-335xDX3 Series User Manual Chapter DMP Electronics Inc.

  • Page 17: Bios Reconfiguring

    EBOX-335xDX3 Series User Manual BIOS Reconfiguring 1. AMI BIOS is used in EBOX. To reconfigure the hardware, press or hit the <Del> key to enter the BIOS setup main menu as below: 2. Press <Esc> to go back to main menu.

  • Page 18: Drivers Installation Guide

    EBOX-335xDX3 Series User Manual Drivers Installation guide Under the Windows series OS, the following drivers need to be installed manually. M2015 R7 VGA driver Ethernet driver USB Wireless LAN Dongle driver (Optional) Audio driver (for windows XP only) Note: Please download drivers from EBOX download Page.
  • Page 19 EBOX-335xDX3 Series User Manual Ethernet driver: 1. Find the yellow question mark of Ethernet in the Device Manager under the control panel/ system. 2. Select “Update Driver Software” and choose the right path, then click “Install this driver software anyway”...

  • Page 20: Audio Driver

    EBOX-335xDX3 Series User Manual Audio driver: Unzip the downloaded file and double click the setting .exe file, then “Next” as below to install. After the installation completed, the Device Manager will update and show the correct device. DMP Electronics Inc.

  • Page 21: Additional Information

    EBOX-335xDX3 Series User Manual Additional information Screen rotation: After VGA driver installation completed, type “Customize icons” in search bar. Adjust Utility Application to “Show icon and notifications”. A blue icon = Graphic Utility appears on screen, double click it. 4. In Graphic Utility, go to Rotation section. Select the direction of rotation then press Apply to test and OK to save the changes.

  • Page 22: Turn Off The Display Function Setting

    Click on the drop-down menu list which is exactly next to "Turn off the display". From the options, you can set the amount of idle time. EBOX-335xDX3 Series does not support sleep function, it cannot wake up after sleep. To avoid the unwakeable situation, disable the function by setting “Put the computer to sleep” to “Never”.

  • Page 23: Hdmi 1080P Video Playback

    EBOX-335xDX3 Series User Manual HDMI 1080p video playback: For windows platform (Windows 7, WES7, XP, XPe): Click here to download 1080p video specific use media player DMP_mpc-hc_R7. In media player DMP_mpc-hc_R7 full screen mode, adjust screen with keyboard number pad “8” to increase or “2”...

  • Page 24: Pxe Diskless Boot Setting

    EBOX-335xDX3 Series User Manual PXE Diskless boot setting: 1. Boot up EBOX unit and press <Del> to get into BIOS menu. 2. Select “Boot” then move to “Boot Settings Configuration” and press ENTER. 3. Move to “Boot From LAN” and choose “Used INT 19h” then press “F10” to save setting and exit.

  • Page 25: Linux Installation

     Next the system will detect multiple network interfaces on the EBOX-335xDX3 Series, and users have to decide the primary network interface, both of them could be chosen.
  • Page 26 EBOX-335xDX3 Series User Manual  During the installation process, the system would ask users to create partitions for the operating system. Following example is using entire disk for the beginner. Choose “Guided - use entire disk”.  Select “Yes” to create the partition.
  • Page 27 EBOX-335xDX3 Series User Manual For Install the GRUB boot loader on a hard disk: Answer YES to complete the installation as last procedure.  When it's completed, the disc tray will eject and inform you, then press continue to restart and be ready to enjoy the new system! The Debian7.0...
  • Page 28 EBOX-335xDX3 Series User Manual 2. Install the VGA driver (Console mode)  Switch to console mode by pressing key <Ctrl> + <Alt> + <F1>, then copy the VGA driver rdc_drv.so to the driver folder /usr/lib/xor/modules/drivers/, please refer to EBOX download page for most updated drivers.
  • Page 29 EBOX-335xDX3 Series User Manual 3. The system configuration Enable the Auto login System / Administration / Login Screen Execute the utility “Login Screen” and enter the password to process it. Set the Log in as “user account” automatically. Disable the power saving mode when system idle, System / Preference / Screensaver Unmarked the option “Active the screensaver when computer is idle”.
  • Page 30 EBOX-335xDX3 Series User Manual Chapter DMP Electronics Inc.

  • Page 31: Onboard Connectors Summary

    EBOX-335xDX3 Series User Manual Onboard Connectors Summary Summary Table for CPU Board Nbr. Description Type of Connections Pin nbrs. D-Sub connector 15-pin mPCIe mPCIe socket 52-pin DC +5V Input Micro USB B Type 5-pin SATA SATA socket 7-pin Line out...

  • Page 32: Pin Assignments

    EBOX-335xDX3 Series User Manual Pin Assignments J3: VGA – 15-pin D-Sub connector Pin # Signal Name Pin # Signal Name Pin # Signal Name HYSYNC VSYNC J4: Micro-B USB DC Power Input Pin # Signal Name Data -- Data + J7, J8: USB 2.0 (180...
  • Page 33 EBOX-335xDX3 Series User Manual J13, J14: RS-232 9-pin D-Sub connector Pin # Signal Name Pin # Signal Name LEDS: POWER ON/ OFF LED Color State Blue Power On J8, J9: RCA Connectors/ Stereo sound output Center Shell Signal receiver J18: HDMI...
  • Page 34 EBOX-335xDX3 Series User Manual Chapter DMP Electronics Inc.

  • Page 35: Taking Care Of Ebox

    EBOX-335xDX3 Series User Manual Taking Care of EBOX This section provide guidelines on using EBOX-335xDX3 Series – Safe using, Storing and Handling. Storing Do not place EBOX in a location that is subject to:  Heating sources, such as stove, oven, heater, radiator or air duct ...
  • Page 36 EBOX-335xDX3 Series User Manual Cleaning EBOX Clean EBOX with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzene, as these may damage the finish of EBOX.

  • Page 37: Troubleshooting

    EBOX-335xDX3 Series User Manual Troubleshooting This section describes the techniques of resolving some basic problems that you encounter when using EBOX. For more troubleshooting guidelines, please contact your nearest dealer for technical support. Troubleshooting EBOX A. EBOX does not start –...
  • Page 38 EBOX-335xDX3 Series User Manual (BIOS Setup menu “Exit”) C. “Operating System Not Found” – A message indicating “Operating system not found” appear when unit starts (Windows won’t start) Enter BIOS setup main menu by pressing <DEL> key, be sure that the C: drive is enable.
  • Page 39 EBOX-335xDX3 Series User Manual Chapter DMP Electronics Inc.

  • Page 40: Warranty

    6. A copy of the invoice for the RMA product(s) will also be shipped to Purchaser. 7. The freight of return to DMP Electronics Inc. is charged to the Purchaser's account and accompanied by an RMA number. Any Returns with freight collect will be refused and returned to you. After Repairing, the cost of freight will be paid by Seller.
