- Page 1 EBOX-IMX8MM Series Mini PC User’s Guide...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the DMP Electronics Inc. Copyright 2021 DMP Electronics Inc.
- Page 3 EBOX-IMX8MM Series User Manual Regulatory FCC Class A Note This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 4 EBOX-IMX8MM Series User Manual Purchase Agreement Purpose: In accordance to the general commercial conduct of Trust and Fair Trade, herewith below is the agreement for the protection for both parties, DMP and Users in pursuant of trading. Product Description: A small form factor fanless embedded PC based on NXP i.MX8M Mini ARM Cortex-A53 processor.
-
Page 5: Table Of Contents
EBOX-IMX8MM Series User Manual Contents Chapter 1 07 Unpacking EBOX-IMX8MM Mini PC Chapter 2 10 Overview 11 Appearance Diagram 12 Specifications Chapter 3 14 APK Installation 14 Method A 16 Method B Chapter 4 19 Onboard Connectors Summary 19 Pin Assignments... - Page 6 EBOX-IMX8MM Series User Manual Chapter DMP Electronics Inc.
- Page 7 User Manual Unpacking EBOX Mini PC Component List: Item No. Description Quantity EBOX-IMX8MM Series Mini PC Power Adaptor 22.5W; Vin: 100~240V, AC 50~60Hz Power plug (US, UK, EU, AU types) VESA screw Wireless-Antenna (Model types with WiFi/BT) Note: The accessories are subject to change without immediate notice.

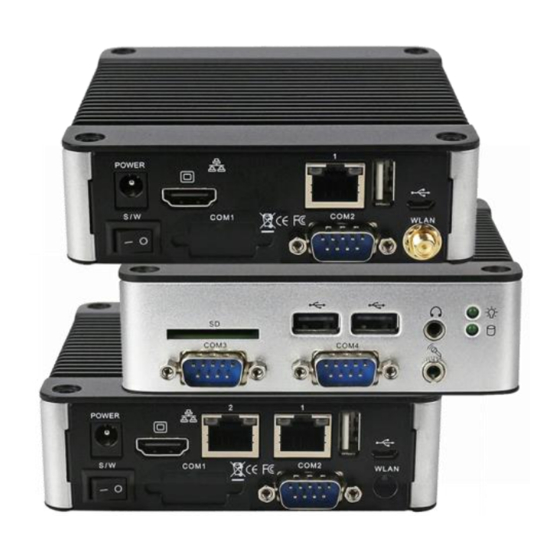

- Page 8 Preface EBOX-IMX8MM Series Mini PC EBOX-IMX8MM Series equipped with an NXP i.MX8M Mini Quad-core 1.6GHz ARM Cortex-A53 processor. Unit supports 1GB to 4GB LPDDR4 of onboard memory, eMMC from 8GB to 64GB onboard, dual COM plus one console ports and a Fanless design.
- Page 9 EBOX-IMX8MM Series User Manual Chapter DMP Electronics Inc.
- Page 10 EBOX-IMX8MM Series User Manual EBOX-IMX8MM Series Overview Front Panel A: Micro SD Card slot Micro SD Card use B: D-Sub 9-pin connectors Type C2: RS-232 connections (RTS, CTS, TX, RX signals) Type F4: RS-485 connections (TX, RX signals). C: USB 2.0 ports...
-
Page 11: Appearance Diagram
EBOX-IMX8MM Series User Manual Appearance Diagram DMP Electronics Inc. - Page 12 EBOX-IMX8MM Series User Manual Order information DMP Electronics Inc.
- Page 13 EBOX-IMX8MM Series User Manual Chapter DMP Electronics Inc.
-
Page 14: Apk Installation
EBOX-IMX8MM Series User Manual In EBOX-IMX8MM Series, there are two pre-installed OS Android 9 and Yocto available. If your EBOX-IMX8MM unit pre-installed with Android 9, please follow below steps to install .apk file. Android APK Installation Method A: Install .apk file from Notebook/PC Preparation: 1. - Page 15 EBOX-IMX8MM Series User Manual 3. Enter adb devices and then execute .apk file: adb install "C:\Users\Clint\Downloads\APKPure_v3.17.5_apkpure.com.apk" Then user can find the app after installed. DMP Electronics Inc.
- Page 16 EBOX-IMX8MM Series User Manual Method B: Install APK with installer app from EBOX-IMX8MM directly. Preparation: 1. Download installer app such as APKPure_v3.17.5_apkpure.com.apk from https://apkpure.com/apkpure/com.apkpure.aegon/download 2. Follow page 1 Method A and Install .apk file from Notebook/PC. Steps: 1. Boot up EBOX-IMX8MM and click installer app APKPure.
- Page 17 EBOX-IMX8MM Series User Manual 4. System will request permission for APKPure on your device? Click ALLOW. After installation completed, user can find the app on the menu. DMP Electronics Inc.
- Page 18 EBOX-IMX8MM Series User Manual Chapter DMP Electronics Inc.
-
Page 19: Onboard Connectors Summary
Console ( 9-pin D-Sub connector 9-pin J14, J15 RS-232/RS-485 x2 9-pin D-Sub connector 9-pin *EBOX-IMX8MM Series COM2 is default as console port. Pin Assignments J2: DC-IN (+12V~+36V) - 2-pin Jack Pin # Signal Name +12~+36V Input J3: HDMI Pin #... - Page 20 EBOX-IMX8MM Series User Manual J4, J5: LAN: RJ-45 connector Pin # Signal Name Pin # Signal Name State TP0+ TP2- 10/100 Mbps speed TP0- TP1- 1 Gbps speed TP1+ TP3+ Ethernet Active TP2+ TP3- J8, J9: USB 2.0 (180 J10: USB 2.0 (90...
- Page 21 EBOX-IMX8MM Series User Manual Chapter DMP Electronics Inc.
-
Page 22: Taking Care Of Ebox
EBOX-IMX8MM Series User Manual Taking Care of EBOX This section provide guidelines on using EBOX-IMX8MM Series – Safe using, Storing and Handling. Storing Do not place EBOX in a location that is subject to: Heating sources, such as stove, oven, heater, radiator or air duct ... -
Page 23: Troubleshooting
EBOX-IMX8MM Series User Manual Troubleshooting This section describes techniques of resolving some basic problems that you encounter when using EBOX. For more troubleshooting guidelines, please contact your nearest dealer for technical support. Troubleshooting EBOX A. EBOX does not start –... - Page 24 EBOX-IMX8MM Series User Manual Chapter DMP Electronics Inc.
-
Page 25: Warranty
The purchaser must pre-pay shipping for any defective system or parts returned under the warranty. DMP Electronics Inc. shall not be liable for risk of loss or damage during shipment of the returned system or parts. All products must be shipped back to DMP Electronics Inc. in original or equivalent packaging.
