Summary of Contents for DMP Electronics EBOX-3100
- Page 1 EBOX-3100 User’s Guide DISTRIBUTED BY TEXIM EUROPE...
- Page 2 Copyright 2014 DMP Electronics Inc. Special Notice to Users DMP Electronics Inc. provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to this manual, the software, or such other information.
- Page 3 Trademarks Acknowledgment The EBOX-3100 is the registered trademarks of DMP Electronics Inc. Other brand names, product names or trade names appearing in this document are the properties and registered trademarks of their respective owners. All names mentioned herewith are served for identification purpose only.
-
Page 4: Safety Information
Safety Information WARNING Do not expose EBOX to rain or moisture, in order to prevent shock and fire hazard. Never install EBOX in wet locations. Do not open the cabinet to avoid electrical shock. Refer to your nearest dealer for qualified personnel servicing. - Page 5 Regulatory FCC Class A Note This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 6: Product Description
DMP and Users in pursuant of trading. Product Description: With this product, herewith also known as EBOX-3100, which is a simplified & an economical design of an embedded device for Special Purpose Computing. The basic specification of this product is comprised of the x86 technology design, and with onboard 512MB DDR3 System memory, USB, and LAN Interfaces. -
Page 7: Table Of Contents
Contents Chapter 1 02 Unpacking your EBOX Mini PC Chapter 2 05 EBOX-3100 Overview 06 System Specifications 07 Peripherals Connecting Chapter 3 09 BIOS Reconfiguring Chapter 4 11 Technical Specifications Chapter 5 13 Onboard Connectors Summary 14 Pin Assignments Chapter 6... - Page 8 Chapter DISTRIBUTED BY TEXIM EUROPE...
-
Page 9: Unpacking Your Ebox Mini Pc
EBOX-3100 VESA PC Preface EBOX-3100 The EBOX-3100 is a revolutionary device which is especially designed for limited physical space and temperature concerns. Furthermore, with FANLESS design, the EBOX-3100 is ideal to be used in the environment where temperature demand is critical. - Page 10 Chapter DISTRIBUTED BY TEXIM EUROPE...
-
Page 11: Ebox-3100 Overview

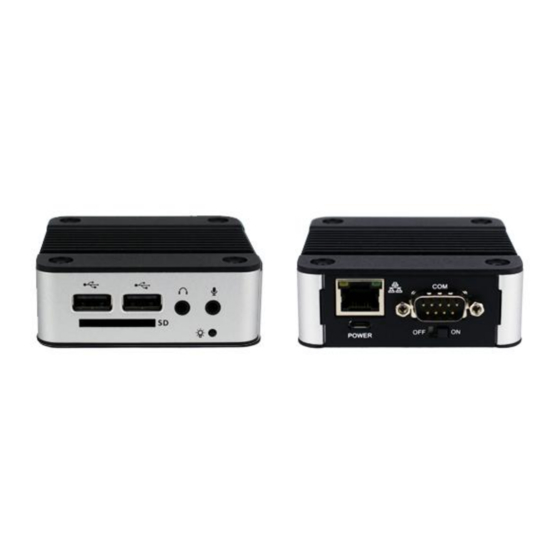

EBOX-3100 Overview Front Panel Power LED The power LED lights up when the system is turned on. Audio Line Out & Mic In High Defination Audio port. USB v2.0 ports For connection to devices with USB interface (HDD, CD/DVD-ROM, Memory Stick, etc.) SD Slot This system is bootable from SD card. -
Page 12: System Specifications
System Specification Vortex86EX (400 MHz) Main Memory 512MB DDR3 (32-bit DRAM bus) BIOS Coreboot SEABIOS Peripheral 1. USB V2.0 x 2 2. SD slot x 1 3. Serial port x 1 (RS-232 COM port in full 9pin) 4. Audio port (Mic in x1 & Line out x 1) Dimension &... -
Page 13: Peripherals Connecting
See the left diagram for visual connection. Connect the Micro-USB B type USB power connection to the DC Input of EBOX-3100. Turning ON EBOX-3100 Switch on power as indicated on your left-side figure, the system will start . - Page 14 Chapter DISTRIBUTED BY TEXIM EUROPE...
-
Page 15: Bios Reconfiguring
Select connection type as serial and set the speed of the COM port that you connected with. (EBOX standard COM port speed is 1152000). SEA BIOS is used in the EBOX-3100. To reconfigure the EBOX-3100, press or hit the <F12> key to enter your BIOS setup main menu as below:... - Page 16 Chapter DISTRIBUTED BY TEXIM EUROPE...
-
Page 17: Technical Specifications
DC +5V @ 0.45A Dimensions 78 x 78 x 28 mm Unit Net Weight 208g 5 ~ 50 ℃ Operation Temp. Certifications CE, FCC, VCCI Note RS-232 COM port in Full 9pin Ordering Information: EBOX-3100: Standard Version DISTRIBUTED BY TEXIM EUROPE... - Page 18 Chapter DISTRIBUTED BY TEXIM EUROPE...
-
Page 19: Onboard Connectors Summary
Onboard Connectors Summary Summary Table for CPU Board Description Type of Connections Pin nbrs. SODIMM--200P-EX SODIMM socket 200 Pin 200-pin Power Switch Power Switch 4-pin DC 5V Input Micro USB B Type 1-pin USB2 (Front) USB Connector 8-pin SD card slot Standard: 32.0×24.0×2.1 mm 9-pin USB1 (Front) -
Page 20: Pin Assignments
Pin Assignments J16: Power SW – Push Button Switch Switch Status Right Left J15: DC-IN (15V) – 2pin Jack Pin # Signal Name +5 V Input Data − Data + J5, J6, J8: USB2.0 (180 ) : 4pin USB Type 1 Connector (Horizontal Type) Pin # Signal Name Data −... - Page 21 Chapter DISTRIBUTED BY TEXIM EUROPE...
-
Page 22: Taking Care Your Ebox
TV reception causing interference or poor signal display. When this happens, relocate the EBOX-3100 by a suitable distance away from the set.. Do not drop the EBOX-3100 from the working table nor place heavy objects on top of it.. DISTRIBUTED BY TEXIM EUROPE... - Page 23 Using Cables for Connection To avoid the problem, use only the specified interface cables in your accessory bag. The supplier will not be responsible for the connection arising from the other unspecified peripheral equipment. Do not use cut or damaged cables for connection. Cleaning Your VESA PC Clean the VESA PC with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution.
-
Page 24: Troubleshooting
EBOX-3100 for at least one hour. When you have checked all the above guidelines and the EBOX-3100 does not work. Remove the power connection from the EBOX-3100, unplug and plug it in again. Then turn on the power. B. “Operating System Not Found” –... - Page 25 Chapter DISTRIBUTED BY TEXIM EUROPE...
-
Page 26: Terms And Condition
The Purchaser must pre-pay shipping for any defective system or parts returned under the warranty. DMP Electronics Inc. shall not be liable for risk of loss or damage during shipment of your returned system or parts if you fail to insure the shipment. - Page 27 Partner in Electronic Components & Supply Chain Solutions The Netherlands Denmark Elektrostraat 17 Nørregade 15 NL-7483 PG Haaksbergen DK-9240 Nibe Tel: +31 (0)53 573 33 33 Tel: +45 88 20 26 30 Fax: +31 (0)53 573 33 30 Fax: +45 88 20 26 39 nl@texim-europe.com nordic@texim-europe.com Belgium...
