- Page 1 EBOX-33xxMX Series User Manual EBOX-3300MX / 3310MX Series User’s Guide DMP Electronics Inc.
- Page 2 Copyright 2019 DMP Electronics Inc. Special Notice to Users DMP Electronics Inc. provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to this manual, the software, or such other information.
- Page 3 EBOX-33xxMX Series User Manual Trademarks Acknowledgment is the registered trademarks of DMP Electronics Inc. Other brand names, product names or trade names appearing in this document are the properties and registered trademarks of their respective owners. All names mentioned herewith are served for identification purpose only.
- Page 4 Do not use the modem or a telephone to report a gas leak in the vicinity of the leak. USB connectors are supplied with Limited Power Sources. O NOT ATTEMPT TO OPEN OR TO DISASSEMBLE THE CHASSIS NCASING OF THIS PRODUCT LEASE CONTACT YOUR NEAREST DEALER FOR SERVICING FROM QUALIFIED TECHNICIAN DMP Electronics Inc.
- Page 5 DMP Electronics Inc.
- Page 6 Note: If there is other particular issue not listed in the above conditions, both parties agreed to follow the General Law of Commerce with fair and reasonable discussion in handling and resolving the argument. DMP Electronics Inc.
-
Page 7: Table Of Contents
Chapter 6 31 Taking Care Your EBOX VESA PC 32 Cleaning Your EBOX VESA PC 33 Troubleshooting Chapter 7 36 Terms and Condition 36 Warranty 36 Service and Support 36 Return Merchandise Authorization (RMA) Policy 36 Shipping Policy DMP Electronics Inc. - Page 8 EBOX-33xxMX Series User Manual Chapter DMP Electronics Inc...
-
Page 9: Unpacking Your Ebox Mini Pc
Note: The accessories are subject to change without immediate notice. Check Before Use 1..EBOX-3300MX/ 3310MX series Unit 2. AC Power Adaptor Total 4 types: US, UK, EU and AU power plug to choose before purchase, buyers can choose one of it. DMP Electronics Inc... - Page 10 The VESA® FDMI™ Standard defines mounting interfaces, hole patterns and associated cable/power supply locations for LCD monitors, plasma displays and other flat panel devices. EBOX- 3300MX / 3310MX series is designed to fit this standard to make monitor attachment quickly and easy. DMP Electronics Inc...
- Page 11 EBOX-33xxMX Series User Manual Chapter DMP Electronics Inc...
-

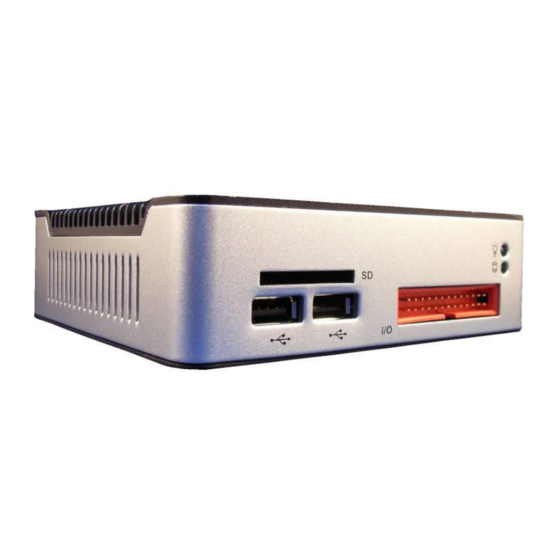

Page 12: Ebox-3300Mx / 3310Mx Series Overview
SD Card. USB 2.0 port Connection for external USB devices. Back Panel DC Power Jack PS/2 Keyboard or Mouse (6-pin) Power switch USB 2.0 Port RJ-45 LAN Jack Wireless Antenna connector (optional) RS-232 port DMP Electronics Inc... -
Page 13: System Specifications
512MB DDR2 Supported Linux Distribution list: ( 16-bit DRAM bus, EBOX-3300MX series) 1. Debian 4.0 1GB DDR2 2. Debian 5.0 ( 32-bit DRAM bus, EBOX-3310MX series) 3. Ubuntu 8.04 BIOS 4. Ubuntu 8.10 AMI BIOS 5. Ubuntu 9.04 6. Ubuntu 10.04 7. - Page 14 VGA cable to the 15-pin D-Sub VGA port. TV Out Connection (Optional) You can connect to the Traditional TV display via RCA Jack by using the Audio/Video Cable (Not included). Note : This feature is only available on TV-out supported model. DMP Electronics Inc...
- Page 15 The USB ports are available for connection to USB devices such as CD-ROM / Pen Drive. Connecting the LAN RJ-45 LAN There is an available RJ-45 LAN jack for Ethernet connection. (see left diagram for RJ-45 Jack). DMP Electronics Inc...
- Page 16 This PS/2 Port is shared for connecting Keyboard and/or Mouse by using Split Y-Cable (not included). Connecting Serial port Serial Port (Optional) The serial port is usually connected to a serial device like modem or terminal devices. DMP Electronics Inc...
- Page 17 EBOX-33xxMX Series User Manual Chapter DMP Electronics Inc...
-
Page 18: Bios Reconfiguring
Press <F9> to load factory default setting Move to “Exit” TAB and select “Save Settings and Exit”, press “Y” to save the changes that you just made. EBOX-3300MX / 3310MX series will restart accordingly to your new setup. (AMI BIOS Setup menu) DMP Electronics Inc... - Page 19 The system would ask you to enter your user name and password. C. Plug on the USB pen driver and try to mount it as mnt. #sudo su #mount /dev/sda1 /mnt #cd /mnt Confirm the actual codename to mount. DMP Electronics Inc...
- Page 20 # update-initramfs –k 2.6.30-vortex86mx -c # update-grub E. When these three procedures completed, type reboot to reboot system. # reboot Step3: Moving the storage installed Linux, back to VortexMX platform. Step4: Turn on the power to boot. DMP Electronics Inc...
- Page 21 Please press the Esc key to confirm Grub list and press E key to confirm and modify the storage’s codename. Note: The Grub list parameters you can modify in the file /boot/grub/menu.lst. Primary / Master = hda1 Primary / Slaver = hdb1 Secondary / Master = hdc1 Secondary / Slaver = hdd1 DMP Electronics Inc...
- Page 22 EBOX-33xxMX Series User Manual Chapter DMP Electronics Inc...
-
Page 23: Technical Specifications
Audio GPIO 24-bit GPIO SD Slot SATA (Note 2) PS/2 for keyboard/ Mouse x 1 RS-232(Note 3) Serial RS-422 RS-485 Power DC +8V ~ +15V Dimensions 115 x 115 x 35mm Weight 500g 5~50 ℃ Operation Temp. DMP Electronics Inc... - Page 24 External : 3 ports (2 at the front) Internal : 1 port (reserved for USB Dongle) Audio Mic in and Line out GPIO SD Slot SATA (Note 2.) RS-232(Note 3.) Serial RS-422 RS-485 Power DC +8V ~ +15V Dimensions 115 x 115 x 35mm Weight 500g 5 ~ 50 ℃ Operation Temp. DMP Electronics Inc...
- Page 25 If user needs to use more than one complete full 9 pin RS-232 COM port, please choose the model type EBOX-3310MX-TS4C series. DMP Electronics Inc...
- Page 26 EBOX-3310MX-L3U4: VGA out, SATA, LAN x 3, USB 2.0 x 4, (No internal USB reserved), RS-232 full 9pin port x 1. EB-3310MX-L3U4AP: VGA out, SATA, LAN x 3, USB 2.0 x 4, (No internal USB reserved), RS-232 full 9pin port x 1, and Auto Power On. DMP Electronics Inc...
- Page 27 EBOX-33xxMX Series User Manual Chapter DMP Electronics Inc...
-
Page 28: Onboard Connectors Summary
SD Card Slot USB 2.0 Min In, Line Out Reset Button Power & HDD LED Models with Auto Power On feature 24 bit GPIO port x 1 do NOT have front Reset Button *Only available on GPIO Supported models DMP Electronics Inc... - Page 29 EBOX-33xxMX Series User Manual Rear Connectors Outline DC Power Jack PS/2 KB/Mouse RJ-45 LAN USB 2.0 Power Switch Serial port RCA Jack for TV Out (Optional) *Only Available on TV Out support model. DMP Electronics Inc...
-
Page 30: Pin Assignments
) – 4-pin USB Type 1 connector (Vertical Type) J7: USB (90 Pin # Signal Name USB0- USB0+ GGND GGND LEDS: POWER ON / OFF & HDD R/W LED Color State Green Power On Green HDD On Green Flashes HDD R/W DMP Electronics Inc... - Page 31 TXD/ 422RX+ DTR/ 422RX- J15: COM - 9-pin D-Sub connector Pin # Signal Name Pin # Signal Name RXD3 TXD3 TXD4 RXD4 J9: LAN: RJ-45 connector Pin # Signal Name Pin # Signal Name FTXD+ FTXD- FRXIN+ FRXIN- DMP Electronics Inc...
- Page 32 EBOX-33xxMX Series User Manual Chapter DMP Electronics Inc...
-
Page 33: Taking Care Your Ebox Vesa Pc
When this happens, relocate the EBOX-3300MX / 3310MX series by a suitable distance away from the set. Do not drop the EBOX-3300MX / 3310MX series from the working table nor place heavy objects on top of it. DMP Electronics Inc... -
Page 34: Cleaning Your Ebox Vesa Pc
When a solid object falls or a liquid spills onto the EBOX, turn off the EBOX immediately and unplug the LAN and power cables. Contact a qualified person or your dealer to check the EBOX before you use it again. Always disconnect the power cord from the power source before cleaning the EBOX. DMP Electronics Inc... -
Page 35: Troubleshooting
Go to “Exit” menu using the Direction keys <↑↓> and choose the option “Load Optimal Defaults”, then press <Enter>. A message dialog appears as seen below, hit “Y” key and presses <Enter> to save and recover to the factory setting. “Load Optimal Defaults (Y/N)? Y” DMP Electronics Inc... - Page 36 And restart to confirm that the Windows operating system starts properly. If EBOX-3300MX / 3310MX series continues to display the message ”Operating system not found,” and Windows does not start, please contact your nearest dealer for servicing. DMP Electronics Inc...
- Page 37 EBOX-33xxMX Series User Manual Chapter DMP Electronics Inc...
-
Page 38: Terms And Condition
The Purchaser must pre-pay shipping for any defective system or parts returned under the warranty. DMP Electronics Inc. shall not be liable for risk of loss or damage during shipment of your returned system or parts if you fail to insure the shipment.
