  • Page 1 EBOX-ALN3350 User’s Guide...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the DMP Electronics Inc. Copyright 2019 DMP Electronics Inc.
  • Page 3 DMP Electronics Inc.
  • Page 4 DMP and Users in pursuant of trading. Product Description: With this product, herewith known as EBOX-ALN3350 which is a simplified & an economical design of an embedded device for Special Purpose Personal Computing. The basic specification of this product is comprised of Intel®...

  • Page 5: Table Of Contents

    EBOX-ALN3350 User Manual Contents Chapter 1 07 Unpacking EBOX Mini PC Chapter 2 10 EBOX-ALN3350 Overview 11 EBOX-ALN3350 Internal description 12 Appearance Diagram 13 System Specifications 14 Peripherals Chapter 3 17 BIOS Reconfiguring 17 Load Default Setting 18 COM Setting (RS-232/485/422)
  • Page 6 EBOX-ALN3350 User Manual Chapter DMP Electronics Inc.

  • Page 7: Unpacking Ebox Mini Pc

    Unpacking EBOX Mini PC Component List: Item No. Description Quantity EBOX-ALN3350 Mini PC 40W Power Adaptor, Vin: 100~240V AC 50~60Hz Power cable (available US, UK, EU, AU types ) VESA screw Note: The accessories are subject to change without immediate notice.
  • Page 8 EBOX-ALN3350 can be easily integrated with VESA monitor to access at any time. EBOX-ALN3350 can be attached to any VESA mounting fixture; allowing it to be securely mounted onto desks, walls, or buildings, and thereby optimizes your work area. It can also attach directly to any size LCD for a mobile system for the use at trade shows, presentations, promotions, etc.
  • Page 9 EBOX-ALN3350 User Manual Chapter DMP Electronics Inc.

  • Page 10: Ebox-Aln3350 Overview

    EBOX-ALN3350 User Manual EBOX-ALN3350 Overview Front Panel A: VGA port Support VGA display B: USB 3.0 port Connection for external USB devices C: COM port (RS-232/485/422) Connection for serial port D: Power LED LED lights up when the system is turned on...

  • Page 11: Ebox-Aln3350 Internal Description

    EBOX-ALN3350 User Manual EBOX-ALN3350 Internal description Optional item MINIPCIE-WLAN-159H Wi-Fi/BT module info www.compactpc.com.tw DMP Electronics Inc.

  • Page 12: Appearance Diagram

    EBOX-ALN3350 User Manual Appearance Diagram DMP Electronics Inc.
  • Page 13 Phone Jack for Line‐out / MIC‐in x1 (RS-232/485/422) Power Requirement 12VDC standard input from power jack Operating Temperature 0℃ to 60℃ (with Airflow)/ -10℃ Bootable Dimension 115 x 115 x 48.5 mm 660g O/S Support Windows 10, Linux DMP Electronics Inc.

  • Page 14: Peripherals

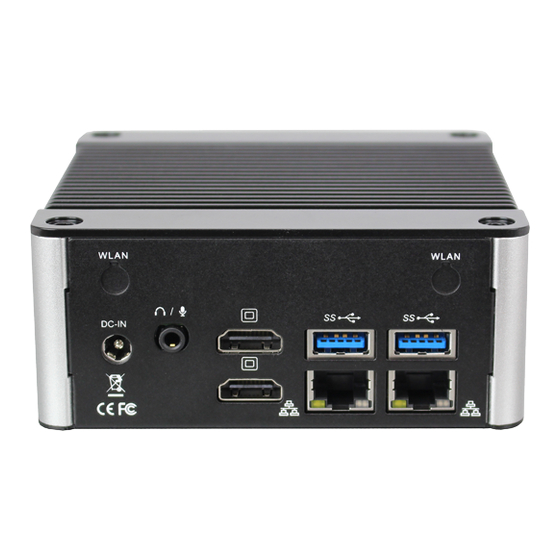

    EBOX-ALN3350 User Manual Peripherals Connecting the Power Adaptor A: DC power Jack EBOX-ALN3350 use +12V@3.33A AC adapter with power cable for the power source Connecting the Monitor B: VGA Connection Connecting VGA display via VGA cable C: HDMI Connection Connect HDMI display via HDMI cable...
  • Page 15 EBOX-ALN3350 User Manual Peripherals Connecting Input & Output ports EBOX-ALN3350 provides 4 external USB ports (2 at front, 2 at rear). D: USB 3.0 port Connection for external USB devices, supports up to 5Gbps data transfer rate E: Serial port (RS-232/485/422)
  • Page 16 EBOX-ALN3350 User Manual Chapter DMP Electronics Inc.

  • Page 17: Bios Reconfiguring

    1. AMI BIOS is used in EBOX; To reconfigure the hardware, press <Del> or <Esc> key to enter BIOS setup main menu. 2. Press “F3” key to load optimized defaults as below: 3. After setting, please press “F4” key to save & exit. DMP Electronics Inc.

  • Page 18: Com Setting (Rs-232/485/422

    Press <F7> after boot up, a shortcut boot up device select menu will appear. Use direction key to select boot device and enter to boot up. BIOS COM Setting (RS-232/485/422) 1. Press <Del> or <Esc> key to enter BIOS menu after boot up, then press <Tab> and move to “Advanced” and “Super IO Configuration”. DMP Electronics Inc.
  • Page 19 EBOX-ALN3350 User Manual 2. Move to “Serial Port 1 Configuration”. 3. Next to Transmission Mode and select COM port Mode. 4. Press “F4” key to save & exit. DMP Electronics Inc.

  • Page 20: At Mode Setting (Auto Power On Function)

    EBOX-ALN3350 User Manual AT Mode Setting (Auto Power On Function) EBOX-ALN3350 supports “Auto Power On function”, system will boot up automatically after power restored. 1. In BIOS Menu, move to “Chipset” and “South Cluster Configuration”. 2. Set “System State after Power Failure” as “Always On”, press “F4” key to save & exit.

  • Page 21: Serial Port Console Redirection

    2. Set “Terminal Type” as “VT100+”, press “F4” key to save & exit. Terminal Type Emulation: [ANSI]: Extended ASCII char set; [VT100]: ASCII char set; [VT100+]: Extended VT100 to support color, function keys, etc. [VT-UTF8]: Uses UTF8 encoding to map Unicode chars onto 1 or more Bytes. DMP Electronics Inc.

  • Page 22: Os Selection

    Three optional settings: [Windows], [Intel Linux] and [MSDOS]. Note: User need to go to this item to select the OS mode before installing corresponding OS drivers, otherwise problems will occur when installing drivers. 3. After setting, press “F4” key to save & exit. DMP Electronics Inc.

  • Page 23: Pxe Diskless Boot Selection

    1. Move to “Advanced” for “Network Stack Configuration” and make further setting. 2. Set “Network Stack” Enabled and Ipv4 & Ipv6 PXE Support will appear. Note: Ipv4 & Ipv6 stand for Internet Protocol version 4 & 6, when set to Enabled, PXE diskless boot will be created. DMP Electronics Inc.

  • Page 24: Drivers Installation Guide

    Chipset driver: (Intel® Chipset Device Software) 1. Unzip the downloaded file and execute SetupChip.exe, then click “Next” to install: 2. A license agreement message will pop out, click Accept and install. 3. Click Finish to complete the setup process. DMP Electronics Inc.

  • Page 25: Graphic Driver

    1. Execute igxpin.exe and click “Next” to install: 2. A license agreement message will pop out, click Accept and install. 3. After installed, select “Yes, I want to restart this computer now” and click Finish to reboot. DMP Electronics Inc.

  • Page 26: Audio Driver

    EBOX-ALN3350 User Manual Audio driver: 1. Execute Setup.exe and installer will pop out, then click “Next” to install: 2. After installed, select “Yes, I want to restart this computer now” and click Finish to reboot. DMP Electronics Inc.

  • Page 27: Lan Driver

    EBOX-ALN3350 User Manual LAN driver: 1. Execute Setup.exe and InstallShield Wizard will pop out, then click “Next” to install: 2. After installed, click “Finish” to exit the wizard. DMP Electronics Inc.

  • Page 28: Txe Driver

    Trusted Execution Engine is a computer hardware technology primary goals are: Attestation of the authenticity of a platform and its operating system. 1. Execute SetupTXE.exe and click “Next” to install: 2. Check “I accept the term in the License Agreement and click “Next” to install. 3. Click “Finish” after successfully installed. DMP Electronics Inc.

  • Page 29: Irmt Driver

    1. Execute Setup.exe and click “Next” to install: 2. Check “I accept the term in the License Agreement and click “Next” to install. 3. Click “Finish” after successfully installed. DMP Electronics Inc.

  • Page 30: Ish Driver

    EBOX-ALN3350 User Manual ISH driver: (Intel® Integrated Sensor Solution) Intel® Integrated Sensor Solution installs Intel Integrated Sensor Solution driver to EBOX. 1. Double click SetupISS.exe and click install. 2. Click “Finish” after successfully installed. DMP Electronics Inc.
  • Page 31 EBOX-ALN3350 User Manual Chapter DMP Electronics Inc.

  • Page 32: Onboard Connectors Summary

    52-pin Ethernet x 2 G-LAN RJ45 connector 8-pin SIM card holder SIM card holder 6-pin Audio jack Mic in/Line out Combo connector 2-pin USB 3.0 x 4 USB 3.0 connector 9-pin COM (RS-232/485/422) 2.0mm 9-pin header 9-pin DMP Electronics Inc.

  • Page 33: Pin Assignments

    Hot Plug Detect TMDS_CLK+ J4: VGA – 15-pin D-Sub connector Pin # Signal Name Pin # Signal Name Pin # Signal Name HYSYNC VSYNC J5: SATAIII connector Pin # Signal Name Pin # Signal Name Receive- Transmit+ Receive+ Transmit- DMP Electronics Inc.
  • Page 34 PERP0 / MSATA_RXN 1.5V SMB_CLK SMB_DATA PERTN0 / MSATA_TXN PERTP0 / MSATA_TXP USB_D- USB_D+ 3.3V LED_WWAN# / NC 3.3V LED_WLAN# / NC LED_WPAN# / NC Reserved / NC 1.5V Reserved / NC Reserved / NC 3.3V MSATA_DET DMP Electronics Inc.
  • Page 35 LPC_CLK RESET# 3.3V PERN0 PERP0 1.5V SMB_CLK SMB_DATA PERTN0 PERTP0 USB_D- USB_D+ 3.3V LED_WWAN# / NC 3.3V LED_WLAN# / NC LED_WPAN# / NC Reserved / NC 1.5V Reserved / NC Reserved / NC 3.3V Reserved / NC DMP Electronics Inc.
  • Page 36 J13: RS-232/485/422 9-pin D-Sub connector Pin # Signal Name Pin # Signal Name DCD/ RS-422 TX-/ RS-485 DATA- DSR1 RXD/ RS-422 TX+/ RS-485 DATA+ RTS1 TXD1/ RS-422RX+ CTS1 DTR1/ RS-422RX- LEDS: POWER ON/ OFF LED Color State Blue Power On DMP Electronics Inc.
  • Page 37 EBOX-ALN3350 User Manual Chapter DMP Electronics Inc.

  • Page 38: Taking Care Of Ebox

    EBOX-ALN3350 User Manual Taking Care of EBOX This section provide guidelines on using EBOX-ALN3350 – Safe using, Storing and Handling. Storing Do not place EBOX in a location that is subject to:  Heating sources, such as stove, oven, heater, radiator or air duct ...
  • Page 39 When a solid object falls or a liquid spills onto EBOX, turn off EBOX immediately; unplug the LAN and power cables. Contact a qualified person or your dealer to check the EBOX before you use it again. Always disconnect the power cord from the power source before cleaning EBOX. DMP Electronics Inc.

  • Page 40: Troubleshooting

    Go to “Save & Exit” menu using the Direction keys <↑↓> and choose the option “Restore Defaults”, then press <Enter>. A message dialog appears as seen below, hit “Y” key and presses <Enter> to save and recover to the factory setting. “Restore Defaults (Y/N)? Y” DMP Electronics Inc.
  • Page 41 If EBOX unit connected to a CD/ DVD or USB Drivers, remove all peripherals. And restart to check if Windows operating system starts properly. If EBOX unit continues to display the message “Operating system not found,” and Windows does not start, please contact nearest dealer for servicing. DMP Electronics Inc.
  • Page 42 EBOX-ALN3350 User Manual Chapter DMP Electronics Inc.

  • Page 43: Warranty

    6. A copy of the invoice for the RMA product(s) will also be shipped to Purchaser. 7. The freight of return to DMP Electronics Inc. is charged to the Purchaser's account and accompanied by an RMA number. Any Returns with freight collect will be refused and returned to you. After Repairing, the cost of freight will be paid by Seller.
