SBC81205 Core™ 2 Quad SBC User's Manual

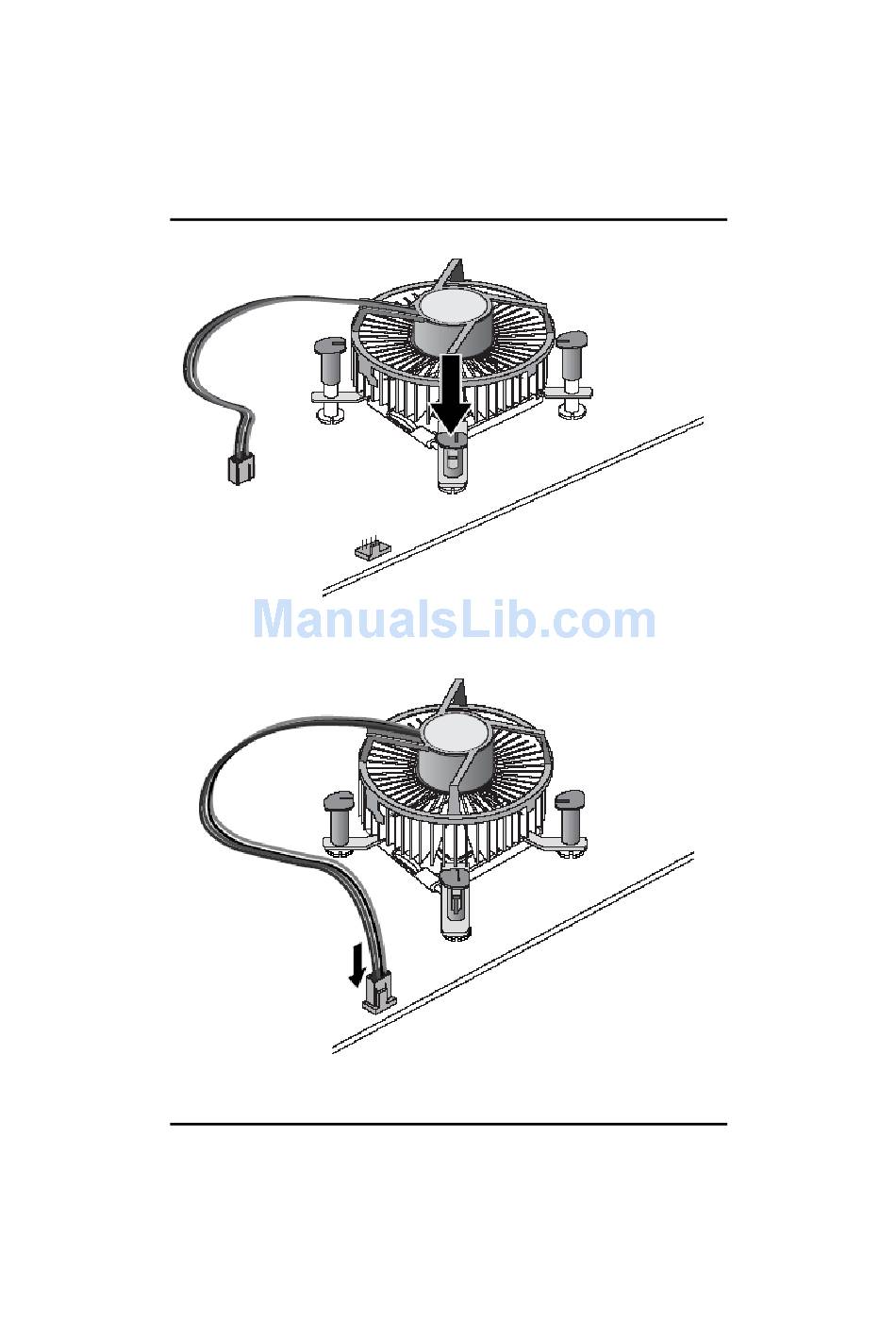

Screw the CPU cooling fan onto the board.
Make sure the CPU fan is plugged to the CPU fan connector.
Hardware Installation
19
