SBC81205 Core™ 2 Quad SBC User's Manual

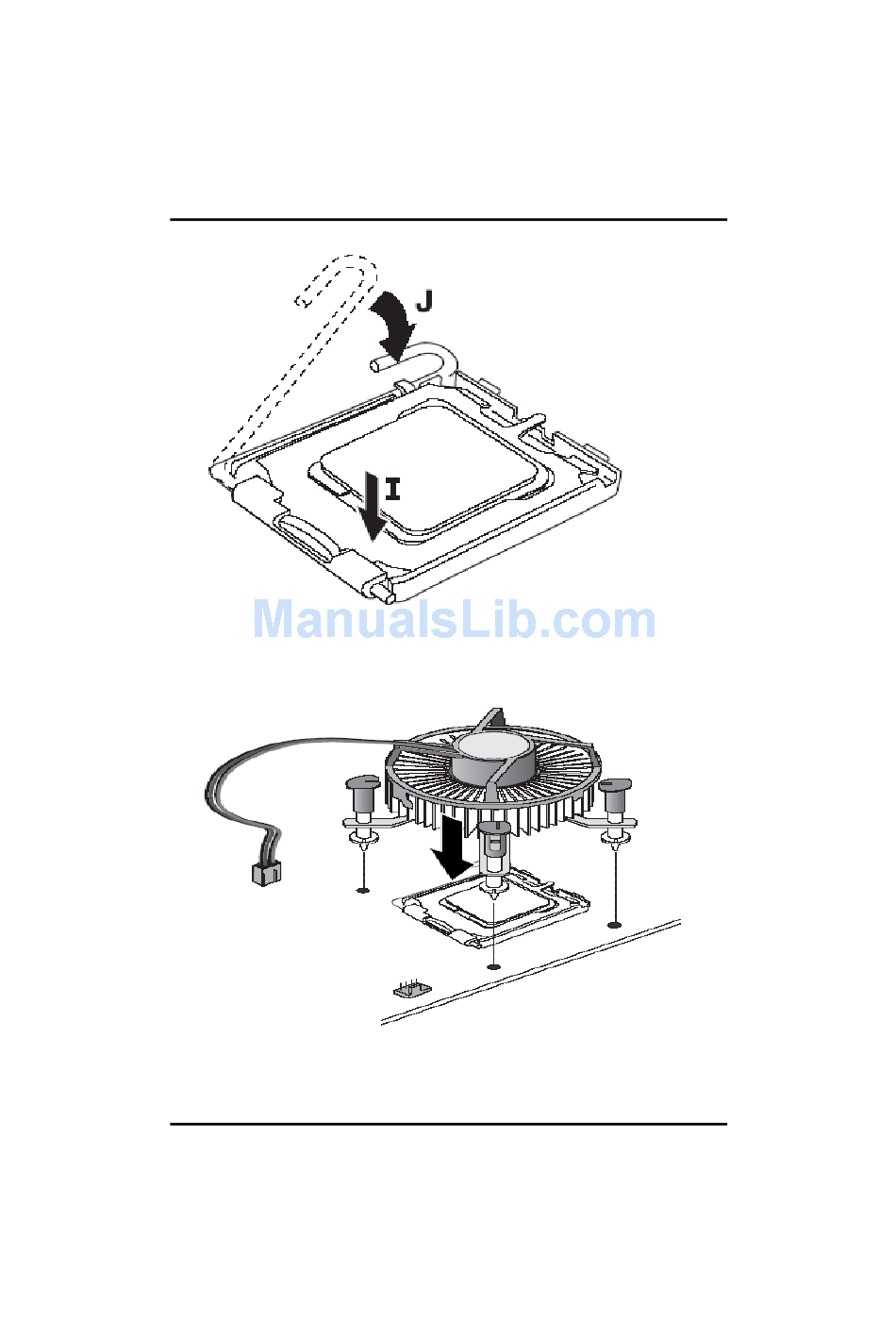

Slightly push down the cover and hook the lever (I~J). The CPU is
completely locked.
Orientate the CPU cooling fan to fixing holes on the board.
Hardware Installation
18
