Wiring Connections

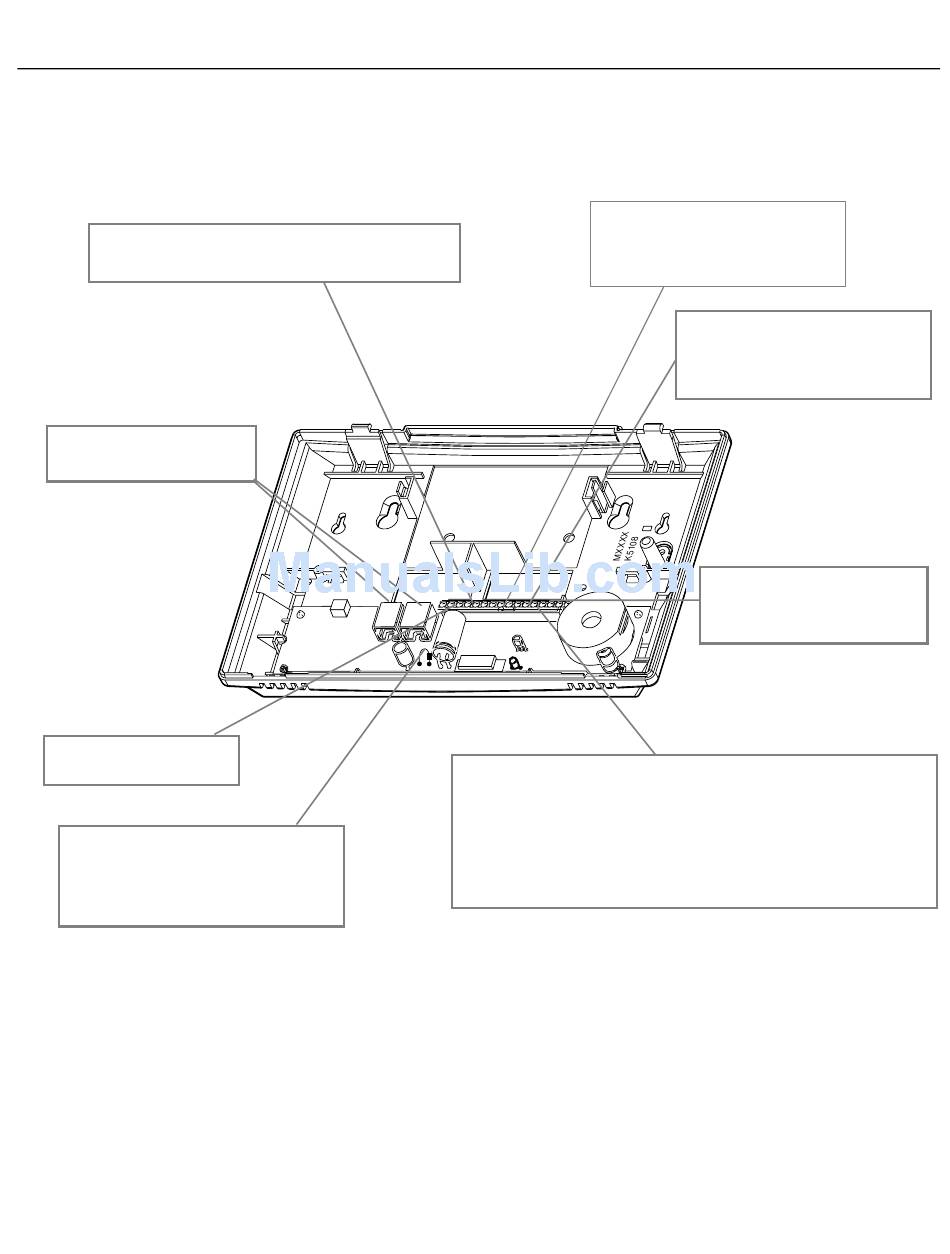

Wiring Overview
The following summarizes the connections required. Refer to the Wiring Connections paragraph on the next page
and the Summary of Connections diagram on the inside back cover when making connections.
Supports 1 EOLR supervised zone using either closed circuit
or open circuit sensors.
PHONE LINES
Use either the plug-in jacks or the
screw terminals.
EARTH GROUND
See Earth Ground paragraph.
LOCAL SOUNDER DISABLE JUMPER
Cut the white jumper to disable local sounder,
leaving only the external sounder active.
UL NOTE: Do not cut sounder jumper for UL
installations.
Earth Ground Considerations
Connect terminal 1 to a good earth ground.
The designated earth ground terminal (1) must be terminated in a good earth ground for the lightning transient
protective devices in this product to be effective. The following are examples of good earth grounds available at
most installations:
Metal Cold Water Pipe: Use a noncorrosive metal strap (copper is recommended) firmly secured to the pipe to
which the ground lead is electrically connected and secured.
AC Power Outlet Ground: Available from 3-prong, 120VAC power outlets only. To test the integrity of the ground
terminal, use a three-wire circuit tester with neon lamp indicators, such as the UL Listed Ideal Model 61–035, or
equivalent, available at most electrical supply stores.
HARDWIRE ZONE
Compatible with ALARMNET 7885C
and 7720 and LYNXAVM Devices.
The system includes a built-in sounder in the master keypad. If desired, an
external bell or piezo sounder can be connected.
Bell: Use a 6-14V bell with maximum current drain of 120mA.
Piezo: Use a 6-14V piezo sounder with maximum current drain of 30mA.
This control complies with NFPA requirements for temporal pulse sounding of
fire notification appliances.
Temporal pulse sounding for a fire alarm consists of the following: 3 pulses –
pause – 3 pulses – pause – 3 pulses. . .
–6–
LONG RANGE RADIO/
AAV TRIGGER
POWERLINE CARRIER DEVICES
Supports up to 8 Powerline Carrier
Devices for turning on/off lights and
appliances. Requires the use of an
ADEMCO 1332X10 transformer.
AC TRANSFORMER
Use the supplied ADEMCO 1332X10
9VAC, 15VA Plug-in Transformer
(1332CN in Canada).
01000-005-V0
SOUNDERS
