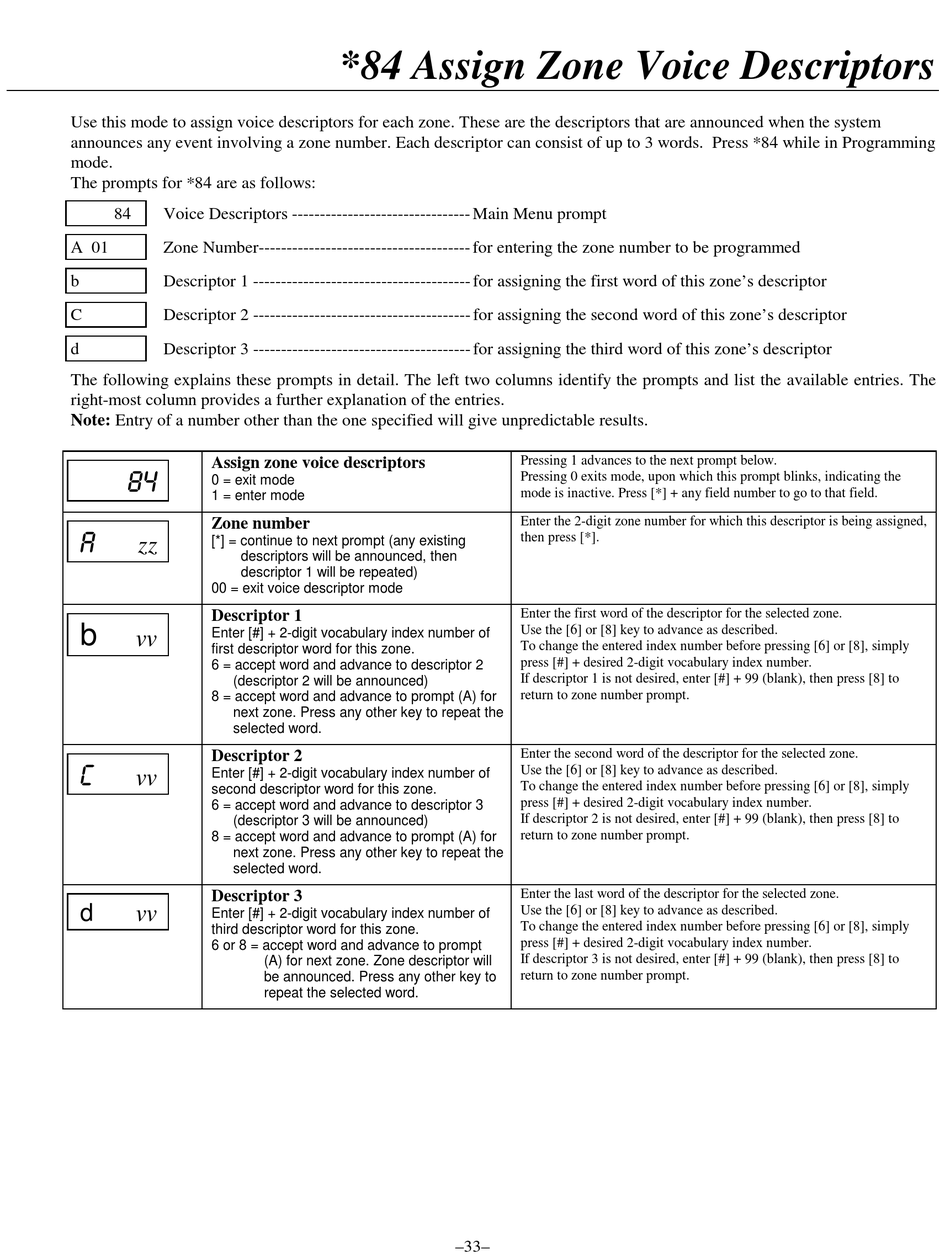

Assign Zone Voice Descriptors - ADEMCO LYNXR Installation Manual

Use this mode to assign voice descriptors for each zone. These are the descriptors that are announced when the system
announces any event involving a zone number. Each descriptor can consist of up to 3 words. Press *84 while in Programming
mode.
The prompts for *84 are as follows:
84 Voice Descriptors -------------------------------- Main Menu prompt
A 01 Zone Number-------------------------------------- for entering the zone number to be programmed
b Descriptor 1 --------------------------------------- for assigning the first word of this zone's descriptor
C Descriptor 2 --------------------------------------- for assigning the second word of this zone's descriptor
d Descriptor 3 --------------------------------------- for assigning the third word of this zone's descriptor
The following explains these prompts in detail. The left two columns identify the prompts and list the available entries. The
right-most column provides a further explanation of the entries.
Note: Entry of a number other than the one specified will give unpredictable results.

Assign zone voice descriptors


0 = exit mode
1 = enter mode
Zone number
%
zz [*] = continue to next prompt (any existing
descriptors will be announced, then
descriptor 1 will be repeated)
00 = exit voice descriptor mode
Descriptor 1
b
Enter [#] + 2-digit vocabulary index number of
vv
first descriptor word for this zone.
6 = accept word and advance to descriptor 2
(descriptor 2 will be announced)
8 = accept word and advance to prompt (A) for
next zone. Press any other key to repeat the
selected word.
Descriptor 2
'
Enter [#] + 2-digit vocabulary index number of
vv
second descriptor word for this zone.
6 = accept word and advance to descriptor 3
(descriptor 3 will be announced)
8 = accept word and advance to prompt (A) for
next zone. Press any other key to repeat the
selected word.
Descriptor 3
d
vv
Enter [#] + 2-digit vocabulary index number of
third descriptor word for this zone.
6 or 8 = accept word and advance to prompt
*84 Assign Zone Voice Descriptors
(A) for next zone. Zone descriptor will
be announced. Press any other key to
repeat the selected word.
Pressing 1 advances to the next prompt below.
Pressing 0 exits mode, upon which this prompt blinks, indicating the
mode is inactive. Press [*] + any field number to go to that field.
Enter the 2-digit zone number for which this descriptor is being assigned,
then press [*].
Enter the first word of the descriptor for the selected zone.
Use the [6] or [8] key to advance as described.
To change the entered index number before pressing [6] or [8], simply
press [#] + desired 2-digit vocabulary index number.
If descriptor 1 is not desired, enter [#] + 99 (blank), then press [8] to
return to zone number prompt.
Enter the second word of the descriptor for the selected zone.
Use the [6] or [8] key to advance as described.
To change the entered index number before pressing [6] or [8], simply
press [#] + desired 2-digit vocabulary index number.
If descriptor 2 is not desired, enter [#] + 99 (blank), then press [8] to
return to zone number prompt.
Enter the last word of the descriptor for the selected zone.
Use the [6] or [8] key to advance as described.
To change the entered index number before pressing [6] or [8], simply
press [#] + desired 2-digit vocabulary index number.
If descriptor 3 is not desired, enter [#] + 99 (blank), then press [8] to
return to zone number prompt.
–33–
