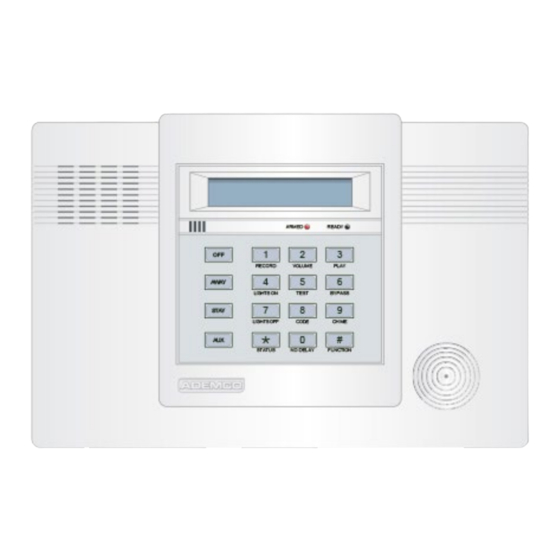

ADEMCO Lynx Installation Instructions Manual

Ademco lynx security system installation instructions
Hide thumbs Also See for Lynx:
Table of Contents

Advertisement

Quick Links

See also: User Manual

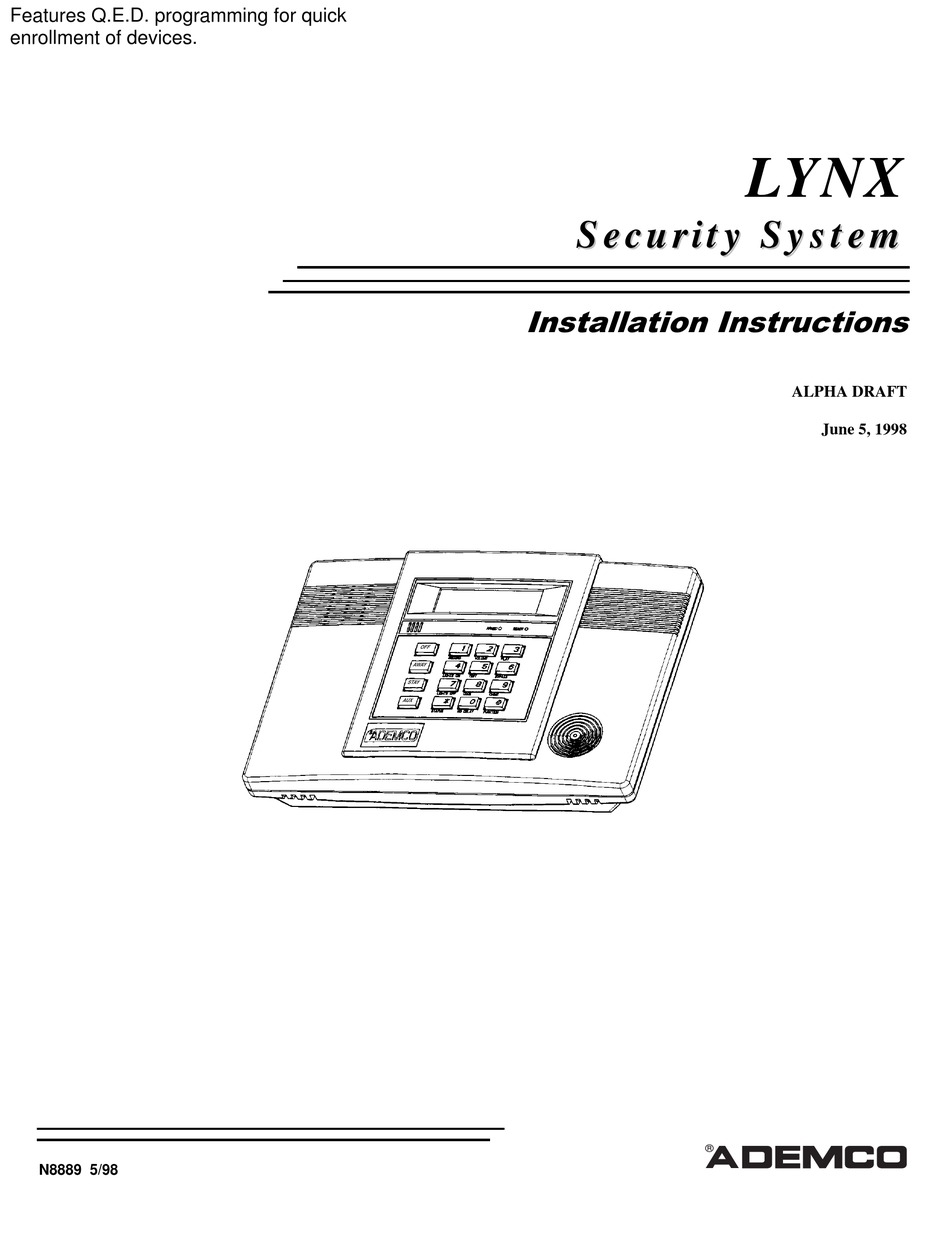

Features Q.E.D. programming for quick
enrollment of devices.
LYNX
S
e
c
u
r
i
t
y
S
y
s
t
e
m
S
e
c
u
r
i
t
y
S
y
s
t
e
m
,QVWDOODWLRQ,QVWUXFWLRQV
ALPHA DRAFT
June 5, 1998
OFF
AWAY
STAY
AUX
®
N8889 5/98

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lynx and is the answer not in the manual?

Questions and answers

Related Manuals for ADEMCO Lynx

Summary of Contents for ADEMCO Lynx

  • Page 1 Features Q.E.D. programming for quick enrollment of devices. LYNX ,QVWDOODWLRQ,QVWUXFWLRQV ALPHA DRAFT June 5, 1998 AWAY STAY ® N8889 5/98...

  • Page 2: Recommendations For Proper Protection

    RECOMMENDATIONS FOR PROPER PROTECTION The Following Recommendations For The Location Of Fire And Burglary Detection Devices Help Provide Proper Coverage For The Protected Premises. Recommendations For Smoke And Heat Detectors With regard to the number and placement of smoke/heat detectors, we subscribe to the recommendations contained in the National Fire Protection Association's (NFPA) Standard #72 noted below.

  • Page 3: Table Of Contents

    Table of Contents SYSTEM FEATURES........................4 MOUNTING THE CONTROL ......................5 WIRING CONNECTIONS........................ 6 AC POWER AND BACKUP BATTERY ..................8 INSTALLING WIRELESS ZONES ....................9 MECHANICS OF PROGRAMMING ..................... 12 ZONE RESPONSE TYPE DEFINITIONS ..................13 DATA FIELD DESCRIPTIONS ..................... 15 *56 ZONE PROGRAMMING MODE ....................

  • Page 4: System Features

    System Features The LYNX is a self-contained, wireless control/communicator that features easy installation and usage. Its built-in speaker provides voice annunciation of system status along with voice descriptors of each zone (if programmed). The following illustration highlights the main features of this system.

  • Page 5: Mounting The Control

    Desktop Mounting If desired, an optional mounting base (model LYNX-DM, purchased separately) allows the LYNX to be used on a desktop. 1. If used, bring all wiring through the bottom of the mounting base before making connections to the LYNX.

  • Page 6: Wiring Connections

    Requires the use of a PL513 Powerline Interface Module. AC TRANSFORMER PHONE LINES Use the supplied ADEMCO 1332 Use either the plug-in jacks or the 9VAC, 15VA Plug-in Transformer. screw terminals. EARTH GROUND See Earth Ground SOUNDERS paragraph.
  • Page 7 Connect open circuit devices in parallel across the loop. The 2000 4. Powerline Carrier Device Connections ohm EOLR must be connected The LYNX supports up to 8 Powerline Carrier across the loop at the last device. Devices. If using these devices, the LYNXrequires 3.

  • Page 8: Ac Power And Backup Battery

    AC Power and Backup Battery The LYNX is powered by a 9VAC, 15VA Plug-in Transformer, ADEMCO 1332. Refer to the wiring table below for wire gauge and length. Distance of Transformer from the Control Wire Gauge to Use Up to 75 feet...

  • Page 9: Installing Wireless Zones

    Installing Wireless Zones General Information Zones: The control supports up to 24 wireless zones using 5800 Series transmitters, and up to 16 wireless buttons. Range: The built-in RF receiver can detect signals from wireless transmitters within a nominal range of 200 feet. Transmitters: 5800 Series transmitters have built-in serial numbers that must be entered into the system using the 56 or 83 interactive mode, or input to the control via the downloader.
  • Page 10 Transmitter Battery Life Do not install batteries in wireless transmitters until ready to enter their serial numbers (described in the *83 Sequential Mode programming section). After entering a transmitter’s serial number, batteries need not be removed. • Batteries in the wireless transmitters may last from 4–7 years, depending on the environment, usage, and the specific wireless device being used.

  • Page 11: Series Transmitter Loop Numbers

    5800 Series Transmitter Loop Numbers The following illustration shows the compatible transmitters and their associated input types and loop designations. Refer to this information when programming transmitters. LOOP LOOP LOOP (REED) (REED) LOOP 1 LOOP 1 (TERMINALS) (TERMINALS) LOOP ALTERNATE 5 8 1 6 5 8 1 6 M N (ALWAYS USE)

  • Page 12: Mechanics Of Programming

    Mechanics of Programming General Programming Information Programming options are stored in nonremovable, electrically erasable, nonvolatile EEROM memory. You can program the system at any time, even at the installer's premises prior to the actual installation. Simply apply power temporarily to the Control and then program the unit as desired. There are two programming modes: •...

  • Page 13: Zone Response Type Definitions

    Zone Response Type Definitions General Information During programming, you must assign a zone type to each zone, which defines the way in which the system responds to faults in that zone. Zone types are defined below. Program a zone with this zone type if the zone is not used. Type 00 Zone Not Used Type 01...
  • Page 14 Type 08 This zone type sends a report to the central station and provides an alarm sound at the keypad. (No bell output is provided and there is no keypad timeout.) This zone type is 24-hour usually assigned to a zone containing a button for use in personal emergencies, or to a Auxiliary Alarm zone containing monitoring devices such as water or temperature sensors, etc.

  • Page 15: Data Field Descriptions

    Data Field Descriptions Defaults (where applicable) are Indicated in Text. The following pages list all data fields in this Control (in numerical order). Use the blank programming form to record the data for this installation. Note that both keypad LEDs flash while in Programming mode. The Installer Code is used to enter the 4-digit Master Security Code.
  • Page 16 The system will wait the time entered before sounding alarm upon Entry delay 01 * 35 entering if system is not disarmed. 00-99 = entry delay time in seconds. UL installations: must be set for a maximum of 20 seconds The system will wait the time entered before sounding alarm upon Entry delay 02 * 36...

  • Page 17: Report Format

    An entry of "0" in the second box will eliminate the expanded message for that report. With ADEMCO Contact ID Reporting: Enter a digit in the first box to enable the zone to report. Use a different digit for each zone until you have used up available digits. If the number of zones exceeds the number of available digits, begin with digit 1 again.

  • Page 18: Exit Error Report Code

    SYSTEM STATUS REPORT CODES ( 59– If the system is armed and an entry/exit or interior zone is still open Exit error report code * 59 after the exit delay time has expired, an alarm will sound at the keypad See notes above and external sounder.

  • Page 19: Pager Characters

    This is sent when a system low battery condition is restored to normal. Low bat restore report code * 74 See notes on previous page This is sent when a transmitter that previously sent in a “low battery” RF transmitter low battery restore code * 75 message has sent a message indicating it no longer has a low battery See notes on previous page...
  • Page 20 This is a future option and must be set to 0. If this option is Future use (option selection) * 91 inadvertently enabled, the Contact ID event code 606 may be sent to the 0 = must be zero central station after an alarm report. This option can be used to limit the number of messages (alarm &...

  • Page 21: Zone Programming Mode

    *56 Zone Programming Mode This is an interactive menu mode that is used to program zone numbers, zone types, alarm and report codes, and to identify the type of loop input device. This mode can also be used for entering 5800 Series transmitter serial numbers.
  • Page 22 While in Program mode, press 56 to enter Zone Programming Menu Mode. Refer to the zone assignment table for 56 on the separate programming form. The following explains the *56 prompts in detail. The left two columns identify the prompts and list the available entries for each.
  • Page 23 If the transmitter’s serial number has not been previously entered, you may Enroll mode enter the enroll mode now by entering "1.” Enter "0" if you wish to enter 0 = skip to the VOICE DESCRIPTOR prompt the transmitter later, using the *83 Sequential Mode described in the *83 (1C);...

  • Page 24: Device Programming Menu Mode

    *80 Device Programming Menu Mode Powerline Carrier devices (eg., X-10 brand devices) are programmable switches that can be used to perform many different functions. They can be used to turn lights on and off, control sounders, or for status indications. In this system, each device must be programmed as to how to act (ACTION), when to activate (START), and when to deactivate (STOP).
  • Page 25 The "STOP" programming determines when and under what conditions the device will be de- STOP activated. The following options are available: Upon Restore of a Zone List Restore Zone List: If a "ZONE LIST" is used as the “Stop” event, the device will de-activate when all the zones in that list restore from a previous fault, trouble, or alarm condition.
  • Page 26 The following explains these prompts in detail. The left two columns identify the prompts and list the available entries. The right-most column provides a further explanation of the entries. NOTE: Entry of a number other than one specified will give unpredictable results. Pressing 1 advances to the next prompt below.

  • Page 27: Zone List Menu Mode

    *81 Zone List Menu Mode While in Program mode, press 81 to enter Zone List Menu Mode. This mode is used to program zone lists for output devices (programmed in 80 menu mode) or Chime-by-Zone in Zone List 3. NOTES: •...

  • Page 28: Sequential Mode

    *83 Sequential Mode By using this mode, you can add the serial number of a transmitter in a zone, but retain all other existing data that has been programmed for that zone. Note that the *83 Sequential mode requires that all zone information must first be entered using the *56 Zone Programming mode Certain button-type transmitters have more than one button (e.g., 5801).

  • Page 29: Assign Zone Voice Descriptors

    *84 Assign Zone Voice Descriptors Use this mode to assign voice descriptors for each zone. These are the descriptors that are announced when the system announces any event involving a zone number. Each descriptor can consist of up to 3 words. Press *84 while in Programming mode.

  • Page 30: Voice Vocabulary Index

    VOICE VOCABULARY INDEX 00 ½ second pause 70 Custom Word #1 14 FIRE 25 MAIN 40 UPSTAIRS 71 Custom Word #2 01 ALARM 15 FLOOR 26 MASTER 41 UTILITY 72 Custom Word #3 02 ATTIC 16 FRONT 27 MESSAGE 73 Custom Word #4 28 MOTION 74 Custom Word #5 42 WINDOW...

  • Page 31: Remote Programming/Control (Downloading)

    Remote Programming/Control (Downloading) General Information The LYNX can be remotely programmed from an IBM-compatible Personal Computer (PC), a HAYES Modem, and ADEMCO's V-LINK® Software (as specified below). Downloading may only be performed if a technician is at the site. Multiple levels of security protect remote programming of the control against compromise by someone attempting to defeat the system.

  • Page 32: System Operation

    System Operation Security Codes Installer Code The installer programs the 4-digit Installer Code initially as part of the programming procedure. The factory default Installer Code is 4-1-1-2, but may be changed in field The Installer Code is the only code that can enter Programming mode and also, in normal operation mode, is used to enter the Master Code, which allows access to the normal functions of the system.

  • Page 33: Keypad Functions

    Keypad Functions Empty boxes represent the user’s security code. Security Functions Checking system status: STATUS To arm in STAY mode: STAY To restart exit delay: (applies only if system is armed in Stay mode) ------ STAY To arm in AWAY mode: AWAY To arm with NO DELAY: AWAY...

  • Page 34: Powerline Carrier Devices

    Powerline Carrier Devices If Powerline Carrier Devices are used, two keypad entries available to the user are included. They can manually activate or deactivate the device(s) for starting or stopping some action, such as turning lights on or off, etc. These keypad entries are: Security Code* + [#] + [4] + Device # activates (starts) that device.

  • Page 35: Testing The System

    Testing the System Test Mode After installation is completed, the security system should be carefully tested, as follows. With the system in the disarmed state, check that all zones are intact. If the READY LED is not lit, press the [ ] key to display the faulted zone(s).

  • Page 36: System Communication

    3 (or 4) times and followed by the second digit. This is the “expanded” digit. 4+2 Format Comprises a 4-digit subscriber number and 2-digit report code. ADEMCO Contact ID Comprises a 4-digit subscriber number, 1-digit event qualifier Reporting Format ("new" or "restore"), 3-digit event code, and 3-digit zone number, user number, or system status number (see the following page).
  • Page 37 SSSS R B b R B R B R B (R B )b ADEMCO Contact ID Reporting takes the following format: CCCC Q EEE GG ZZZ where: CCCC =Customer (subscriber) ID Q = Event qualifier, where: E = new event, and R = restore EEE = Event code (3 hex digits) (for a complete list of event codes, refer to the central office receiver manual) GG = Always “00”...

  • Page 38: Troubleshooting Guide

    Troubleshooting Guide S Y S T E M ( i n c l u d i n g W i r e l e s s ) SYMPTOM POSSIBLE CAUSE REMEDY 1a. Transmitter not properly powered. Check or change transmitter's battery. Transmitter signal not received at control.

  • Page 39: Contacting Technical Support

    2c. Digital communicator malfunctioning. 2c. Check with a different LYNX. 2d. Telephone number in program needs prefix or 2d. Program prefix or access code into the LYNX. access code. 2e. System cannot work in this situation. 2e. Telephone call to central monitoring station requires operator assistance.

  • Page 40: Regulatory Agency Statements

    Regulatory Agency Statements UL NOTICE: This is a "Grade A" residential system. FCC STATEMENT FCC ID: CFS8DLLYNX THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

  • Page 41: Specifications

    KISSOFF. ADEMCO Contact ID Reporting, 10 characters/sec., DTMF (TouchTone) Data Tones, 1400/2300Hz ACK, 1400Hz KISSOFF. ADEMCO Low Speed, 10 pulses/sec, 1900Hz Data Tone, 1400Hz ACK/KISSOFF. Radionics/SESCOA, 20 pulses/sec, 1800Hz Data Tone, 2300Hz ACK/KISSOFF. Can report 0–9, B–F. Line Seize: Double Pole Ringer Equivalence: TBD FCC Registration No.: TBD...

  • Page 42: Limitations Of This System Statement

    WARNING THE LIMITATIONS OF THIS ALARM SYSTEM While this System is an advanced design security system, it does not offer guaranteed protection against burglary, fire or other emergency. Any alarm system, whether commercial or residential, is subject to compromise or failure to warn for a variety of reasons. For example: •...

  • Page 43: Summary Of Connections Diagram

    INCOMING PHONE PHONE ZONE THIS UNIT. LINE LINE ALL OUTPUT CIRCUITS ARE POWER LIMITED. PLUG-IN LOCAL SOUNDER TRANSFORMER DISABLE JUMPER (e.g., ADEMCO 1332) CUT = DISABLE TO 24HR 110VAC 9VAC PIEZO UNSWITCHED BELL 15VA EARTH INCOMING HANDSET OUTLET PHONE GROUND...

  • Page 44: Warranty

    24 months from the date stamp control on the product or, for products not having an Ademco date stamp, for 12 months from date of original purchase unless the installation instructions or catalog sets forth a shorter period, in which case the shorter period shall apply.
