ADEMCO LYNXR Installation Manual page 32

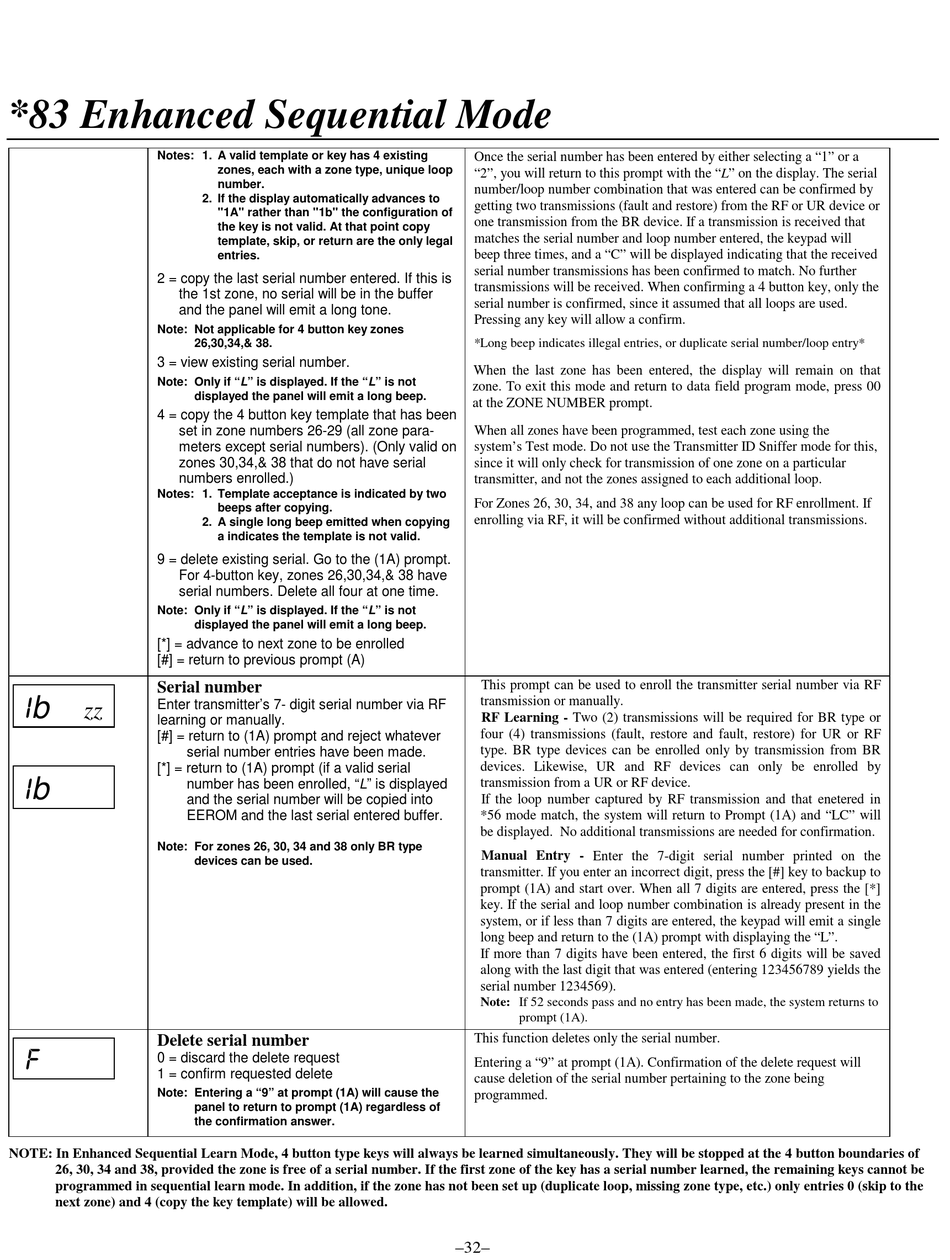

*83 Enhanced Sequential Mode
Notes: 1. A valid template or key has 4 existing
2 = copy the last serial number entered. If this is
the 1st zone, no serial will be in the buffer
and the panel will emit a long tone.
Note: Not applicable for 4 button key zones
3 = view existing serial number.
Note: Only if " L " is displayed. If the " L " is not
4 = copy the 4 button key template that has been
set in zone numbers 26-29 (all zone para-
meters except serial numbers). (Only valid on
zones 30,34,& 38 that do not have serial
numbers enrolled.)
Notes: 1. Template acceptance is indicated by two
9 = delete existing serial. Go to the (1A) prompt.
For 4-button key, zones 26,30,34,& 38 have
serial numbers. Delete all four at one time.
Note: Only if " L " is displayed. If the " L " is not
[*] = advance to next zone to be enrolled
[#] = return to previous prompt (A)
Serial number
- b
Enter transmitter's 7- digit serial number via RF
zz
learning or manually.
[#] = return to (1A) prompt and reject whatever
serial number entries have been made.
[*] = return to (1A) prompt (if a valid serial
- b
number has been enrolled, " L " is displayed
and the serial number will be copied into
EEROM and the last serial entered buffer.
Note: For zones 26, 30, 34 and 38 only BR type
Delete serial number
*
0 = discard the delete request
1 = confirm requested delete
Note: Entering a "9" at prompt (1A) will cause the
NOTE: In Enhanced Sequential Learn Mode, 4 button type keys will always be learned simultaneously. They will be stopped at the 4 button boundaries of
26, 30, 34 and 38, provided the zone is free of a serial number. If the first zone of the key has a serial number learned, the remaining keys cannot be
programmed in sequential learn mode. In addition, if the zone has not been set up (duplicate loop, missing zone type, etc.) only entries 0 (skip to the
next zone) and 4 (copy the key template) will be allowed.
zones, each with a zone type, unique loop
number.
2. If the display automatically advances to
"1A" rather than "1b" the configuration of
the key is not valid. At that point copy
template, skip, or return are the only legal
entries.
26,30,34,& 38.
displayed the panel will emit a long beep.
beeps after copying.
2. A single long beep emitted when copying
a indicates the template is not valid.
displayed the panel will emit a long beep.
devices can be used.
panel to return to prompt (1A) regardless of
the confirmation answer.
Once the serial number has been entered by either selecting a "1" or a
"2", you will return to this prompt with the "L" on the display. The serial
number/loop number combination that was entered can be confirmed by
getting two transmissions (fault and restore) from the RF or UR device or
one transmission from the BR device. If a transmission is received that
matches the serial number and loop number entered, the keypad will
beep three times, and a "C" will be displayed indicating that the received
serial number transmissions has been confirmed to match. No further
transmissions will be received. When confirming a 4 button key, only the
serial number is confirmed, since it assumed that all loops are used.
Pressing any key will allow a confirm.
*Long beep indicates illegal entries, or duplicate serial number/loop entry*
When the last zone has been entered, the display will remain on that
zone. To exit this mode and return to data field program mode, press 00
at the ZONE NUMBER prompt.
When all zones have been programmed, test each zone using the
system's Test mode. Do not use the Transmitter ID Sniffer mode for this,
since it will only check for transmission of one zone on a particular
transmitter, and not the zones assigned to each additional loop.
For Zones 26, 30, 34, and 38 any loop can be used for RF enrollment. If
enrolling via RF, it will be confirmed without additional transmissions.
This prompt can be used to enroll the transmitter serial number via RF
transmission or manually.
RF Learning - Two (2) transmissions will be required for BR type or
four (4) transmissions (fault, restore and fault, restore) for UR or RF
type. BR type devices can be enrolled only by transmission from BR
devices. Likewise, UR and RF devices can only be enrolled by
transmission from a UR or RF device.
If the loop number captured by RF transmission and that enetered in
*56 mode match, the system will return to Prompt (1A) and "LC" will
be displayed. No additional transmissions are needed for confirmation.
Manual Entry - Enter the 7-digit serial number printed on the
transmitter. If you enter an incorrect digit, press the [#] key to backup to
prompt (1A) and start over. When all 7 digits are entered, press the [*]
key. If the serial and loop number combination is already present in the
system, or if less than 7 digits are entered, the keypad will emit a single
long beep and return to the (1A) prompt with displaying the "L".
If more than 7 digits have been entered, the first 6 digits will be saved
along with the last digit that was entered (entering 123456789 yields the
serial number 1234569).
Note: If 52 seconds pass and no entry has been made, the system returns to
prompt (1A).
This function deletes only the serial number.
Entering a "9" at prompt (1A). Confirmation of the delete request will
cause deletion of the serial number pertaining to the zone being
programmed.
–32–
