ADEMCO LYNXR Installation Manual page 15

Audible Alarm
Auxiliary Alarm
Supervised
5806/5807/5808
01000-020-V0
Interior w/Delay
Arm–Stay
Arm–Away
No Alarm Response
Silent Burglary
Zone Response Type Definitions
Type 07
Zone type 07 is usually assigned to a zone containing an Emergency button.
24-hour Zone Characteristics:
• Sends a report to the central station, and provides alarm sounds externally and at
the keypad.
Zone type 08 is usually assigned to a zone containing a button for use in
Type 08
personal emergencies or to a zone containing monitoring devices (i.e.: water
24-hour
or temperature sensors, etc.).
Zone Characteristics:
• Sends a report to the central station and provides an alarm sound at the keypad.
(No bell output is provided and there is no keypad timeout.)

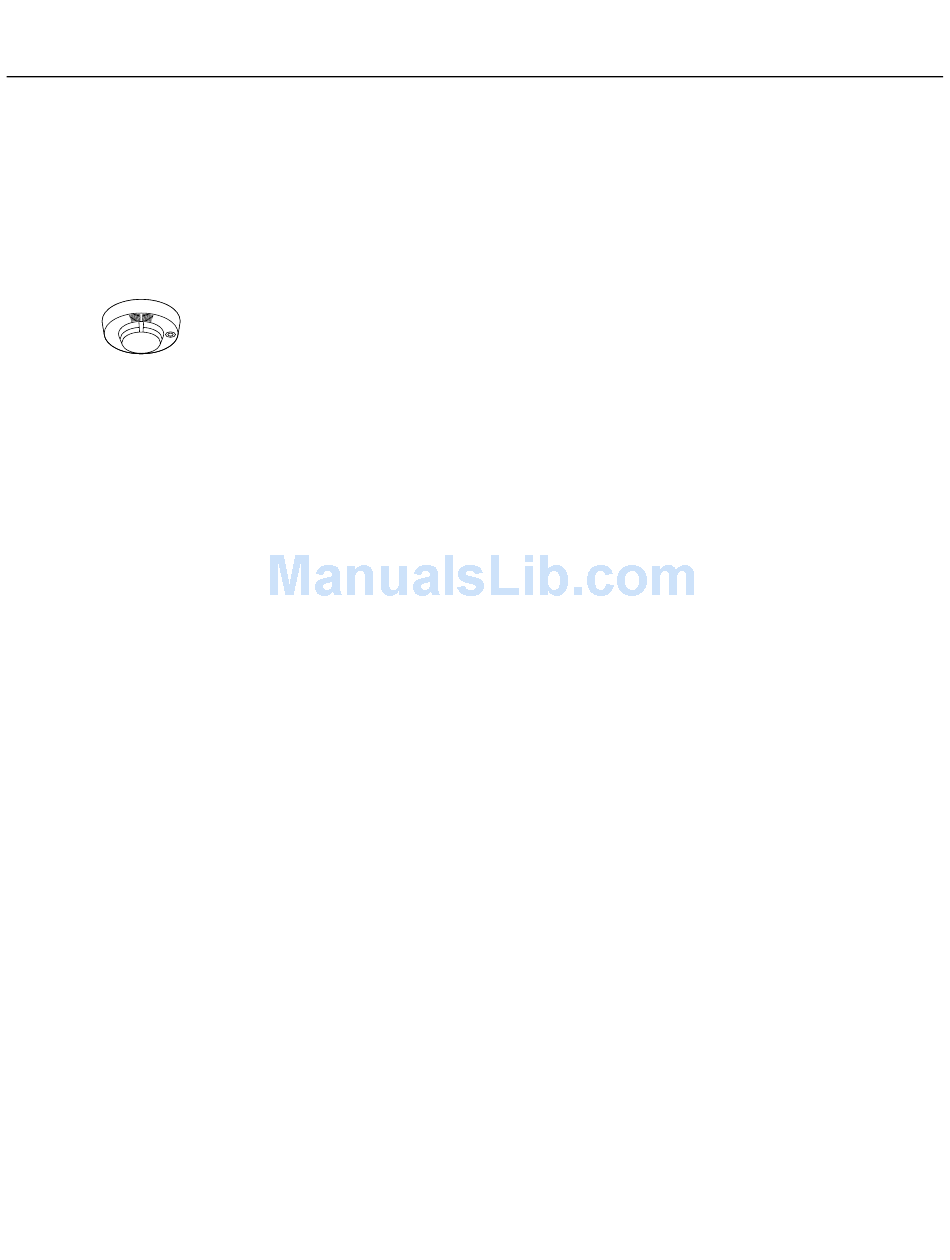

Type 09 Zone type 09 can be assigned to any wireless zone used as a fire zone. This
zone type is always active and cannot be bypassed.
Fire Zone Characteristics
• Bell output will pulse when this zone type is alarmed.
Type 10 Zone type 10 is bypassed when the panel is armed in the STAY or INSTANT
mode.
Zone Characteristics
• Entry delay #1 (with programmed entry time) when armed in the AWAY mode.
• Entry delay begins whenever sensors in this zone are violated, regardless of
whether an entry/exit delay zone was tripped first.
• No entry delay when armed in the MAXIMUM mode.
•
Exit delay regardless of the arming mode selected.
Type 20 Zone type 20 is a special-purpose zone type used with 5800 Series wireless
pushbutton units.
Zone Characteristics:
• Exit delay regardless of the arming mode selected.
• System is armed in the STAY mode when the zone is activated.
•
Zone number is sent to the central station as a user number when arming or
disarming.
Type 21 Zone type 21 is a special-purpose zone type used with 5800 Series wireless
pushbutton units.
Zone Characteristics
• System is armed in the AWAY mode when the zone is activated.
•
Zone number is sent to the central station as a user number when arming or
disarming.
Type 22 Zone type 22 is a special-purpose zone type used with 5800 series wireless
pushbutton.
Disarm
Zone Characteristics
• Disarms the system when the zone is activated.
Type 23 Zone type 23 can be used on a zone when a Powerline Carrier Device (e.g.,
X-10) action is desired, but with no accompanying alarm (e.g., front door
light).
Type 24 Zone type 23 is usually assigned sensors or contacts on exterior doors and
windows where bells and/or sirens are NOT desired.
Zone Characteristics
• Instant alarm, with NO audible indication when is armed in the AWAY, STAY,
INSTANT, or MAXIMUM mode.
• Report sent to the central station.
NOTE: Keypad beeps if the zone is faulted when system is disarmed and Chime mode is on.
