LYNXR/LYNXR24 AC Power and Rechargeable Backup Battery
Replacing the Rechargeable Battery
1. When battery replacement is required, unplug transformer from outlet, and open LYNXR
cover.
2. Remove battery retainer and disconnect battery pack connector from receptacle terminal
block PC board.
3. Remove battery pack from back plate and insert replacement battery pack into back plate.
Note: For LYNXR install battery packLYNXRCHKIT-SC, for LYNXR24 use LYNXRCHKIT-HC.
4. Install battery retainer.
5. Connect battery connector to receptacle on terminal block PC board.
6. After wiring connection has been made, snap the front assembly to the back plate.
7. Plug the transformer into a 24-hour, 110VAC unswitched outlet.
8. Rechargeable batteries may take up to 48-hours to fully charge. The "LOW BAT" message

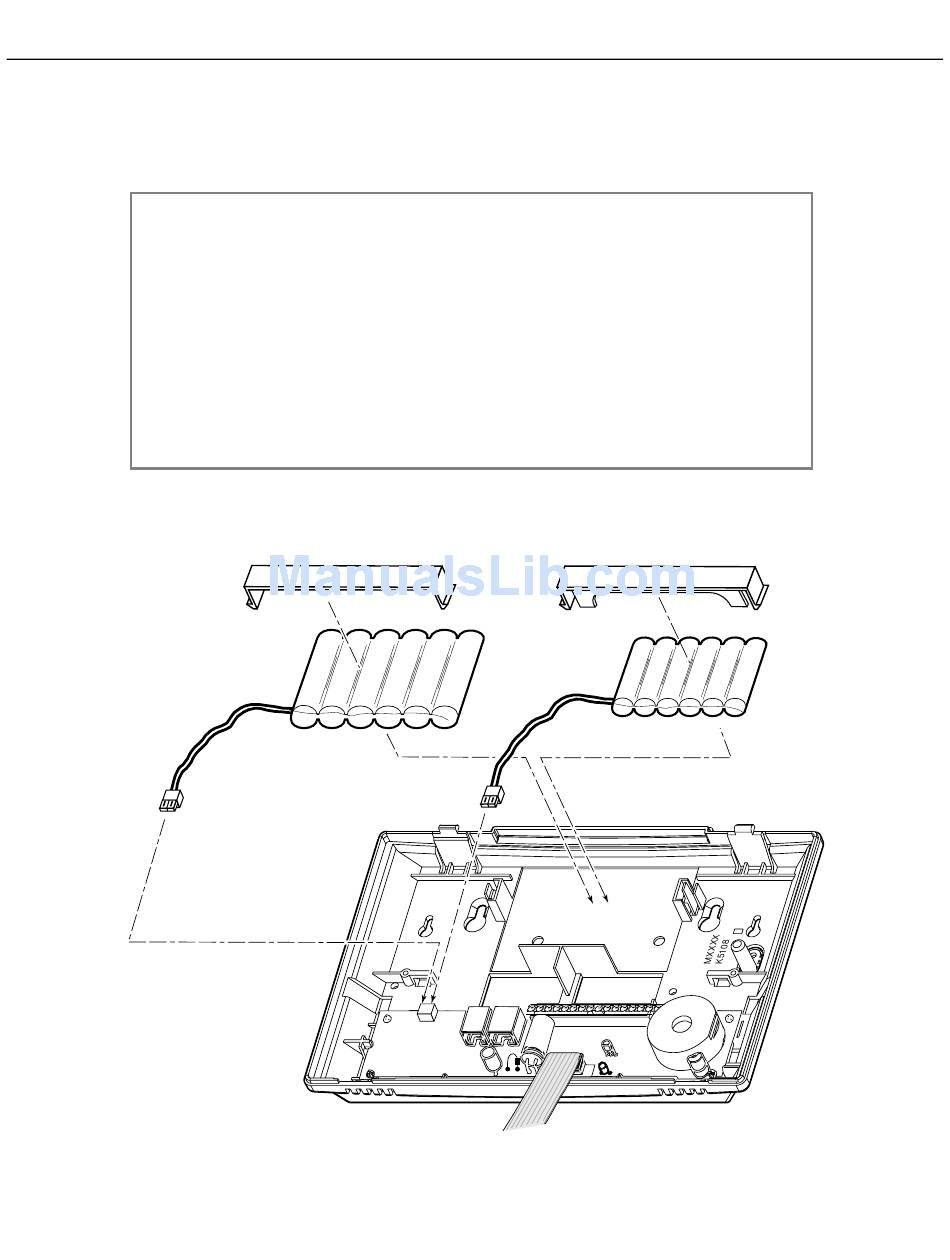

LYNXRCHKIT-HC
AC Power and Backup Battery
OR
–9–
LYNXRCHKIT-SC
