Wiring Connections
1. Phone Line Connections - For local or full line
seizure go to appropriate steps below.
Local Seizure
a. Connect the incoming phone line to either the
8-position jack or terminals 2 (TIP) and 3 (RING).
b. Connect the handset phone lines to either the
RJ11 jack or terminals 4 (TIP) and 5 (RING).
Full Line Seizure: T he control must be placed in
series with the incoming phone line. With the Direct
Connect Cord plugged into the RJ31X jack, the
control can seize the phone line when an alarm
occurs. If the plug needs to be removed, the RJ31X
allows normal phone line usage by the premises
phones.
a. Cut the incoming RING and TIP phone lines
(typically red and green, respectively) and connect
to RJ31X terminals 4 (red) and 5 (green).
b. Connect the premises end of the cut RING and
TIP wires to RJ31X terminals 1 (grey) and 8
(brown) respectively.
c. Wire the flying leads of a Direct Connect Cord to
the control's phone terminals as shown in the
diagram or plug into the 8-position jack.
d. Plug the Direct Connect Cord into the RJ31X jack.
2. Hardwired Zone Connections
Zone 1 is an EOLR supervised zone that supports
both open circuit and closed circuit devices and
has a response time of 350msec. Maximum zone
resistance: 300 ohms, plus EOLR
Note: The hardwire zone cannot be used as a fire
zone.
a. Connect sensors/contacts to the hardwired zone
terminals 6 (+) and 7 (–). Refer to the Summary
of Connections diagram.
b. Connect closed circuit devices in series in the
high (+) side of the loop. The EOL resistor must
be connected in series with the devices, following
the last device.
c. Connect open circuit devices in parallel across the
loop. The 2000-ohm EOLR must be connected
across the loop at the last device.
3. External Sounder Connections
The control panel supports either a 6-14VDC
piezo sounder (30mA max.) or 6-14VDC bell
(120mA max.; e.g. ADEMCO WAVE2EX).
Connect a piezo sounder to terminals 10 (+) and
11 (–); OR a bell to terminals 11 (–) and 12 (+).
4. Powerline Carrier Device Connections
The control panel supports up to 8 Powerline
Carrier Devices. If using these devices, they must
be connected to the ADEMCO 1332X10
transformer, as shown in the SUMMARY OF
CONNECTIONS diagram.
a. Connect the com/data/sync/ lines from the
ADEMCO 1332X10 transformer to terminals 9, 13,
and 14, respectively. If not using the supplied
Ademco connection cable, you may need to
reverse the black and yellow wire connections.
Refer to the *80 Device Programming Menu Mode
section for details on programming Powerline
Carrier Devices.

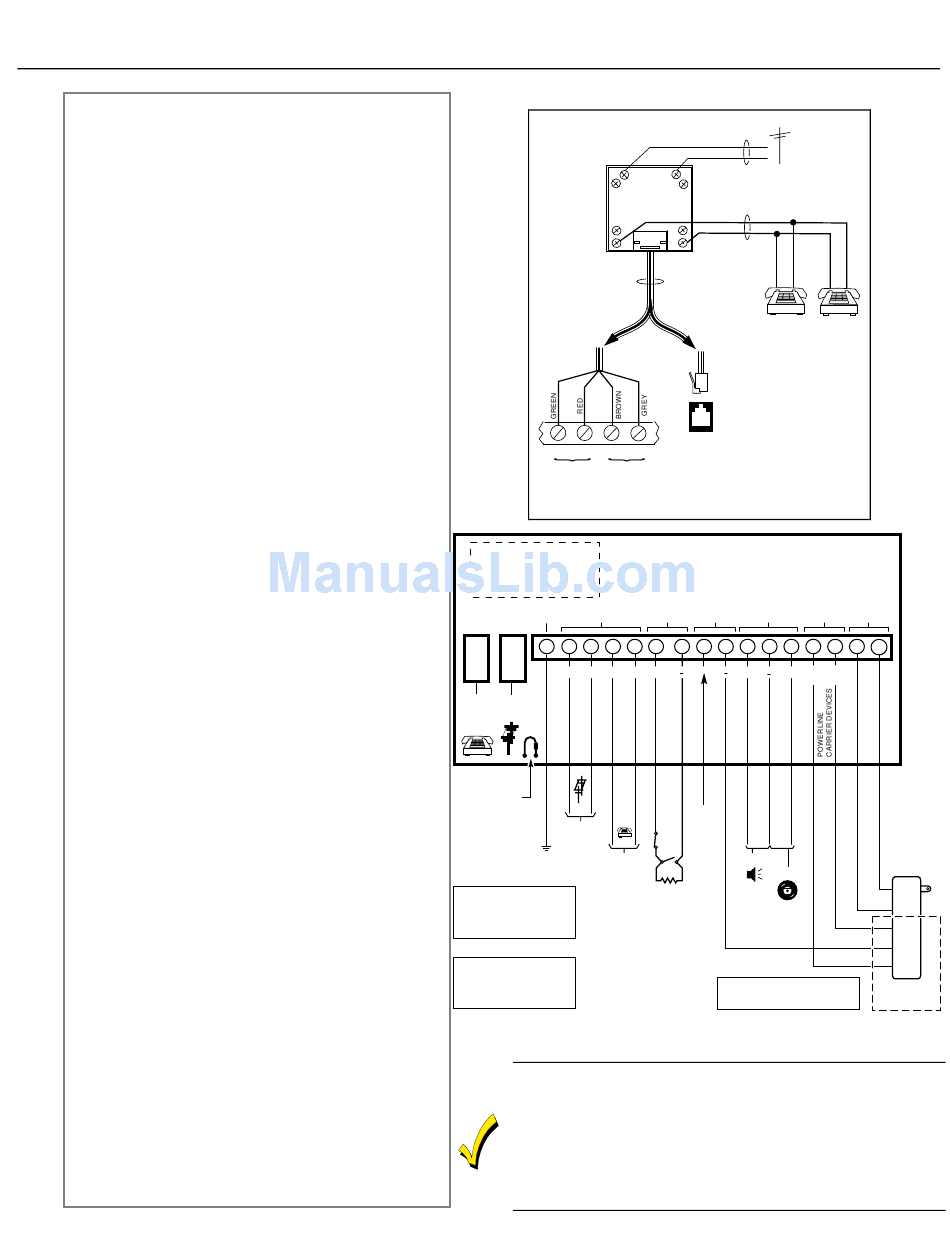

Wiring Connections
RED
4
3
RJ31X
2
GREY
1
TIP
RING
TIP
RING
INCOMING
TO
PREMISES
PHONE LINE
PHONES
Full Line Seizure Connections
WARNING:
TO PREVENT RISK OF SHOCK
DISCONNECT TELEPHONE LINE
ALL OUTPUT CIRCUITS ARE POWER LIMITED.
AT TELECOM JACK BEFORE
SERVICING THIS UNIT.
EARTH
GROUND
PHONE
8
1
2
3
4
5
POS
RJ11
JACK
TIP
RING
TIP
RING
TO
INCOMING
HANDSET
PHONE
PHONE
LINE
LINE
LOCAL SOUNDER
DISABLE JUMPER
CUT = DISABLE
INCOMING
TELEPHONE
LINE
EARTH
PREMISES
GROUND
TELEPHONE
LYNXR IS EQUIPPED
WITH AN INTEGRAL
RECHARGABLE BATTERY
PACK P/N LYNXRCHKIT-SC.
REPLACE EVERY FOUR YEARS.
WEEKLY TESTING IS
REQUIRED TO ENSURE
PROPER OPERATION
OF THIS SYSTEM
LYNXR24 IS EQUIPPED
WITH AN INTEGRAL
RECHARGABLE BATTERY
PACK P/N LYNXRCHKIT-HC.
REPLACE EVERY FOUR YEARS.
LYNXR/LYNXR24 Terminal Block
HARDWIRED ZONE: If the EOLR is not at the end of the loop, the zone
will not be properly supervised, and the system may not respond to an
open circuit on the zone.
LOCAL SOUNDER DISABLE: The Master Keypad's built-in piezo
sounder can be disabled by cutting the white jumper on the terminal
board. If disabled, no sounding will occur upon AC loss, since the
external sounder does not operate when AC power is lost.
UL NOTE: Do not cut sounder jumper for UL installations.
–7–
INCOMING
PHONE LINE
RING
TIP
GREEN
5
6
TO
PREMISES PHONES
RING
TIP
7
8
BROWN
DIRECT
CONNECT
CORD
CK
OR
OR
8-POSITION
JA
AAV
TRIGGER
ZONE
SOUNDERS
PLCD
12
6
7
8
9
10
11
13
(+)
( )
( )
(+)
( )
(+)
DATA
OUT
HARD
WIRED
ZONE
TRIGGER
SIGNAL
(NEG)
PIEZO
BELL
6-14VDC
2k OHMS
EOLR
30mA max.
6-14VDC
120mA max.
(e.g. WAVE2EX)
NOTE
USE ONLY 1332/1332X10 OR 1332CN
TRANSFORMERS PROVIDED
01000-008-V0
AC
14
15
16
SYNC
IN
1332/
1332X10/
1332CN
PLUG-IN
TRANSFORMER
9VAC, 15VA
AC
AC
SYNC
COM
DATA
1332X10
ONLY
CONNECTIONS
01000-009-V0
