B-300-HDMATRIX-RCVR Installation and Users Manual
FEATURES
• Support for HDMI 1.4a 3D formats
• Extends the transmission up to 200 ft. from the HDMI source at HD 1080i or 720p 24-Bit
• Extends the transmission up to 130 ft. from the HDMI source at Full HD 1080p 24-Bit
• Extends the transmission up to 65 ft. from the HDMI source at Full HD 1080p 36-Bit
• HDCP 2.0 compliant
• DTS-HD Master and Dolby TrueHD audio support
• Bi-directional IR pass-through
• Supports full-frequency IR signal from 20kHz to 60kHz
See Important Connection Notes! for cautions regarding connection and operation.

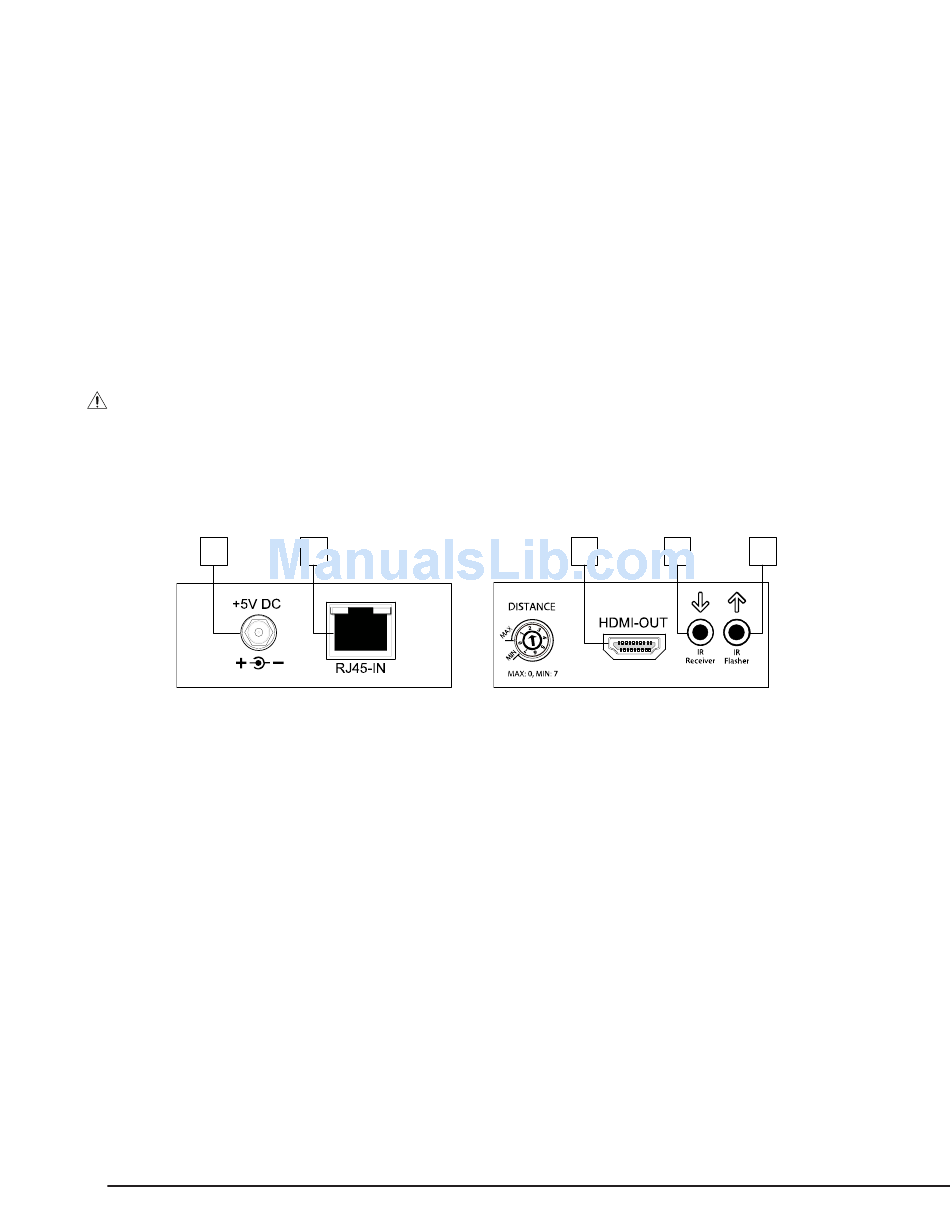

CONNECTIONS
1
1. Latch-locking power jack: Connect to included 5V 4A DC power supply.
2. RJ45: Plug in a Cat5e/6 cable from B-300-HDMATRIX Output.
3. HDMI OUT: Connect to an HDMI display with a HDMI male-to-male cable.
4. IR Receiver: Infrared 3.5mm jack for IR receiver.
5. IR Flasher: Infrared 3.5mm jack for IR flasher
pg.3
2
3
4
5
