Machine description – quick overview
4.1
Pico 180
4.1.1
Front view
Item
Symbol Description
1
2
3
4
5
6
099-002003-EW501
19.09.2011
Machine description – quick overview
0
Carrying strap
Machine control
See Machine control – operating elements chapter
Connection socket, "-" welding current
•
TIG: Welding current lead connection for TIG welding torch
•
MMA: Electrode holder or workpiece lead connection
Connection socket, "+" welding current
•
TIG: Connection for workpiece lead
•
MMA: Electrode holder or workpiece lead connection
Cooling air outlet
Machine feet

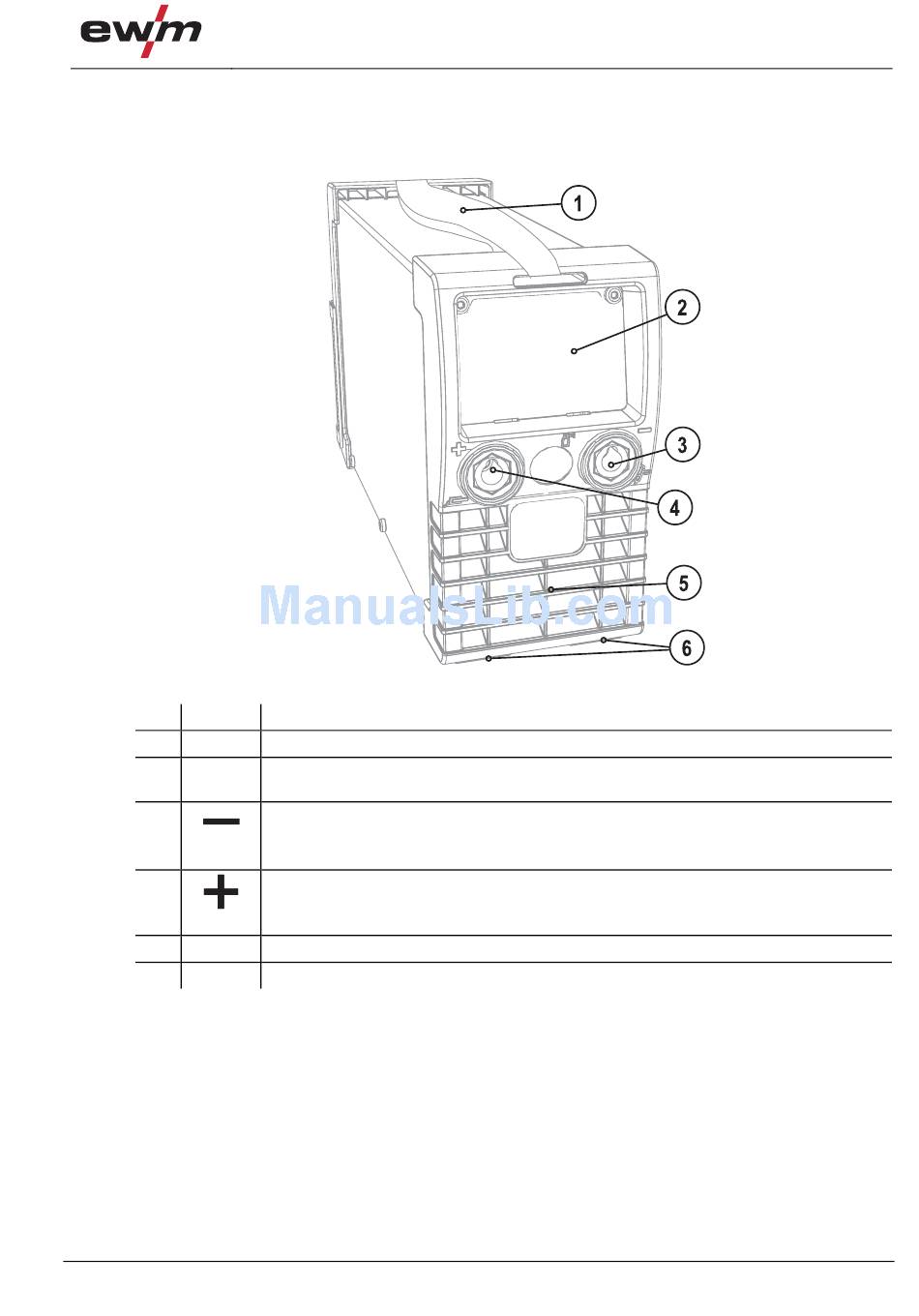

Figure 4-1
Pico 180
