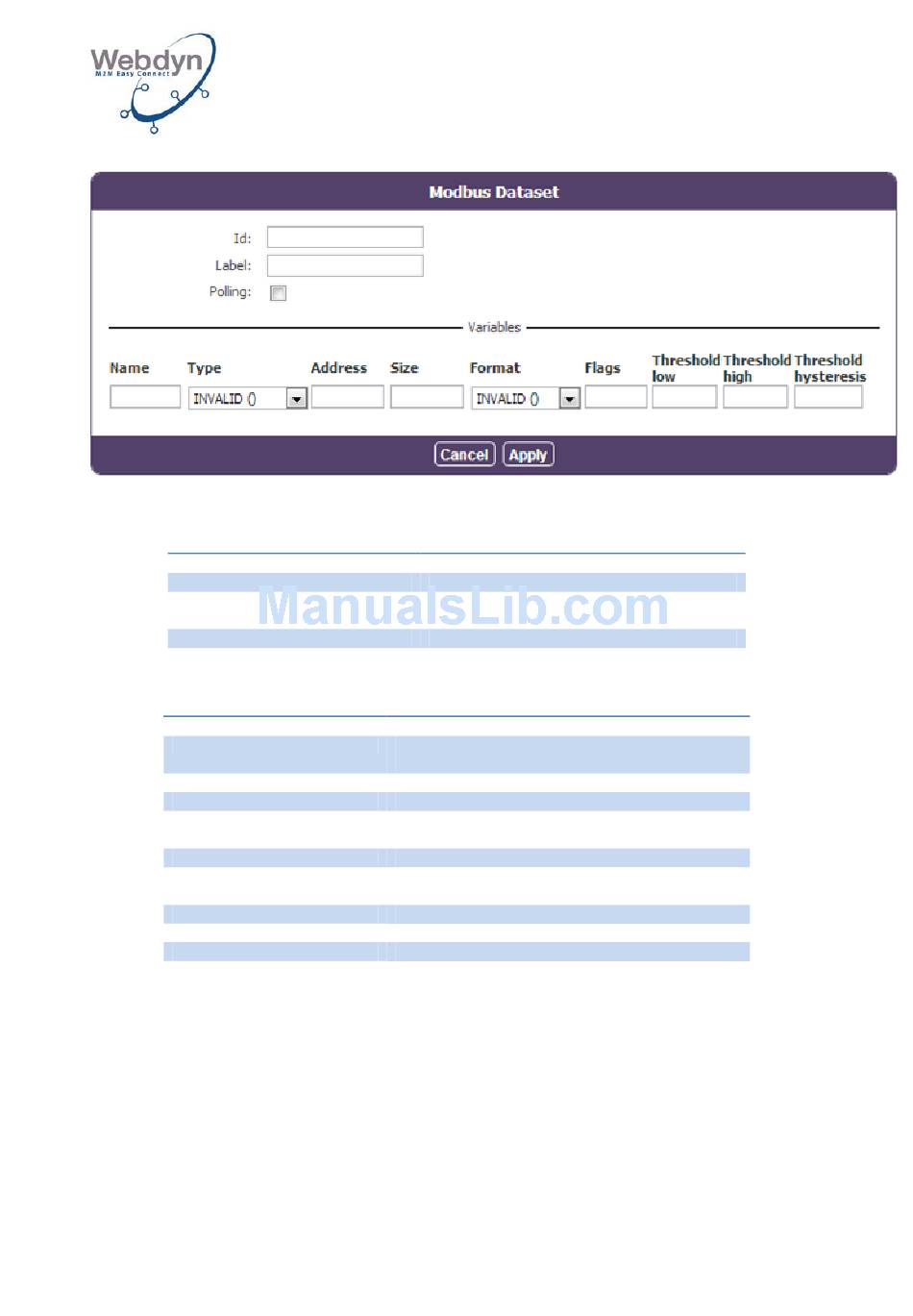

The configuration of a dataset consists of configuring the following parameters:
Name
Id
Label
Polling
Each variable is defined by the following parameters:
Name
Name
Type
Address
Size
Format
Flags
Threshold low
Threshold high
Threshold hysteresis
For the configuration details, see the operating manual.
WebdynRF – Installation Manual - Version 1.0
Description
Unique ID for the Modbus dataset
Name of the dataset (for information
purposes only)
Continuous polling (true or false)
Description
Name of the variable (for information purposes
only)
Type of variable (S0, S1, S3, S4)
16-bit extended register address
Size in bits for discrete input and coil, in bytes
for the registers
Raw, Boolean, integer, float or ASCII
cmd_only, little_endian, no_opt, is_status or
is_alarm
Low threshold level
High threshold level
Hysteresis applied to both thresholds
