Importing The Wavenis Configuration Into The Gateway - Webdyn WebdynRF Installation Manual

8.6.2.5 Importing the Wavenis configuration into the gateway

Once your Wavenis network has been built and exported in the form of a Wavenet
Monitor XML file, you have to import it into the gateway by using Toolbox.
To do that, carry out the following steps:

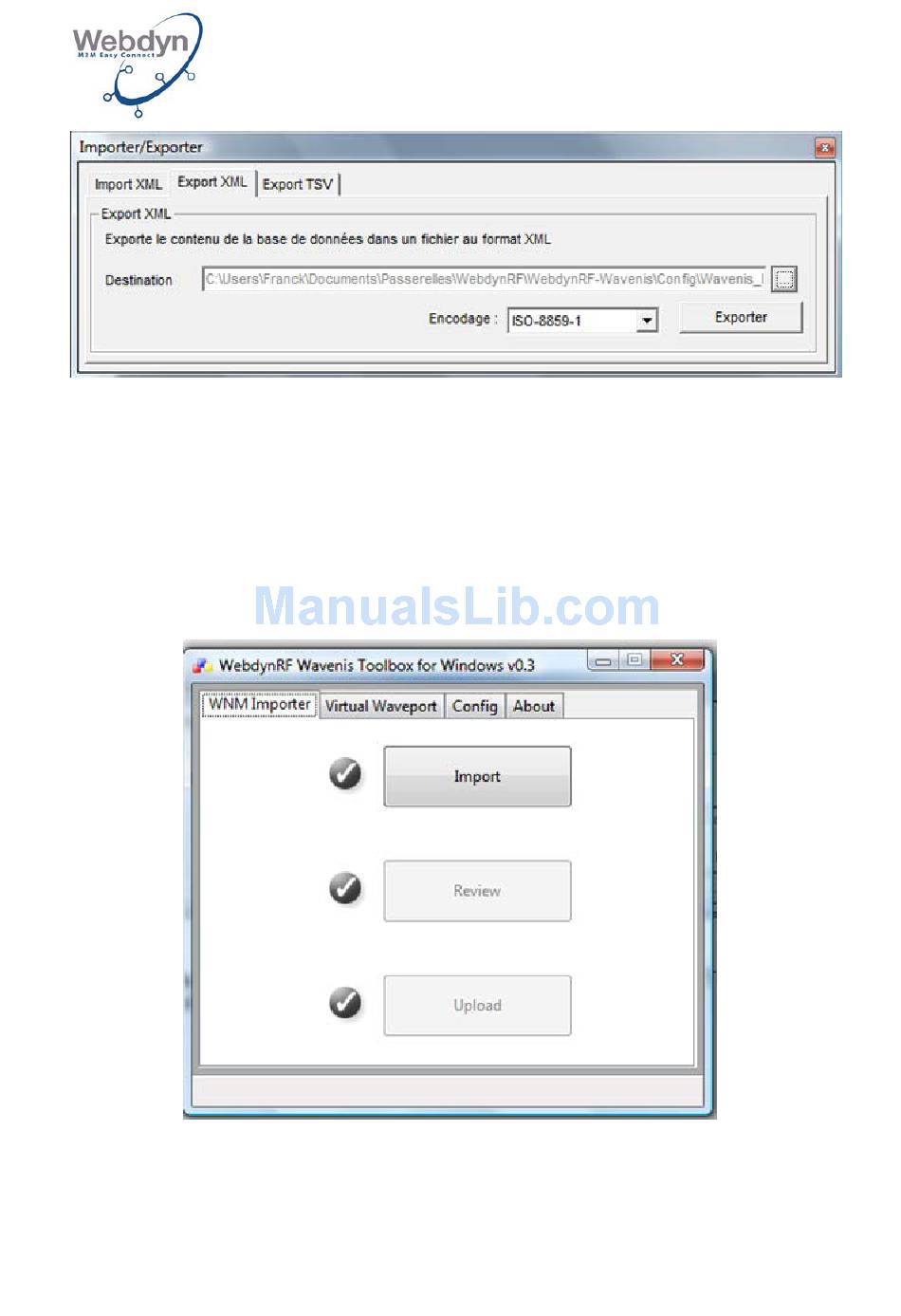

• Import the XML file into the gateway using Toolbox: click on Import on the
WNM Importer tab:
• A window will be displayed, indicating the number of modules imported:
WebdynRF – Installation Manual - Version 1.0
WEBDYN
WebdynRF
Installation Manual
46
