Summary of Contents for Webdyn WebdynRF
-

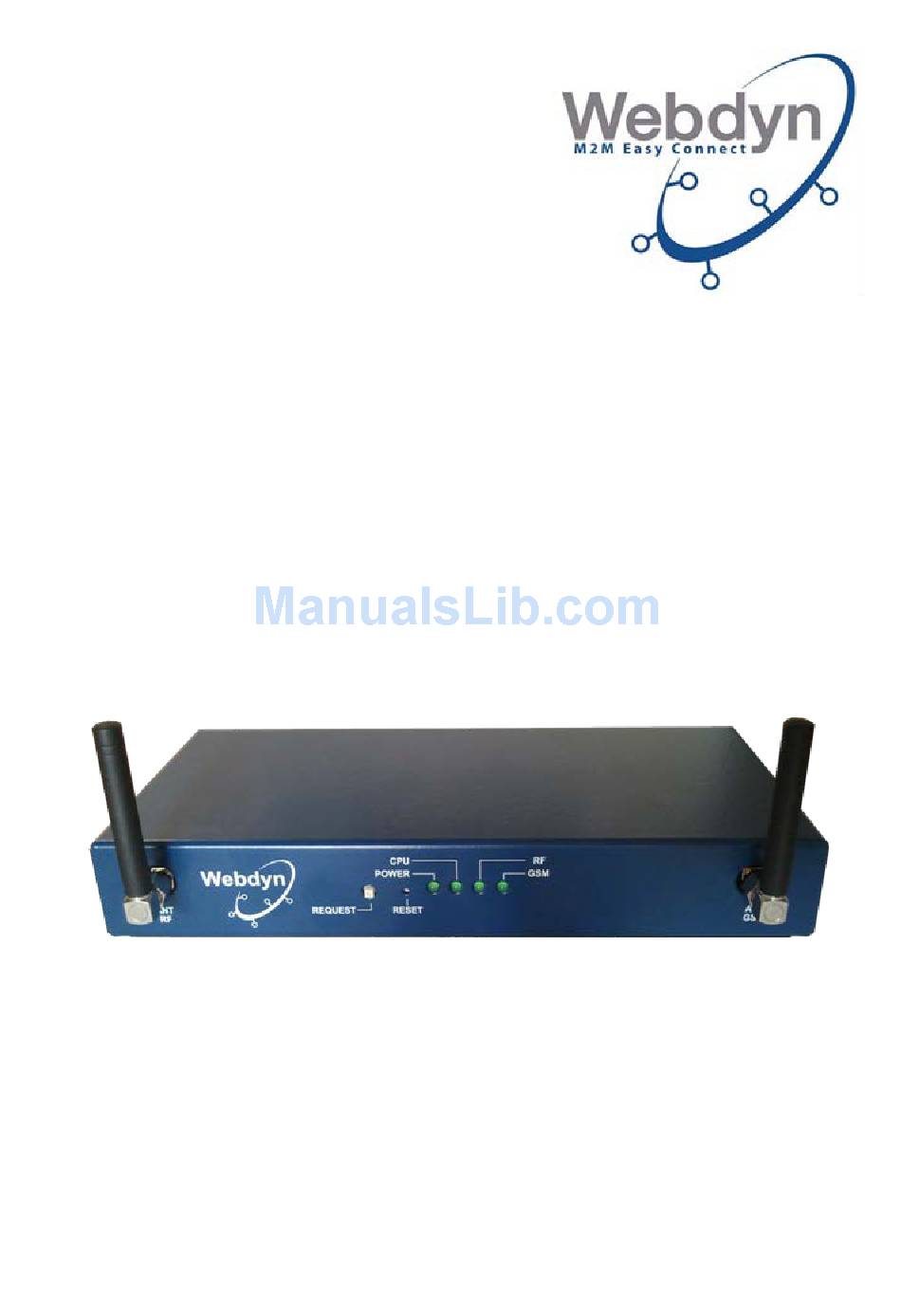

Page 1: Installation Manual
WebdynRF Concentrator dedicated to smart metering and energy management Installation Manual MI-WebdynRF– V1.0... -
Page 2: Table Of Contents
Mounting ......................9 Choosing the environment ................. 9 Mounting the WebdynRF on its feet ............10 Mounting the WebdynRF on a DIN Rail ........... 10 Wall mounting the WebdynRF ..............11 Mounting the remote GPRS/GSM antenna ..........11 Electrical connection ..................12 Overview of the external interfaces and of the LEDs ....... - Page 3 8.10 Request for connection to the remote server ........54 Check on the gateway’s smooth running ............54 Local FTP server ..................55 Shutting down the WebdynRF gateway ............. 55 Support ....................... 55 WebdynRF – Installation Manual - Version 1.0...
-
Page 4: Remarks Concerning This Manual
This guide describes the assembly, installation and commissioning of the device. Please ensure these instructions are always available. For management instructions for the data exchanged by the gateway with the remote server, refer to the operating manual for the WebdynRF gateway (cf. ME- WebdynRF_FR.pdf). Scope This technical description is valid for Wavenis WebdynRF gateways from hardware version 1 and software version 2.4.0. -
Page 5: Target Group
This guide is aimed at installers. General operating principle The WebdynRF platform is the new range of Webdyn concentrators dedicated to wireless networks. Gathering data from meters or sensors and checking I/Os are basic functionalities for the WebdynRF gateway. The services targeted by the WebdynRF gateway are remote meter reading, and buildings energy management. -
Page 6: Safety Instructions
WebdynRF Installation Manual Technical Specifications: Wavenis WebdynRF Safety instructions You absolutely must follow all the safety instructions featured in this guide. Failure to follow these instructions may damage the devices and endanger people. WebdynRF – Installation Manual - Version 1.0... -
Page 7: Unpacking
Installation Manual The WebdynRF gateway may be damaged by ESDs (Electrostatic Discharges). • All of the installation work for the WebdynRF should only be carried out by an authorized professional electrician. • Avoid any contact with the components’ connections or the connectors’... -
Page 8: Identification Of The Gateway
(Ref.: AC0201-01 or AC0201-02) DIN Rail and wall-mounting fastening kit (Ref.: AC0301-01) Identification of the gateway Information label: You can identify the WebdynRF gateway from its information label, which is located beneath the box. WebdynRF – Installation Manual - Version 1.0... -
Page 9: Mounting
• The ambient humidity must be between 10 and 90% RH. • Protect the WebdynRF from dust, humidity, harmful substances, and condensation. • The distance between the WebdynRF and the Modbus equipment must not exceed the maximum permitted distance for the corresponding type of interface (RS485 or RS232). -
Page 10: Mounting The Webdynrf On Its Feet
WEBDYN WebdynRF Installation Manual The WebdynRF gateway must send data from your installation to the remote server automatically and at regular intervals: for this, you will need to fulfill the following conditions: • To send installation data via Ethernet, the network must include a router enabling access to the Internet. -
Page 11: Wall Mounting The Webdynrf
WEBDYN WebdynRF Installation Manual 2. Hook the WebdynRF onto the rail using the two supports. Wall mounting the WebdynRF The WebdynRF may be fastened onto a wall. This rail mounting requires additional mounting accessory Ref: KFIX01. 1. Mount the fastening kit onto the gateway: 2. -
Page 12: Electrical Connection
2. Drill the holes (diameter: 6 mm) in the locations marked and insert the pins. 3. Use screws to fasten the antenna bracket to the wall. 4. Screw the antenna onto the antenna cable. 5. Screw the cable onto the WebdynRF antenna socket. Cable: RG-58. Frequencies: 824-960 MHz; 1710-1990 MHz. -
Page 13: Overview Of The External Interfaces And Of The Leds
2 – Signal power of -96 dBm to -81 dBm 3 – Signal power of -81 dBm to -66 dBm 4 – Signal power of -66 dBm to -51 dBm 5 – Signal power > -51 dBm WebdynRF – Installation Manual - Version 1.0... -
Page 14: Connecting The Gateway To The Internet For Communication With The Remote Server
• 3G (product versions WG0606-A02 and WG0606-A04). 5.2.1 Connection to the Internet via an ADSL line Connect the WebdynRF gateway to the ADSL network by using the Ethernet socket marked on the gateway’s rear panel. WebdynRF – Installation Manual - Version 1.0... -
Page 15: Internet Connection Via A Gprs Or 3G Link
• Use a good-quality cable: as a minimum, a category 5 (STP Cat 5) or higher shielded twisted pair cable. • The maximum permitted length of the Ethernet cable is 100 m per segment. Upon delivery, the IP configuration parameters for the WebdynRF gateway are as follows: IP address: 192.168.1.12 Sub-network mask: 255. - Page 16 WEBDYN WebdynRF Installation Manual To ensure smooth running of the WebdynRF in GPRS or 3G mode, you must insert a SIM card with the following characteristics: - Possibility of receiving and sending SMSs. - GPRS or 3G communication included. Insert the SIM card into the product.
-
Page 17: Connecting The Gateway's On-Off Output
Connecting the gateway to Modbus equipment via the RS485 link This chapter describes connecting the WebdynRF to the RS485 bus for communication with Modbus equipment. The RS485 interface used is marked with the label RS485/RS 422. - Page 18 4. Strip the wires to a length of approximately 6 mm. 5. Connect the conductors to the connector marked RS485/RS422, following the assignments in your RS485 communication bus. 4-wire RS485 assembly: TX+ TX- RX+ RX- 2-wire RS485 assembly: WebdynRF – Installation Manual - Version 1.0...
-
Page 19: Connecting The Gateway To Equipment Via The Rs232 Link
Connecting to a local PC via Ethernet for configuration purposes During the initial commissioning, the WebdynRF gateway must be configured via the Ethernet network using a PC (either a portable or fixed PC). The PC may be connected to the gateway directly, or integrated into the gateway’s local network, particularly if the ADSL link is used for communication with the remote server. -
Page 20: Connecting The Pc To The Gateway On A Local Network
WEBDYN WebdynRF Installation Manual Connect the WebdynRF gateway directly to the PC by using the Ethernet interface on the box and a straight or crossover Ethernet cable. To identify the PC’s Ethernet socket, refer to the PC’s documentation. Recommendations relating to the Ethernet cabling:... -
Page 21: Connecting The Power Supply
WEBDYN WebdynRF Installation Manual Upon delivery, the settings of the WebdynRF gateway are as follows: IP address: 192.168.1.12 Sub-network mask: 255. 255. 255.0 DHCP: deactivated Network administrator If your local network is managed by a network administrator, contact him before integrating the WebdynRF gateway into your network. -
Page 22: Commissioning The Gateway
The Web interface is compatible with the latest versions of Firefox, Chrome and Internet Explorer. Older versions may work but are no longer supported (for example IE 7). 2. Visit the WebdynRF gateway homepage using the browser’s address line http://192.168.1.12. 3. A login window will be displayed: The default password for the administrator is high. -
Page 23: Configuration Of The Gateway's Connectivity
Wait until the gateway is fully initialized before accessing Web pages. Configuration of the gateway’s connectivity The Connectivity page enables the gateway to be configured so that it may communicate with the remote server. WebdynRF – Installation Manual - Version 1.0... -
Page 24: Configuration Of The Modem Connection
Value of the wait delay in OnDemand between the end of data delay exchanges and the end of the connection. Caller ID List of the telephone numbers permitted for incoming SMSs and calls. WebdynRF – Installation Manual - Version 1.0... -
Page 25: Configuration Of The Ethernet Connection
Configuration of the Ethernet connection 8.2.2 Parameters Description Enter the IP address at which the WebdynRF gateway is accessible. Enter the sub-network mask for your network. This mask limits the Netmask Ethernet network to the IP addresses defined and separates the network ranges from each other. -
Page 26: Time Zone Configuration
Put: Notification via Web Services when the gateway puts data on the FTP server Get: Notification via Web Services when the gateway downloads data notification from the FTP server Both: Put & Get Time zone configuration 8.2.4 Parameters Description WebdynRF – Installation Manual - Version 1.0... -
Page 27: Data Transfer Configuration
When the CSV format is selected, only the Wavenis data will be in this format. All the other data will be sent in XML format. The lodging of data must be associated with a Schedule by filling in its configured unique ID (see section 8.5). WebdynRF – Installation Manual - Version 1.0... -
Page 28: Request Button
WEBDYN WebdynRF Installation Manual Consult the operating manual for the WebdynRF gateway-Wavenis in order to ascertain the format and content of the configuration, supervision, alarm and Wavenis data files. Request button 8.2.6 By default, pressing the Request button on the product’s front panel will trigger a connection to the remote server and uploading of the data recorded as well as the lodging of a status file. -
Page 29: Ports Configuration
All you have to do is activate the Enabled box and specify the TCP port number to be used. Via Webdyn’s Toolbox, this configuration enables the Coronis Wavenet Monitor software to be used to configure the Wavenis radio network (see section 8.6.2). -
Page 30: Alarms Configuration
The gateway also generates fault alarms, the codes of which are shown below: Code Description D_MODEM Modem fault D_ETHERNET Ethernet interface fault D_WAVENIS Wavenis fault D_INTERNAL_BAT Internal battery fault Each fault is transferred immediately to the remote server by the gateway. WebdynRF – Installation Manual - Version 1.0... -
Page 31: Wavenis Alarms
They may nevertheless be activated and/or deactivated during configuration of the module itself. On-off input alarms 8.4.3 Multiple alarms may be configured for digital inputs. An alarm for a digital input may be configured as follows: WebdynRF – Installation Manual - Version 1.0... -
Page 32: On-Off Output Alarms
The configuration of the scheduler consists of a list of schedules. Each of these schedules has a unique ID that is used to link a task to a precise schedule. They may be used independently to trigger data gathering and to download data. WebdynRF – Installation Manual - Version 1.0... - Page 33 Configuration of the various types of schedules: Daily schedule: Every day, the first occurrence T0 is provided by the time filled in under Time. The format of the time variable is as follows: HH:MM:SS. For example 09:30:00 WebdynRF – Installation Manual - Version 1.0...
- Page 34 For example, for a first occurrence on 11 February 2012 at 13H00: Time = 2012-02-11T13:00:00. The next occurrences will occur at time T année = year ∆t is the value in seconds filled in under interval. WebdynRF – Installation Manual - Version 1.0...
-
Page 35: Configuration Of The Wavenis Radio Network
• Waveflow (1, 2 and 4 inputs) • Dallas Wavetherm (1 and 2 inputs), PT100 (1 input) and PT1000 (1 input) • Wavesense 4-20mA (1 input) and 0-5V (1 input) • Wavelog (2 and 4 inputs) WebdynRF – Installation Manual - Version 1.0... -
Page 36: Configuration Of The Radio Modules Via The Web Interface
The stages below explain how you can build your Wavenis network by using the gateway as a Waveport with the Wavenet Monitor configuration tool and importing the configuration file from this Coronis tool into the gateway. WebdynRF – Installation Manual - Version 1.0... -
Page 37: Installation Of Com0Com
This software makes it possible to create a pair of virtual ports which are connected to each other via a virtual cable. • Download the zip file from the following URL: http://sourceforge.net/projects/com0com/ • Launch setup.exe. and follow the installation stages: • Click on Next. WebdynRF – Installation Manual - Version 1.0... - Page 38 WEBDYN WebdynRF Installation Manual • Click on Agree. WebdynRF – Installation Manual - Version 1.0...
- Page 39 WEBDYN WebdynRF Installation Manual • Click on Next. • Fill in an installation directory and click on Install: WebdynRF – Installation Manual - Version 1.0...
-
Page 40: Installation Of Visual C++ Libraries
To enable the Toolbox to function, you have to install the Microsoft Visual C++ 2010 Redistributable Package (x86) plug-in. • Download the plug-in from the following URL: http://www.microsoft.com/download/en/details.aspx?displaylang=en&id=5555 • Launch vcredist_x86.exe. • Click on Install: • Once the installation is completed, click on Finish: WebdynRF – Installation Manual - Version 1.0... -
Page 41: Toolbox Installation
Installation Manual 8.6.2.3 Toolbox installation You can download Toolbox from the following URL: http://www.webdyn.com/wp-content/uploads/2011/10/WRF_Toolbox.zip You then have to extract the zip file into a directory of your choice. The following files will be created: WebdynRF – Installation Manual - Version 1.0... -
Page 42: Using The Gateway With Wavenet Monitor
• Launch the com0com setup featured in the Windows Start menu: • Rename the CNCA1 port as a serial port name from the available names ranging from COM1 to COM9 (for example COM9): • Click on Apply and on Continue: WebdynRF – Installation Manual - Version 1.0... - Page 43 The gateway’s IP address. You can test the TCP communication with the gateway by clicking on Test. If there is functional communication, the gateway will return its UID and its software version: WebdynRF – Installation Manual - Version 1.0...
- Page 44 The modules reading mode (Datalog or Immediate). • In the Virtual Waveport tab, click on Connect: • This means that the PC is connected to the gateway via the virtual serial port: WebdynRF – Installation Manual - Version 1.0...
- Page 45 Consult the Wavenet Monitor software’s Coronis documentation in order to put together the Wavenis mapping. • Once the Wavenis network is configured in Wavenet Monitor, you must export the following in an XML file: WebdynRF – Installation Manual - Version 1.0...
-
Page 46: Importing The Wavenis Configuration Into The Gateway
To do that, carry out the following steps: • Import the XML file into the gateway using Toolbox: click on Import on the WNM Importer tab: • A window will be displayed, indicating the number of modules imported: WebdynRF – Installation Manual - Version 1.0... -
Page 47: Metering Configuration
WEBDYN WebdynRF Installation Manual • Click on Review to view the configuration file in WebdynRF format: • Click on Upload to transfer the configuration file onto WebdynRF: You can check whether modules are present on the onboard Web page’s Wavenis tab. -
Page 48: M-Bus
10ms. The current value will be saved for each occurrence of the schedule specified. The unit and label parameters are added to the data saved with the index value. M-Bus 8.7.2 WebdynRF – Installation Manual - Version 1.0... -
Page 49: 169 Mhz Wireless Mbus
169 MHz Wireless Mbus 8.7.3 169MHz Wireless Mbus product versions The 169MHz Wireless M-Bus radio card version of the WebdynRF gateway may receive data from known Wireless M-Bus modules (filtering activated), or may not (if the filtering is deactivated). The interface enables the filtering of the modules to be activated or deactivated and enables the N mode channel used to be selected. -
Page 50: Modbus Configuration
Modbus/RTU response timeout in ms Turnaround (ms) Modbus/RTU turnaround delay in ms Timeout (ms) Modbus/TCP response timeout in ms As a supplement to these parameters, the port must be configured as “modbus” (see section 8.3.2). WebdynRF – Installation Manual - Version 1.0... - Page 51 Raw, Boolean, integer, float or ASCII cmd_only, little_endian, no_opt, is_status or Flags is_alarm Low threshold level Threshold low Threshold high High threshold level Hysteresis applied to both thresholds Threshold hysteresis For the configuration details, see the operating manual. WebdynRF – Installation Manual - Version 1.0...
- Page 52 IP address (blank for RTU equipment) Schedule Schedule ID To verify the right configuration for a Modbus module, you can press The result of the Modbus module query will be displayed in a window: WebdynRF – Installation Manual - Version 1.0...
-
Page 53: Executable Actions
If equipment items are removed from the bus or added to it, a new scan must be initiated so that the gateway may take the modification into account. Reboot request 8.9.3 This button enables the gateway to be restarted properly. Wavenis RSSI scan request 8.9.4 WebdynRF – Installation Manual - Version 1.0... -
Page 54: Uploading System Files
Lodging of the Wavenis data file containing the immediate data. Once this command file is put on the remote server in the INBOX directory, you must prompt the gateway’s connection to the remote server by briefly pressing the REQUEST button. WebdynRF – Installation Manual - Version 1.0... -
Page 55: Local Ftp Server
11 Shutting down the WebdynRF gateway Disconnect the 12/24V connector’s power supply cable. The WebdynRF gateway is equipped with a back-up battery. Upon losing its power supply, it sends an alert to the server and then continues functioning until the battery is flat. - Page 56 WEBDYN WebdynRF Installation Manual We will need the following details: • The gateway’s serial number. • The gateway’s hardware and software versions. WebdynRF – Installation Manual - Version 1.0...
