2. Hook the WebdynRF onto the rail using the two supports.
4.4
Wall mounting the WebdynRF
The WebdynRF may be fastened onto a wall.
This rail mounting requires additional mounting accessory Ref: KFIX01.

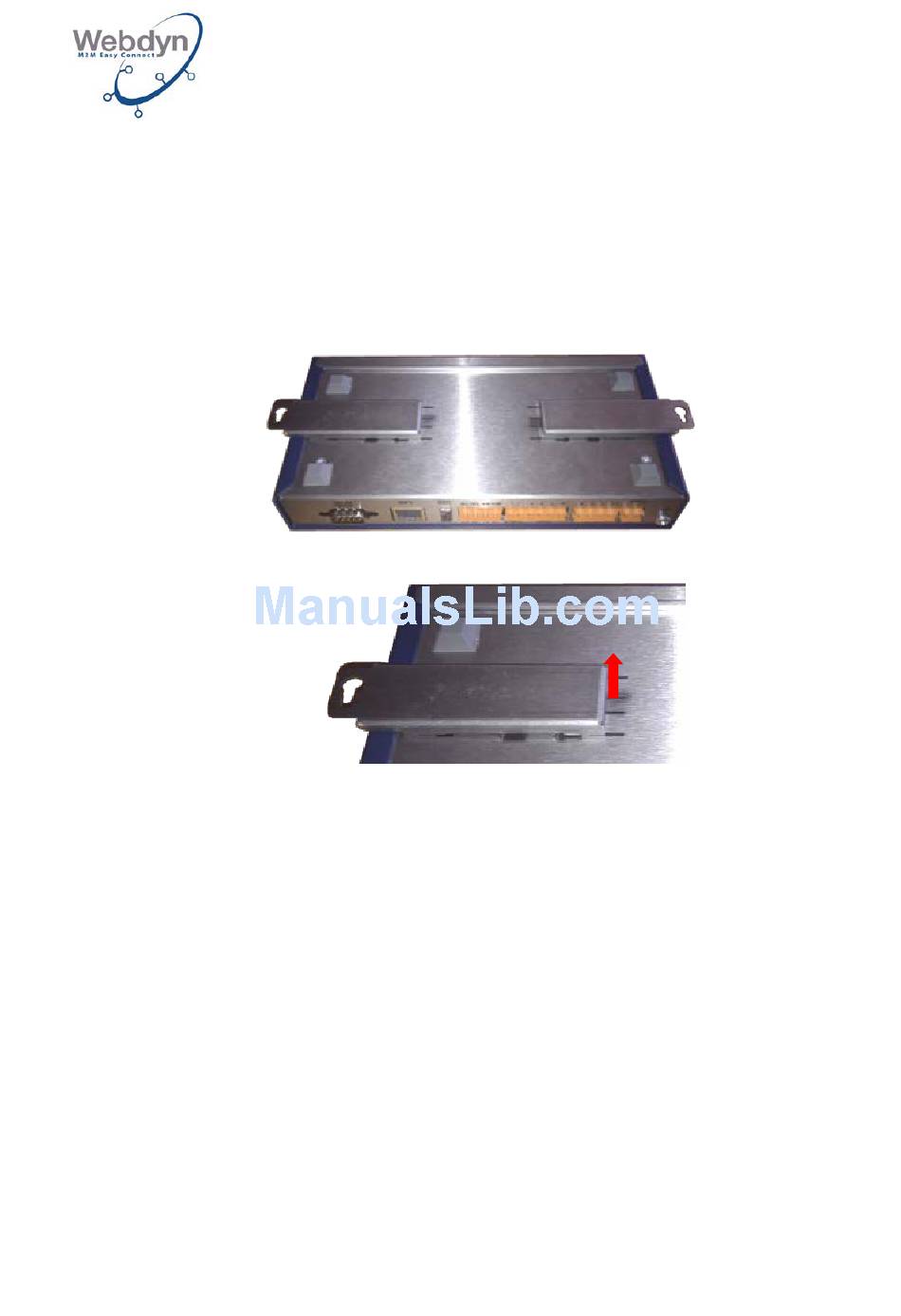

1. Mount the fastening kit onto the gateway:
2. Lift the 2 tabs in order to lock the fastenings into position:
3. Determine the gateway's position and mark the drill holes using a
pencil.
4. Drill the holes (diameter: 6 mm) in the locations marked and insert the
pins.
5. Use screws to fasten the WebdynRF to the wall.
4.5
Mounting the remote GPRS/GSM antenna
Only in the event of ordering the following accessory: Remote dual-band GPRS
antenna with 5 m or 20 m of cable (Ref.: AC0201-01 or AC0201-02).
WebdynRF – Installation Manual - Version 1.0
