3.3

Defining the VM-114H4C

This section defines the VM-114H4C.

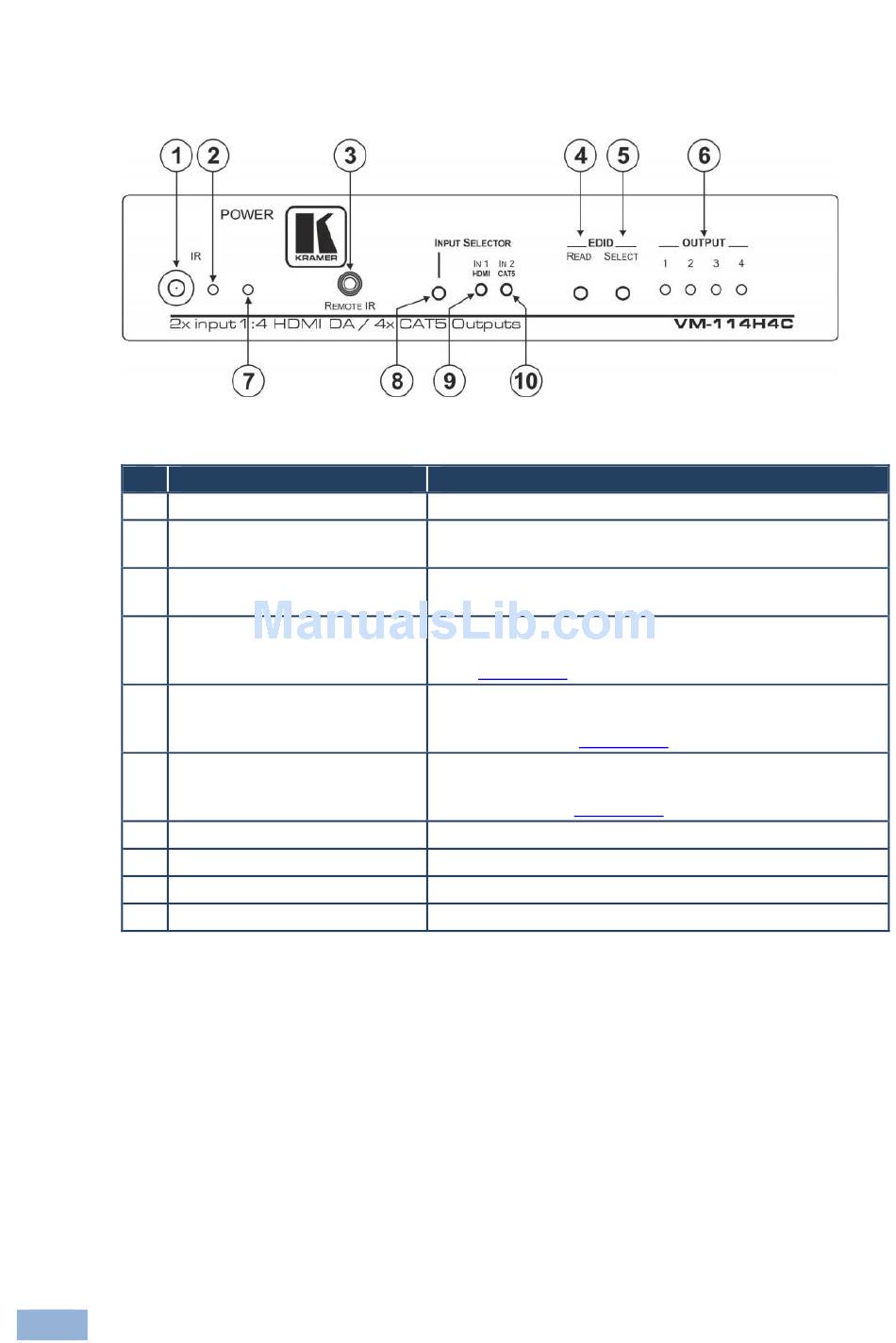

Figure 1: VM-114H4C Front Panel

# Feature
1 IR Remote Control Sensor
2 IR LED
3 REMOTE IR 3.5mm Mini
Jack
4 EDID READ Button
5 EDID SELECT Button
6 OUTPUT LEDS (1-4)
7 POWER LED
8 INPUT SELECTOR Button
9 IN1 (HDMI) Input LED
10 IN2 (CAT5) Input LED
6
Function
Sensor for the remote control IR transmitter
Lights yellow when receiving signals from the IR
remote control transmitter
Connect to a remote infrared sensor
Press (when one of the input LEDs is flashing to
indicate a selected input) to read the selected EDID
(see Section 5.1)
Press repeatedly to cycle through the inputs to select
an input from which to read the EDID. The relevant
LED flashes (see Section
The relevant LED lights green when an acceptor is
connected to the output. Also lights or flashes during
EDID setup (see Section
Lights green when the unit receives power
Press to select an input. The relevant input LED lights
Lights green when HDMI input 1 is selected
Lights green when the TP input 2 is selected
5.1)
5.1)
VM-114H4C - Overview
