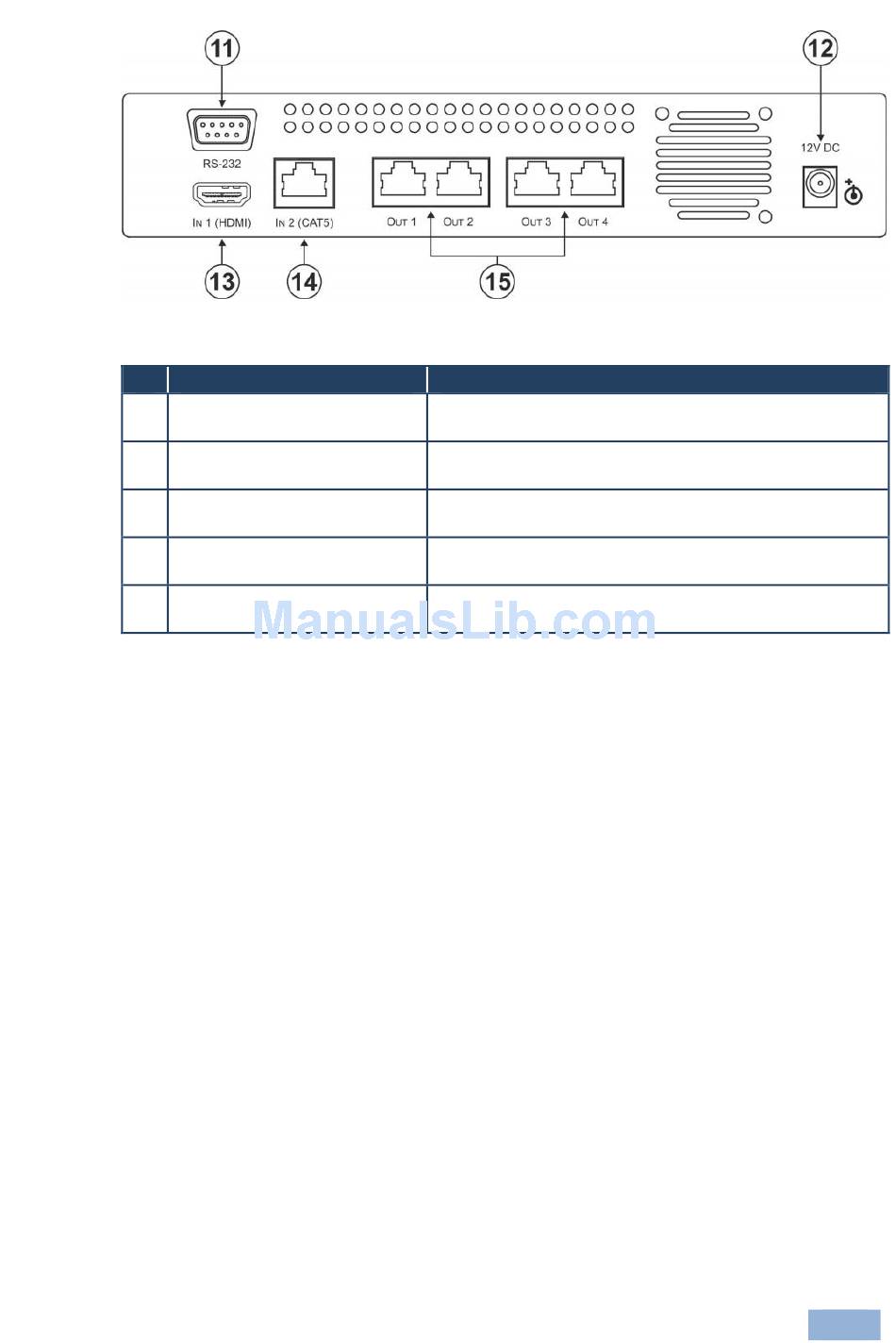

Figure 2: VM-114H4C Rear Panel
#
Feature
11
RS-232 9-pin D-sub (F)
Connector
12
12V DC Power Connector
13
IN1 (HDMI) Input HDMI
Connector
14
IN2 (CAT5) Input RJ-45
Connector
15
TP RJ-45 Output Connectors
(1-4)
VM-114H4C - Overview
Function
Connect to a PC or remote controller
Connect to the +12V DC power adapter, center pin
positive
Connect to an HDMI source
Connect to a TP source (for example, PT-571 HDMI
Line Transmitter, VM-114H2C or VM-114H4C)
Connect to the TP acceptors (for example, PT-572+
HDMI Line Receiver, VM-114H or VM-114H4C)
