Kramer VM-114H2C Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
VM-114H2C 2 Input 1:4 HDMI DA/2x CAT5 Outputs
IR remote control transmitter with batteries

IMPORTANT NOTICE!

We highly recommend using only Kramer UNIKAT cables with these products. If using 3
shield must be soldered to the connectors for the products to function properly. Do not use any jumpers, unshielded wall plates or mid-
span cable connections. These extenders are not compatible with HDBaseT technologies. Prior to signal extension, ensure that the
extension line cable is lying straight and not coiled.

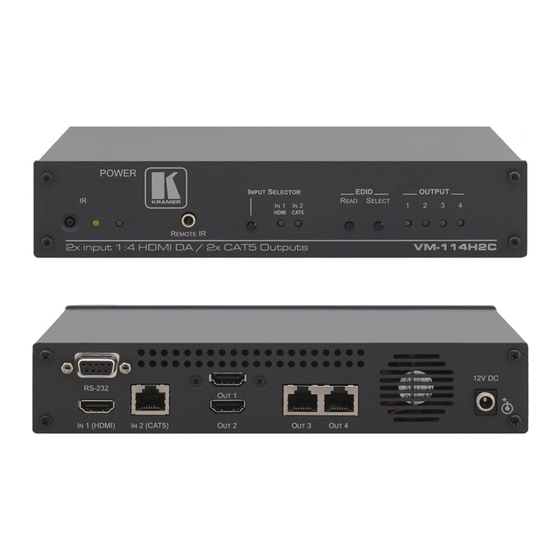

Step 2: Get to know your VM-114H2C
# Feature
1 IR Remote Control Sensor
2 IR LED
3 REMOTE IR 3.5mm Mini Jack
4 EDID READ Button
5 EDID SELECT Button
6 OUTPUT 1~4 LEDS
7 POWER LED
8 INPUT SELECTOR Button
9 IN1 HDMI LED
10 IN2 CAT5 LED
11 RS-232 9-pin D-sub (F) Connector
12 12V DC Power Connector
13 IN1 (HDMI) Input HDMI Connector
14 IN2 (CAT5) Input RJ-45 Connector
15 OUT 1, OUT 2 HDMI Connector
16 OUT 3, OUT 4 TP RJ-45 Connector
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
VM-114H2C Quick Start
VM-114H2C Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/VM-114H2C
upgrades are available.
Function
Sensor for the remote-control IR transmitter
Lights yellow when receiving signals from the IR remote control transmitter
Connect to a remote IR sensor
Press (when one of the output LEDs is flashing to indicate a selected output) to read the
selected EDID
Press repeatedly to cycle through the outputs to select from which one to read the EDID.
The relevant LED flashes
The relevant LED lights green when an acceptor is connected to the output
Also lights or flashes during EDID setup (see Section 5.2)
Lights green when the unit receives power
Press to select an input. The relevant IN 1 HDMI/IN 2 CAT5 LED lights
Lights green when HDMI input 1 is selected
Lights green when the TP CAT 5 input 2 is selected
Connect to a PC or remote controller
Connect to the +12V DC power adapter, center pin positive
Connect to an HDMI source
Connect to a TP source
Connect to the HDMI acceptors
Connect to the TP acceptors
VM-114H2C for the first time.
to download the latest user manual and check if firmware
1 Set of rack ears
1 Power supply (12V DC)
rd
party shielded CAT-6A cables, both ends of the
P/N:
2900- 301224QS
4 Rubber feet
1 Quick start guide
Rev:
2
